Chapter 2 Product Overview

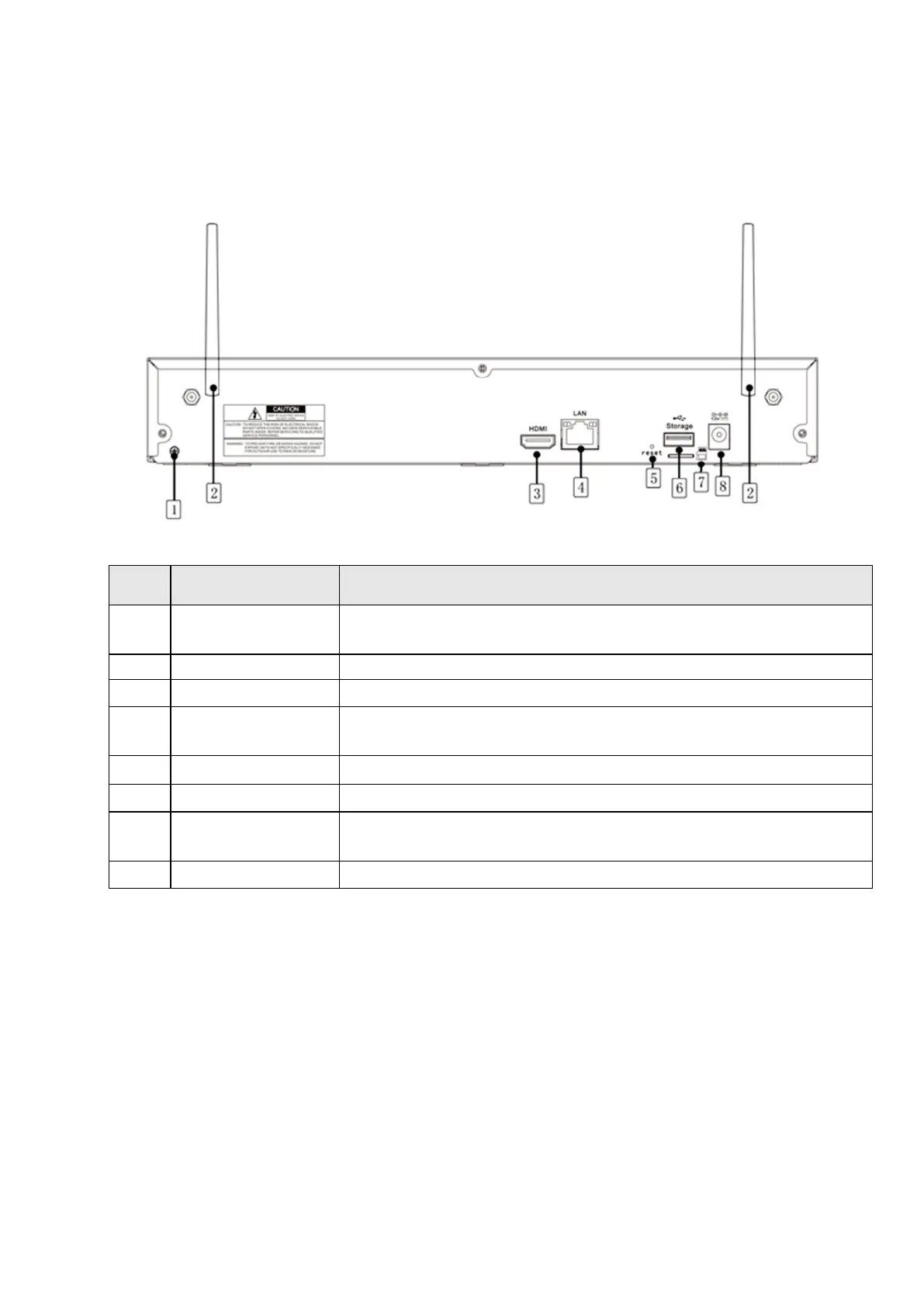

2.1 Rear Panel
# Physical interface Connection
1 Ground connection
A terminal to connect a separate ground cable.
* Make sure to add a ground cable in order to use the equipment safely.
2 Antenna Receive signals from wireless cameras.
3 HDMI Connect with HDMI display devices such as a PC monitor.
4
WAN:(RJ45)
Network port
Connect with WAN via an Ethernet cable.
5 Reset Press 3 seconds to reset password; press 10 seconds to load to default
6 USB port Connect with USB flash disk or USB mouse
7 SD card slot
Plugin SD card as a hard disk to record. When the hard disk is working,
the SD card will not work.
8 Power port Connect with the DC12V 2A power supply included with the device.
