©2023 Spectra Precision | All Rights Reserv ed

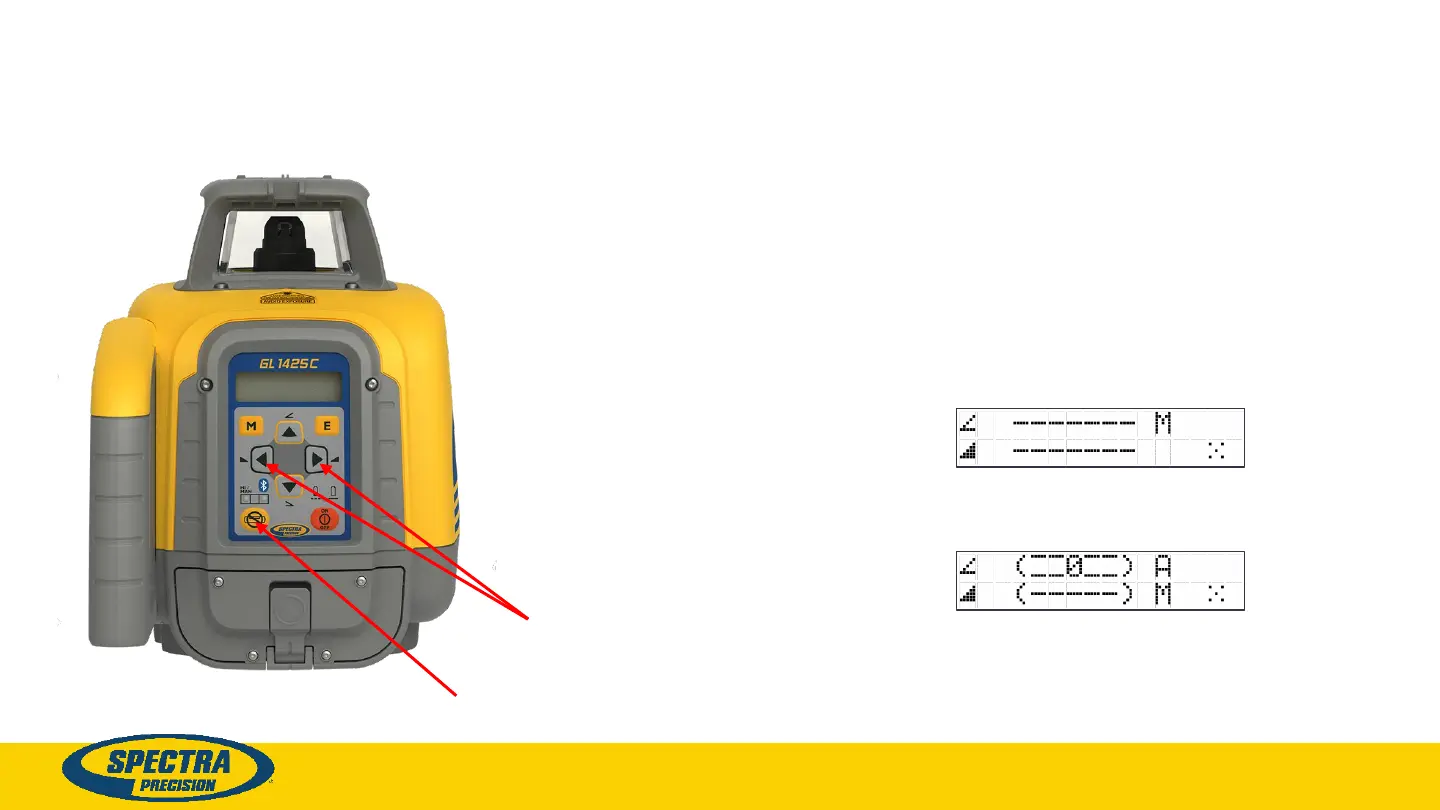

Line Scan Vertical Setup
Manual button
When setting up the unit vertical, Line Scan centers the rotor horizontally and can be used
to align the laser reference to a deired line position. Line Scan can be activated as a
standard feature as well as using the menu.
Press the left/right arrow buttons simultaneously to start the Line Scan while the rotor
checks the limits of the X axis (beep) and stops at the center position.
Press the manual button to stop the rotor movement.
Result: the laser is now in manual mode.
Fine corrections left and right can be done using the left/right arrow buttons.
Press the manual button again to change the laser back to automatic mode.
Left/right arrow buttons
