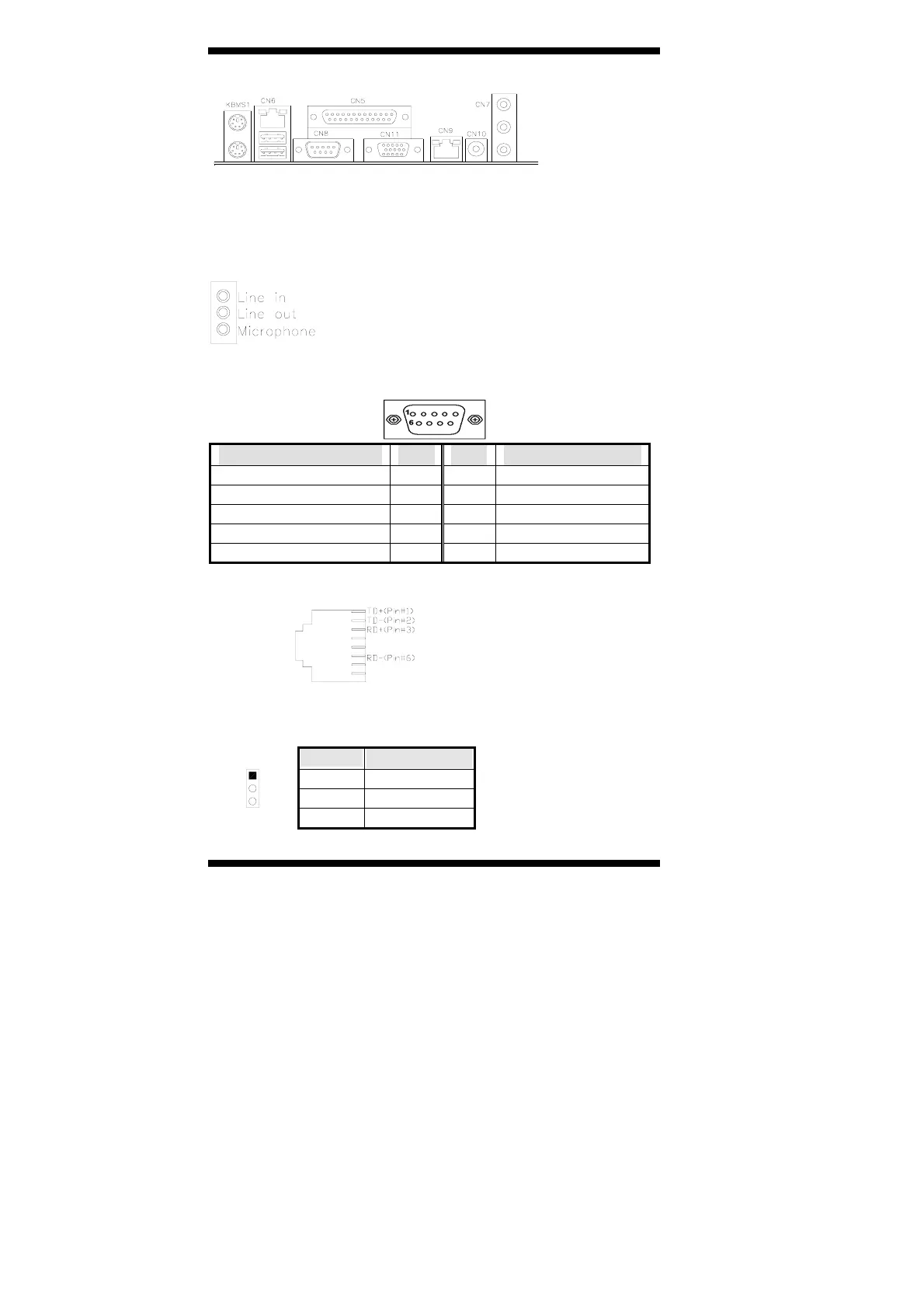

CN6: RJ45 and 2 USB Ports
CN6 is a stacked connector with RJ45 on top and 2 USB ports at the
bottom.
CN7: Line Out, Line In, Mic Connector
CN8: COM1 Serial Port
CN8 (COM1) is a DB-9 connector serial port.
Signal Name Pin # Pin # Signal Name
DCD, Data carrier detect 1 6 DSR, Data set ready
RXD, Receive data 2 7 RTS, Request to send
TXD, Transmit data 3 8 CTS, Clear to send
DTR, Data terminal ready 4 9 RI, Ring indicator
GND, ground 5 10 Not Used
CN9: RJ45 Connector for LAN1 (10/100)
CN10, J12: TV out Connector (RCA Jack/CN10 and 3-pin
Header/J12)
Pin # Signal Name
1 Y
2 Ground
3 C
To Next Page
