Speedfit JGSTAT2W - Installation - Hot Water Timer Wiring

Power Connections 230v AC
If hot water is part
of a group then the
communication
connection must be
connected to group 1.
18
JGSTAT2 Instruction Manual

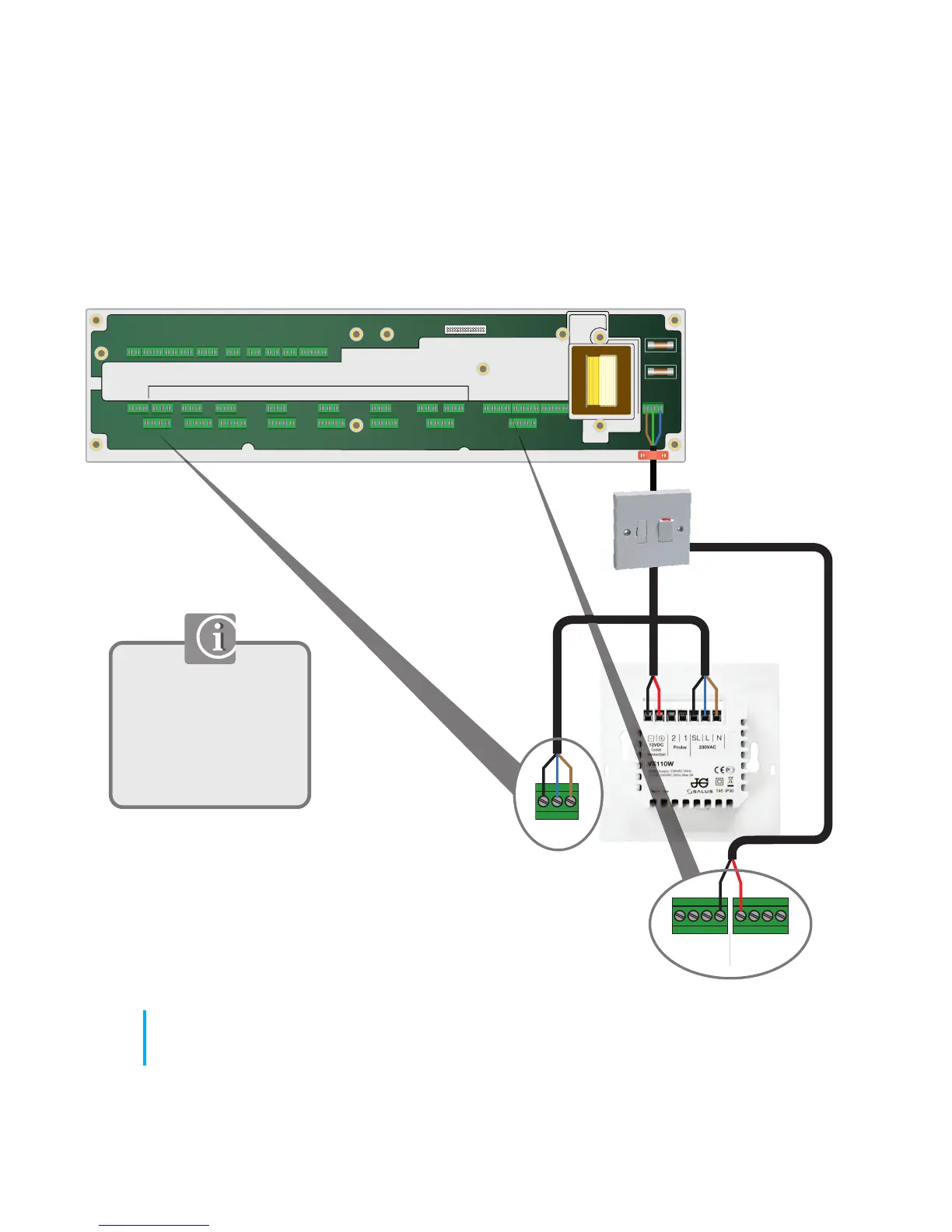

Installation - Hot Water Timer Wiring
ZONE 1
SL N L SL N L SL N L SL N L SL N L SL N L SL N LSL N L
ZONE 2 ZONE 3 ZONE 4 ZONE 5
ZONE 6 ZONE 7
ZONE 8
5 x 20mm
5 x 20mm
SL NL
GROUP 2 GROUP 1
---- ++++
Optional
communication
connection 12v DC
