Option 1 - Page 09. Unit is configured as individual PRT.
Option 2 - Page 10. Unit is configured as a Group Control Thermostat used to control
a group(s) of unit(s) configured as Group Thermostats.
Option 3 - Page 10. Unit is configured as a Group Control Thermostat used to control a
group(s) of Digital Stat(s) configured as Group Thermostats.
The systems below, although not exhaustive show the main
options. The maximum number of groups per JGWC Wiring
Centre is two. The group selection communication cable
must correspond to the group terminals on the JGWC Wiring
Centre. Please refer to the JGWC Instruction Manual.
All digital variants can be
configured from JGSTAT2. Groups
must have a Group Control
Thermostat. 1 or 2 groups can be
used per wiring centre. HW Timer
can be stand alone or part of a
group. If using HW Timer as part
of a group it must be in Group 1.
08
JGSTAT2 Instruction Manual

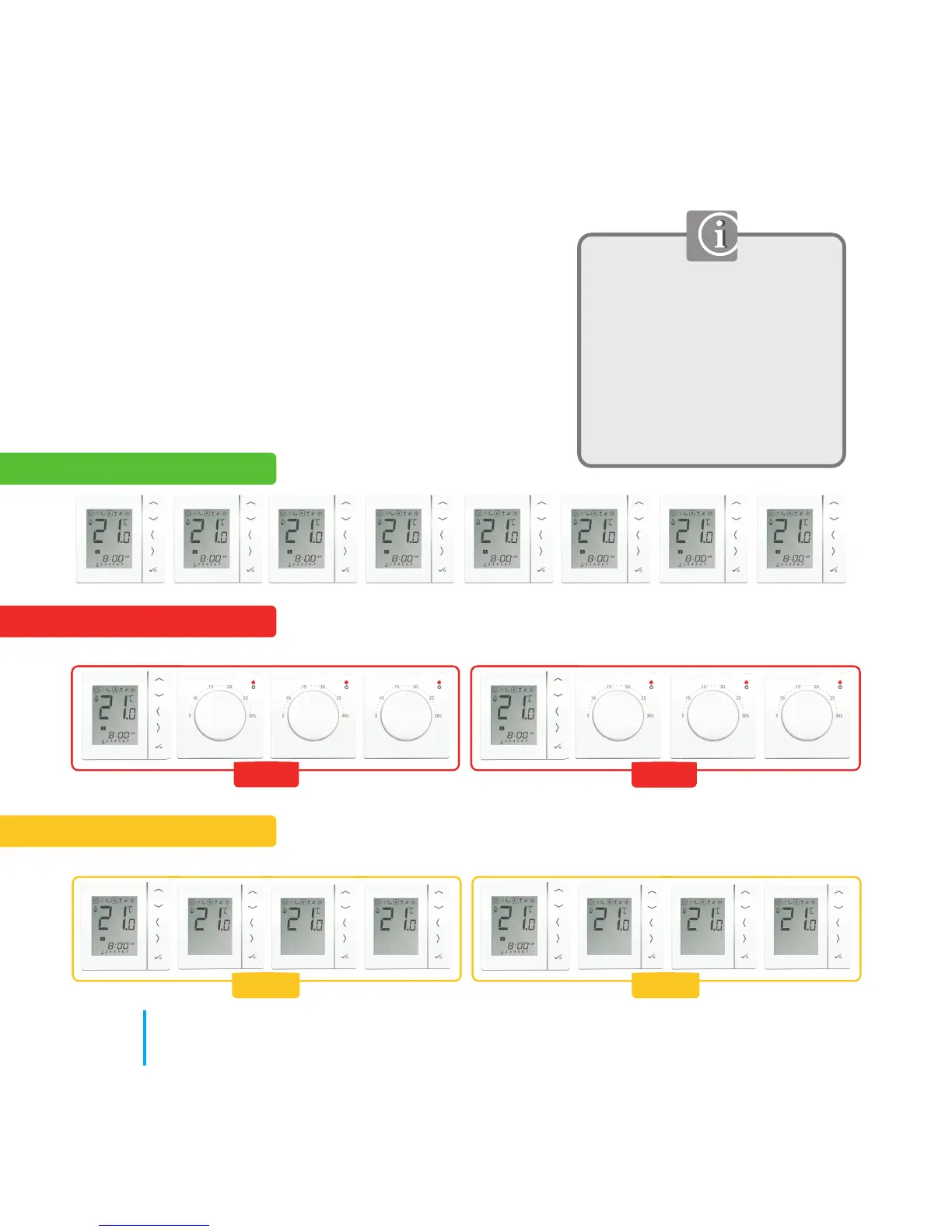

System Overview - Options
Group 1
Group 2
Group 1
Group 2
To Next Page
