SpeedTech Lights RAPTOR-X - Page 7

7 SpeedTech Lights, Inc © 2019
RAPTOR
®
-
X
VISOR LIGHT BAR
Q-3070 Universal Mounting Bracket Installation

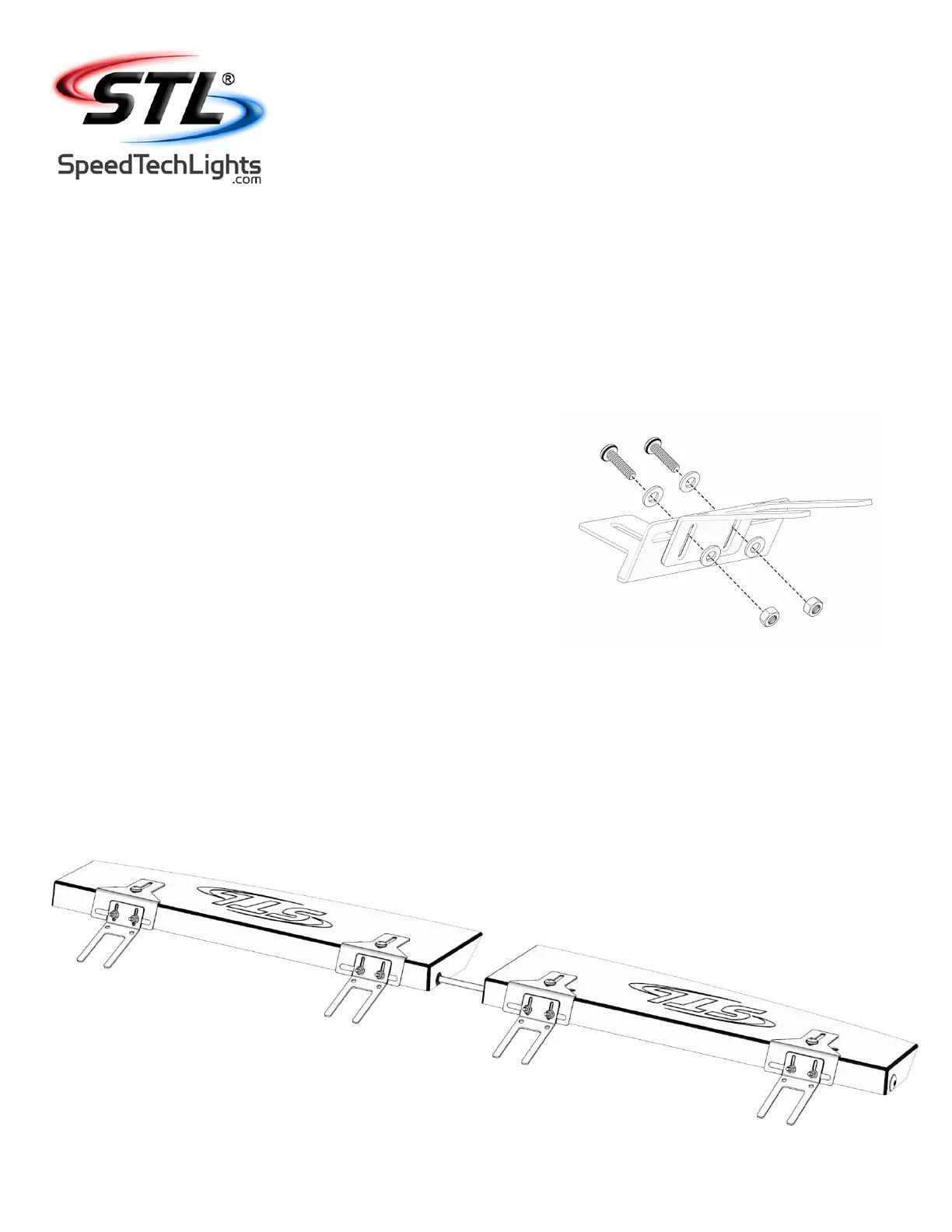

Base Bracket and Q-3070 Universal Visor Bracket Assembly
To attach the base bracket and visor bracket, you will need the following for each of the (4) assemblies:
• (2) Phillips pan head screws
• (4) Flat washers
• (2) Split lock washers
• (2) Hex nuts
Note: The Universal Visor Bracket comes with (2) sets of forked visor
brackets. Choose the length of fork that will work best to t your vehicle.
1. Take both brackets and overlap the openings.
2. Insert (2) Phillips pan head screws through the base
bracket opening.
3. On the other end, insert (2) at washers, (2) split lock
washers, and (2) hex nuts to secure.
NOTE: Do not fully tighten at this point as adjusting
will need to be done.
4. Repeat Steps 1 - 3 for each assembly. There will be a
total of (4) assemblies.
