RAPTOR
®
-
X
VISOR LIGHT BAR
Spacer Installation
NOTE: Spacers are included to assist in adjusting the Visor Light Bar to the windshield for any base bracket
assembly. Spacers are not intended for use with Vehicle Specic Brackets that mount directly to Raptor base.

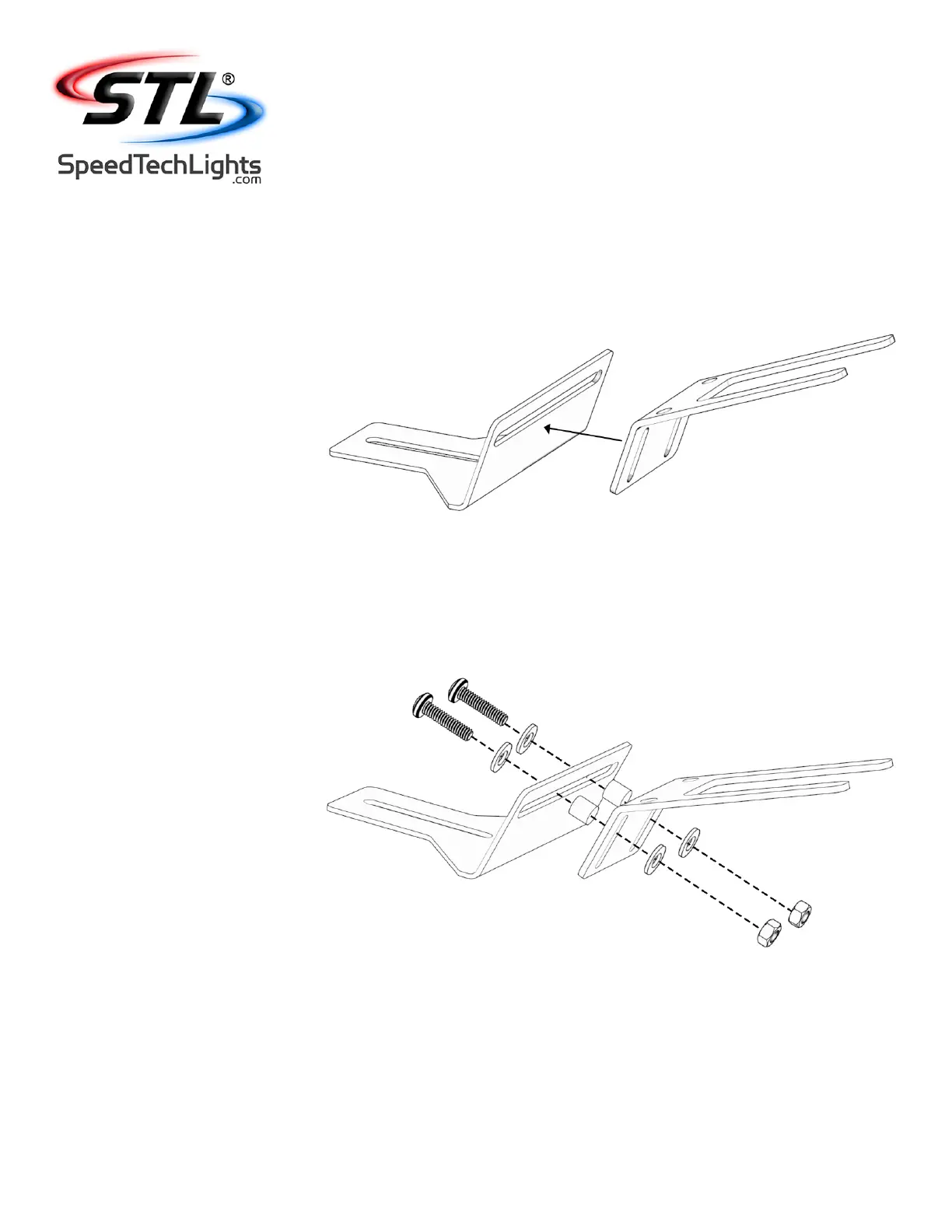

1. Take both brackets and overlap the openings.
2. Insert (2) Phillips pan head screws through the base
bracket opening.
3. Select necessary size spacer and place spacer onto
each screw between the brackets.
4. On the other end, insert (2) at washers, (2) split lock
washers, and (2) hex nuts to secure.
NOTE: Do not fully tighten at this point as adjusting
will need to be done.
5. Repeat Steps 1 - 4 for each assembly. There will be a
total of (4) assemblies.
