RAPTOR

VISOR LIGHT BAR

Q-302 / Q-304 Visor Bracket Assembly

NOTE: These Vehicle Specic Visor brackets do not require a base bracket assembly. These brackets attach

directly to the mounting holes on the Raptor Light Bar base.

For this example, the Q-304 Vehicle Specic Brackets will be used.

NOTE: Hardware quantity used will vary based on single or double mounting holes.

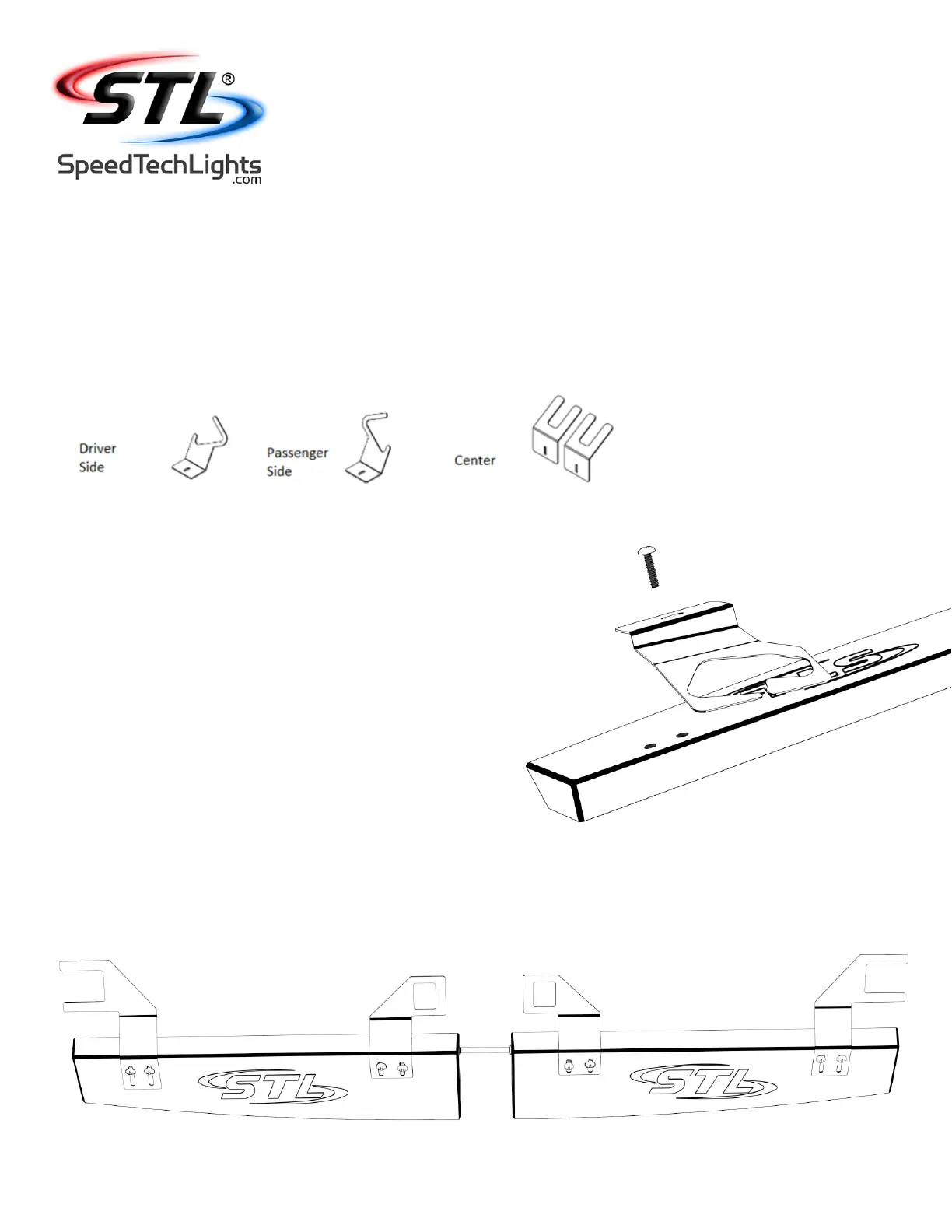

1. Take (1) Driver Side Vehicle Specic visor bracket and

mount to light bar directly to the Driver side outter most

hole.

NOTE: Do not fully tighten at this point as adjusting

will need to be done.

2. Repeat Step 1 for the Passenger Side Vehicle

Specic visor bracket.

3. Repeat Step 1 for the (2) Center Vehicle Specic visor

brackets.
