SpeedTech Lights RAPTOR-X - Page 10

Center Center Passenger SideDriver Side
Base
10 SpeedTech Lights, Inc © 2019
RAPTOR
®
-
X
VISOR LIGHT BAR

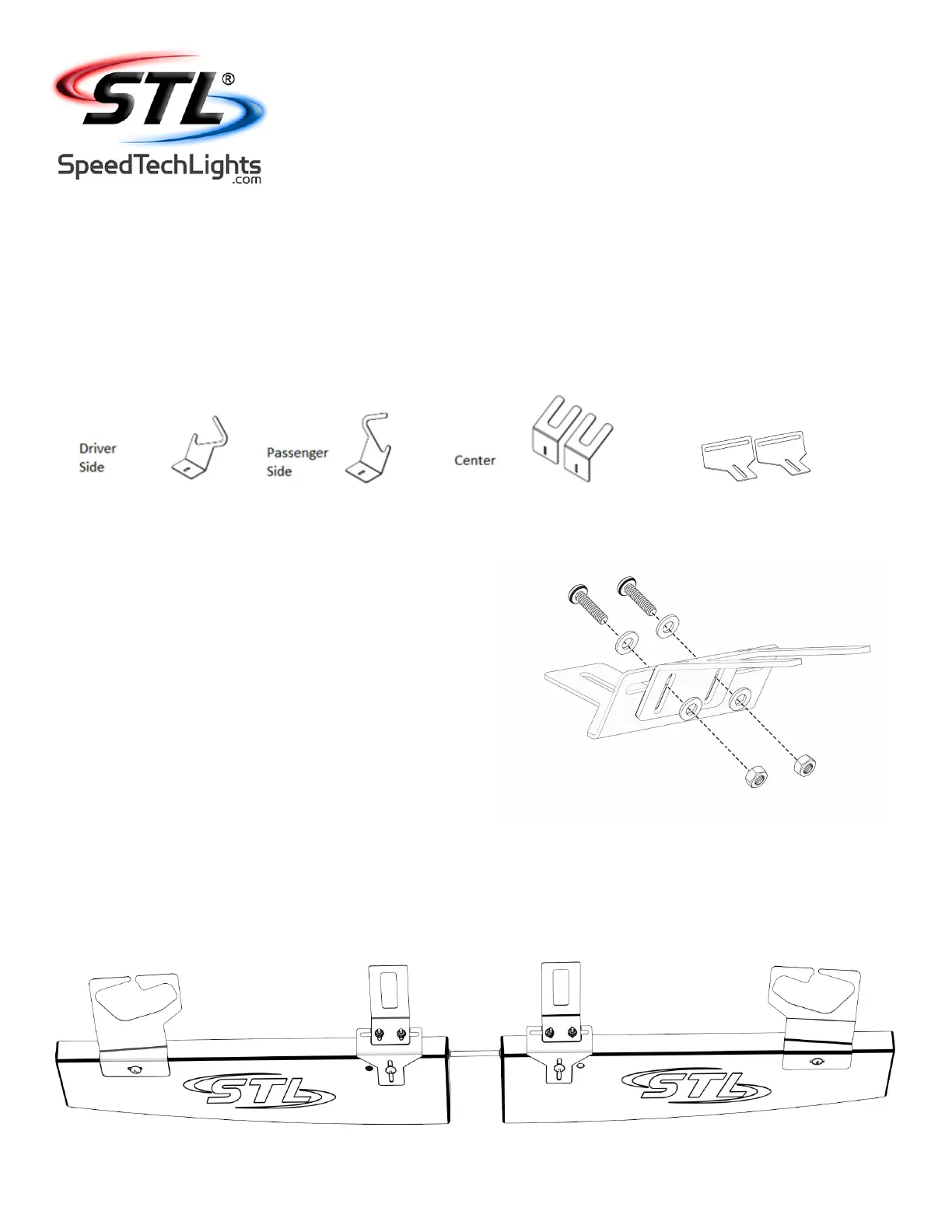

Base Bracket and Q-301 Visor Bracket Assembly
NOTE: This assembly is very similar to the Universal Bracket assembly. The only dierence is the Center visor
brackets will be used instead of the Universal forked visor brackets to pair with the base brackets. Also the Driver
and Passenger side brackets will be mounted directly to the body of the bar without the use of base brackets.
For this example, the Q-301 Vehicle Specic Brackets will be used.
NOTE: Hardware quantity used will vary based on single or double mounting holes.
1. Take (1) base bracket and the Center Vehicle Specic
visor bracket and overlap the openings. Insert (1) Phillips
pan head screw and (1) at washer through visor bracket
opening. On the other end, insert (1) at washer and (1)
hex lock nut to secure both brackets together.
NOTE: Do not fully tighten at this point as adjusting will
need to be done.
2. Repeat Step 1 for the other Center Vehicle Specic
visor bracket. There will be a total of (2) assemblies.
3. Take (1) Driver Side Vehicle Specic visor bracket and
mount to light bar directly to the Driver side outter most
hole.
NOTE: Do not fully tighten at this point as adjusting will
need to be done.
4. Repeat Step 3 for the Passenger Side Vehicle
Specic visor bracket.
