RAPTOR
®
-
X
VISOR LIGHT BAR
Base Bracket and Q-300 / Q-303 / Q-305 / Q-306 Visor Bracket Assembly
NOTE: This assembly is very similar to the Universal Bracket assembly. The only dierence is the Vehicle
Specic visor brackets will be used instead of the Universal forked visor brackets to pair with the base brackets.
For this example, the Q-303 Vehicle Specic Brackets will be used.
NOTE: Hardware quantity used will vary based on single or double mounting holes.

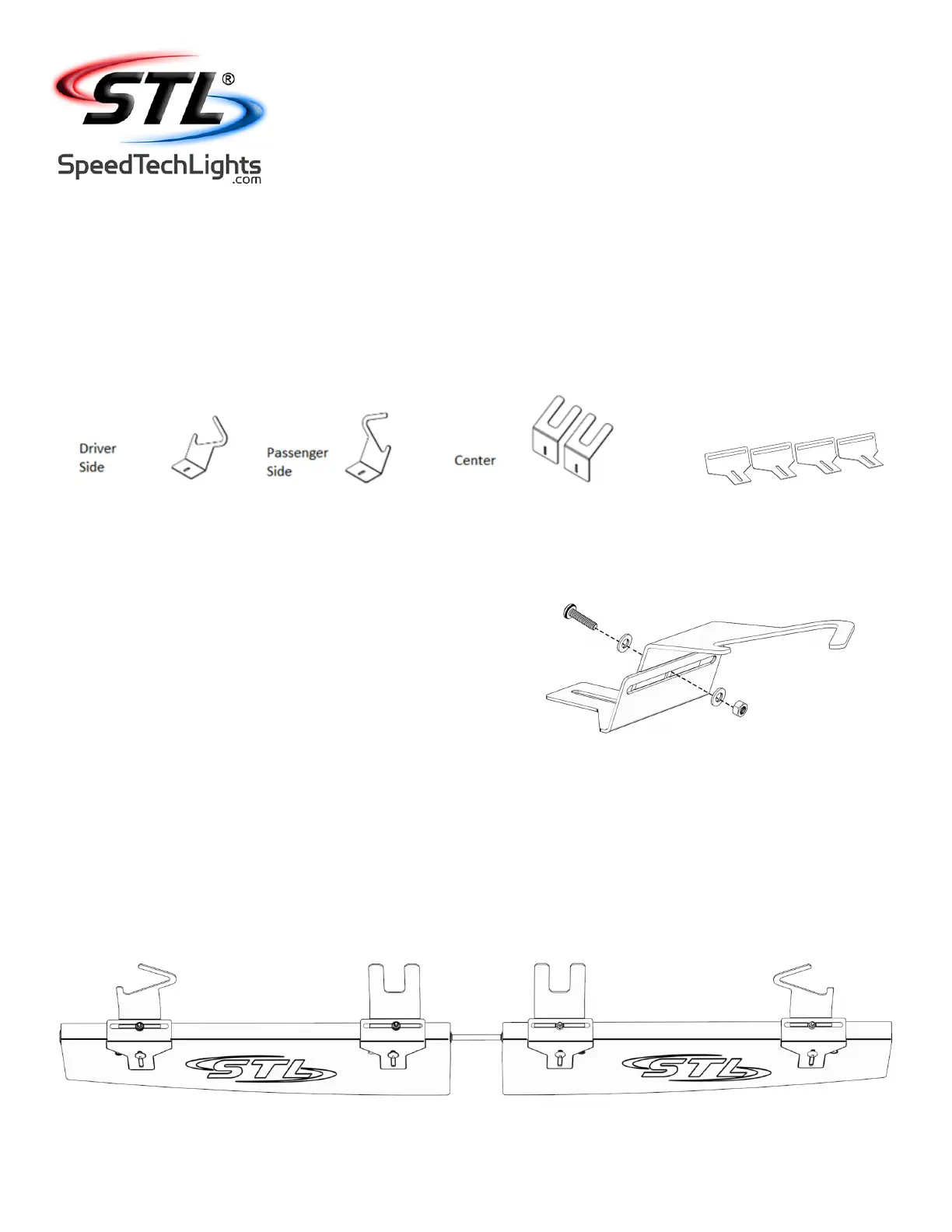

1. Take (1) base bracket and the Driver Side Vehicle
Specic visor bracket and overlap the openings. Insert
(1) Phillips pan head screw and (1) at washer through
visor bracket opening. On the other end, insert (1) at
washer and (1) hex lock nut to secure both brackets
together.
NOTE: Do not fully tighten at this point as adjusting
will need to be done.
2. Repeat Step 1 for the Passenger Side Vehicle
Specic visor bracket and the (2) Center Vehicle Specic
visor brackets. There will be a total of (4) assemblies.
