SPHINX MYTH 11 - Rear Panel

SPHINX Myth 11
5

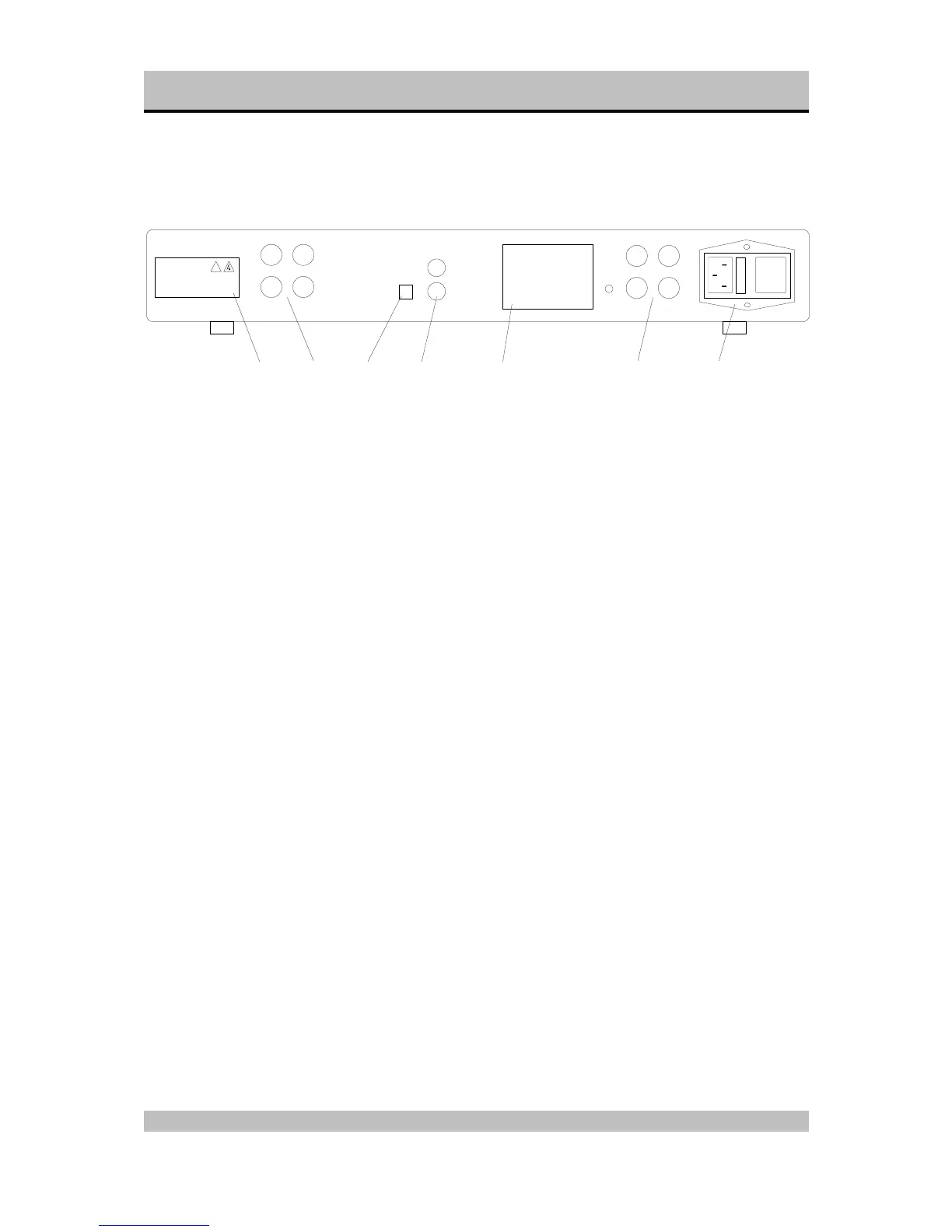

Rear panel
1. Warning!: Hier vindt u belangrijke
waarschuwingstekens en -tekst die betrekking
hebben op de veiligheid van dit apparaat
2. OUTPUT L: To connect the cable from the left
loudspeaker:
red +
black -
3. CONTROL IN: To connect the optical cable
from another Sphinx component like a pre-amp.
4. INPUT L & R: To connect the cinch cable from
the left – and right output of the signal source.
5. Manufacturer's label: This shows important
data for the component, such as serial number
and mains power voltage.
6. OUTPUT L: To connect the cable from the left
loudspeaker:
red +
black -
7. AC POWER: Connect the power amp to a
mains outlet (230 - 240 VAC).
The mains fuse is placed behind the cover and
at the right there is the mains power switch.
Warning!
!
Do not open!
High voltage inside!
Do not expose this unit
to rain or moisture.
ACVoltage:
220V/60Hz.
Max.Power: 600 W
Made in The Netherlands
Manufactured by :
Sphinx Laboratories
Fuse:
3,15AT
