3.0 RECOMMENDATIONS FOR THE CORRECT USE OF THE DEVICE
Please check before the switching-on of the device whether oil is present in the vacuum pump:
If oil is missing fill it up to the level which has to be visible with the adequate cap.
Use exclusively mineral oil for vacuum pumps Type AV68 (art. AV68I).
3.1 INSTALLATION
The device has to be transported and set-up in vertical position. Tilting the device can cause exit of oil from
the vacuum pump and the compressor. The device may only be used on even floors. It is not advisable to use it
on unknown area outside the workshop.
3.2 PREPARATION OF THE STATION

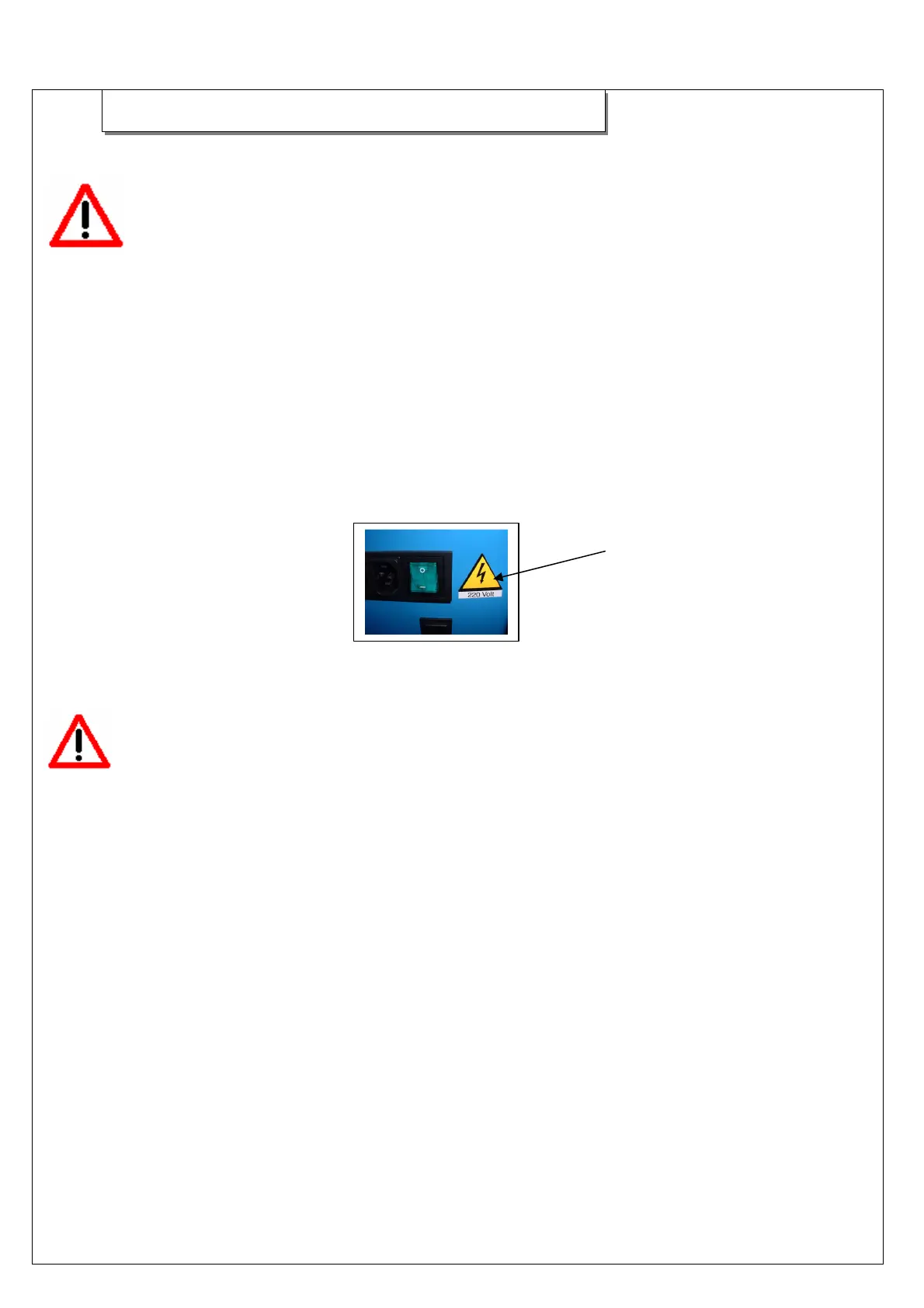

Assure yourself before the starting of the station, that the net tension is as shown on the shield, which is
displayed close to the socket of the switch.
IMPORTANT
It is advised to adhere absolutely strict to the security features given above. They are given
for the protection of the personnel, which is using the systems and the cooling liquid/freon
under pressure
3.3 PERFORMABLE WORKS
The OK CLIMA is capable to perform the following phases: recovery, recycling, vacuum and charging of air
conditioning plants for vehicles and industrial vehicles, which contain freon R134A. The
producer denies
every responsibility which derives from the forbidden use of other Freon.
3.4 SECURITY DEVICES
- Security valve, calibrated to 16 bar fuer the internal bottle.
- thermical protection for the compressor against surcharge (within the compressor)
- electronic alarm for the filling of additional l’80% of the capacity (ERR4) and the minimum
Gas amount (ERR1) which is necessary for the performance of the recharge (< 1Kg ).
- Alarm on handling error (ERR5) in case of the try of a performance of the vacuum with the plant under
pressure..
- Control display of the level of oil in the pump.
- Pressure control of the minimal pressure (P = 0) for the elimination of the compressor recovery.
- Vacuum meter for automatic leak control.
- Electro valve for complete automatism of the functions.
- switch plan display LCD with 2 lines and with electronic protection (PTC).
- Security protection on the receipt module.
- automatic bottle heating (Use in winter)
