FOR THE PREPARATION OF THE USE OF THE STATION WE REFER TO THE PHOTO ON PAGE 5.

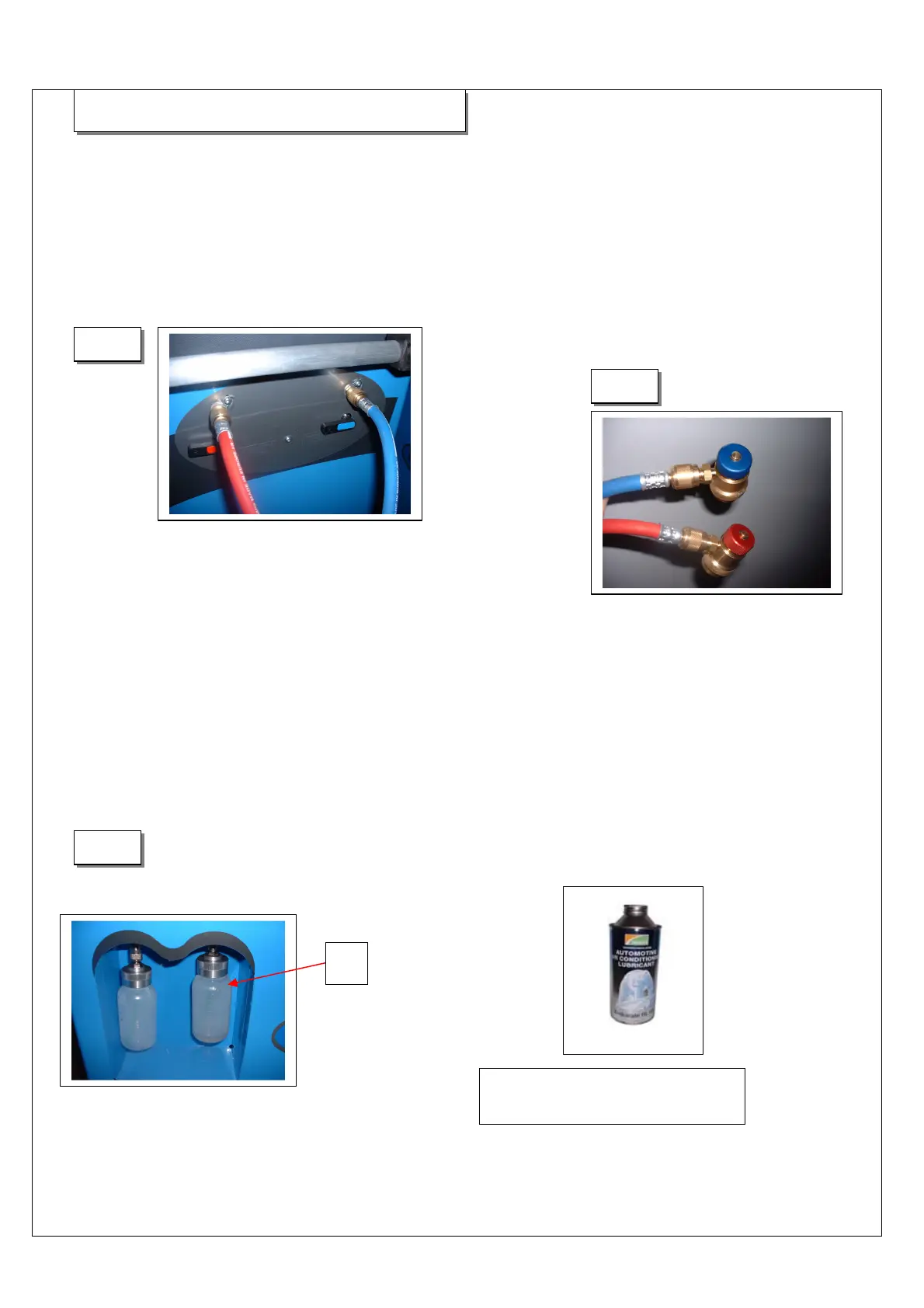

1- Install the tubes onto the high- and low pressure coupling (I-L) as described in fig.7.
2- Screw the quick couplings onto the tubes (blue = low pressure – red = high pressure).
3- Close the high and low pressure cocks (M-N).
4- Insert the plug into the socket and turn the general switch (S) in order to switch-on the station.
5- Read the amount of cooling liquid from the display, which is available within the internal bottle.
6- Refill the container with fresh oil (P) with the adequate synthetic oil for cooling (optional).
- ATTENTION: The heating of the bottle functions automatically.
CHAP.5 PREPARATION OF THE STATION
Fig. 7
Fig. 8
Fig.
9
Synthetic oil for cooling R134
(optional)
P
