11
Transmission Tubing
6”
U
U
I
J
W
B
C
P
Q
O
G
H
S
L
S
D
K

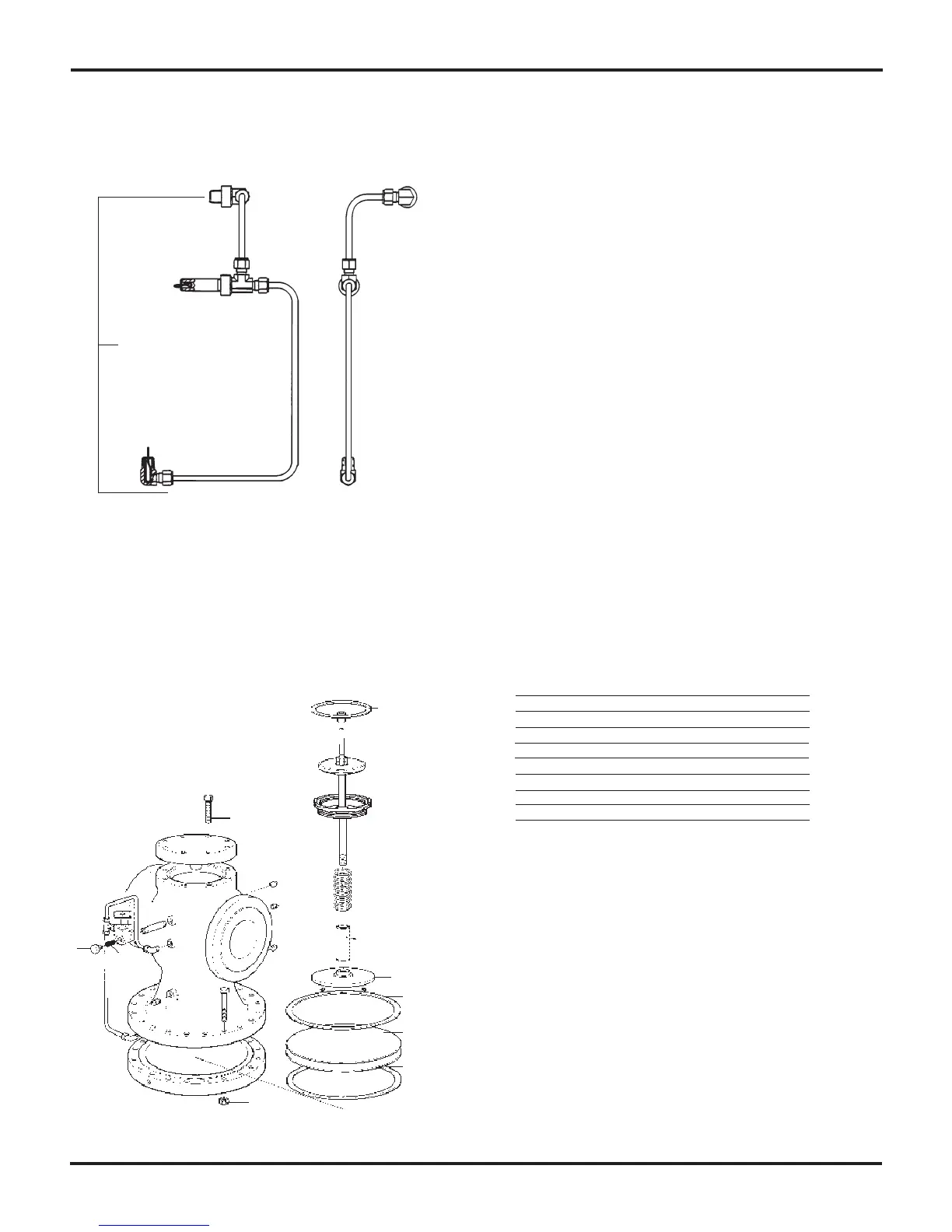

Spare Parts – Main Valve
Main Valve Spring O, S
& Lower Diaphragm Cover Gaskets
Diaphragm Plate & Set Screws K, D
Transmission Tubing with Fittings U*
Diaphragms (2 per set) L*
Gasket Kit C, S, W*
Head, Stem & Seat Assembly P, Q, C
“S” Head, Stem & Seat Assembly P, Q, C
Screen Assembly I, J
Cover Bolt Kit B
Diaphragm Case Bolt Kit G, H
Spares Kits
* A standby set of spares for general maintenance
purposes includes all spares marked
