Spirax Sarco AEL52213 - Page 19

IM-P358-26 CH Issue 1
19
3.6.3 Models with positioner cards (2 - 10 V signal)

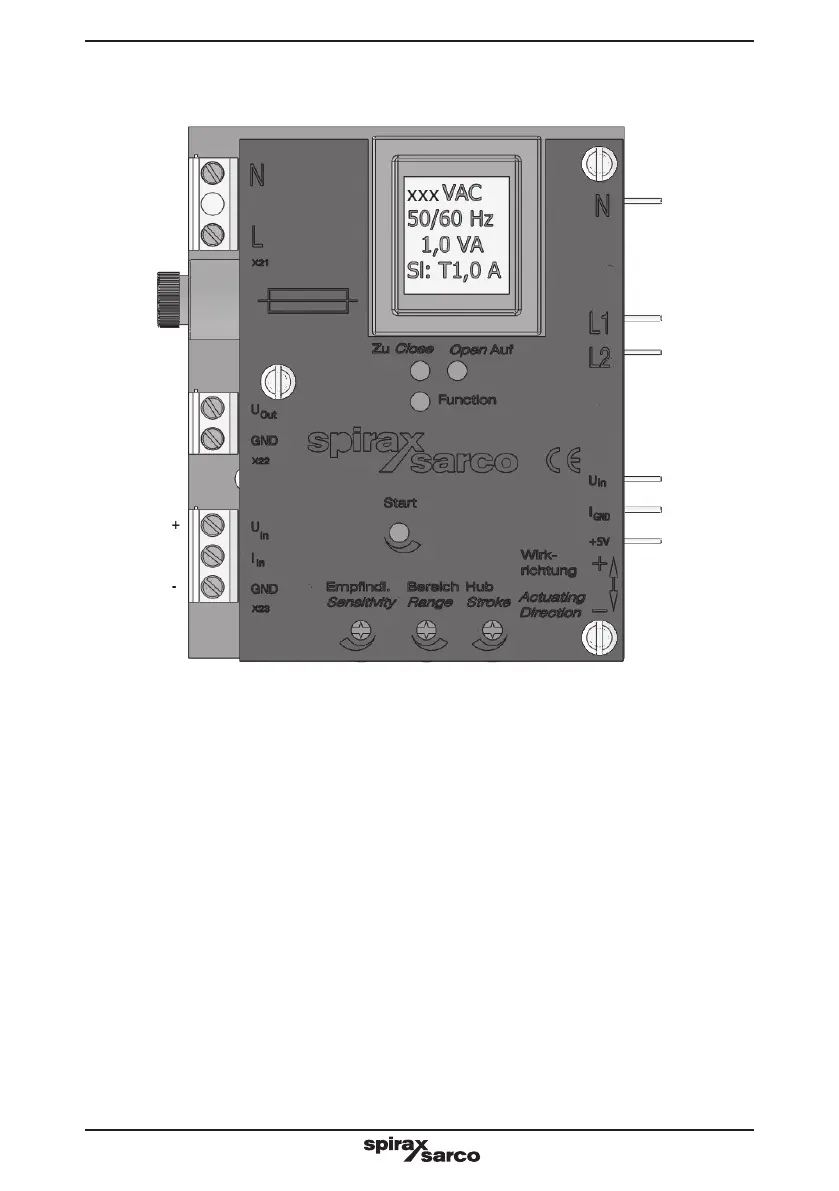

Fig. 17 2 - 10 V connection details (Note: GND connection is isolated from the mains and earth).
Neutral
Feedback
position
0 - 10V
signal
x5 / 1
x5 / 4
x5 / 2
x4 / 1
x4 / 2
x4 / 3
