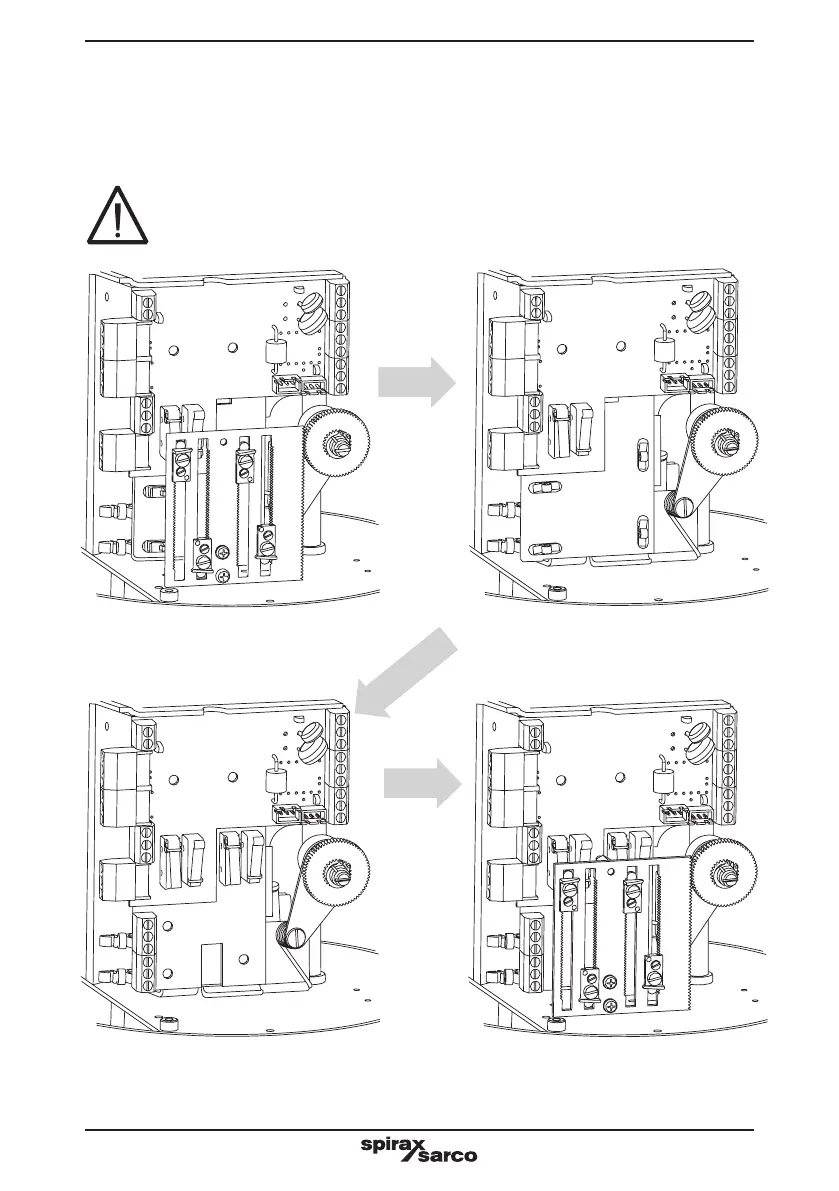

Fig. 18
3.6.4 Fitting an additional auxiliary switch card:
- Remove the switching plate (Figures 18 and 19).
- Mount the auxiliary switch card (Figure 20).
- Remount the switching plate (Figure 21).
Ensure the mains power is isolated.
Fig. 19
Fig. 20 Fig. 21
Unmount
the
switching
plate
Mount
the
switching
plate
Mount the
auxilliary switches card
