IM-S02-13-IN Issue 1310
FT14 Ball Float Steam Trap ½" (DN15) to 1" (DN25)
28
18
Main valve assembly
Note: Item 28 is required for the DN25 (1") size only
17 3
Air vent
assembly
2 6
5
11 10
7
8 3

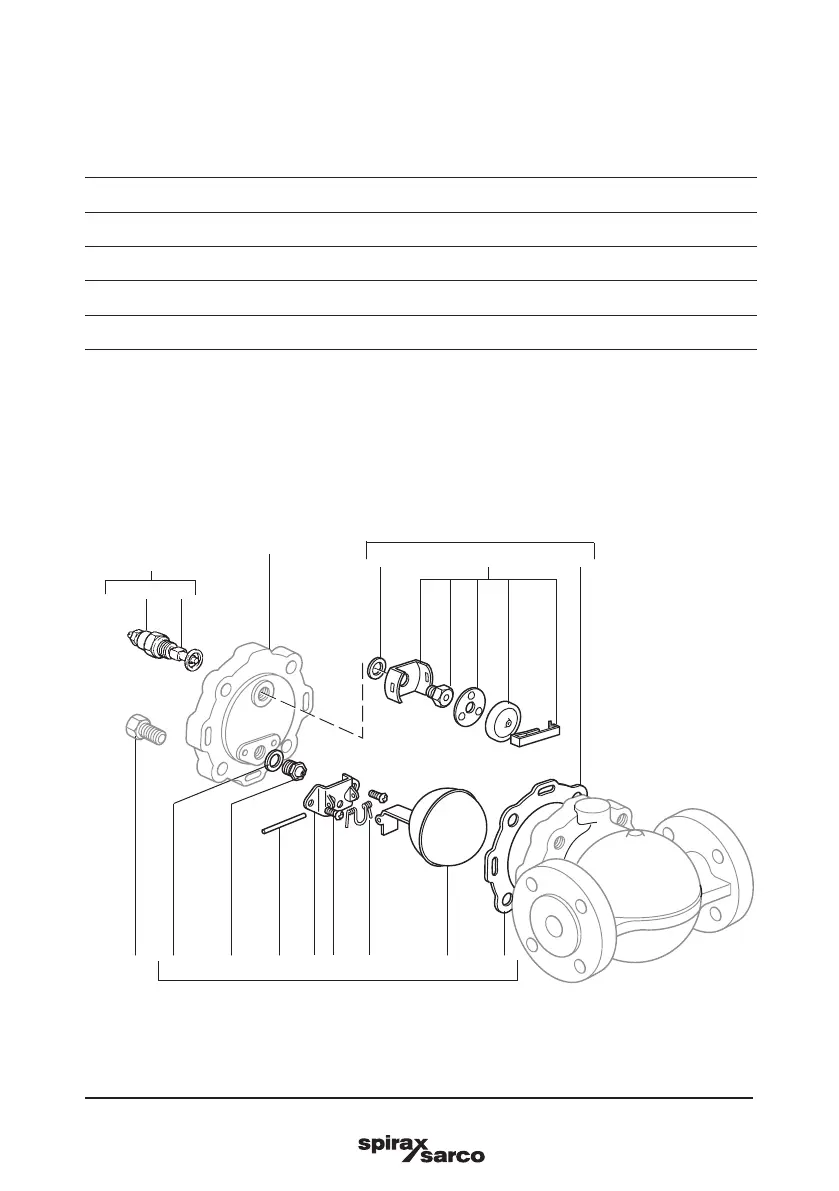

The spare parts available are shown in solid outline. Parts drawn in a grey line are not
supplied as spares.
Available spares
Main valve assembly with float 3, 5, 6, 7 (2 off), 8, 10, 11, 16 (1" only)
Air vent assembly 3, 17, 18
Cover gasket (packet of 3) 3
Maintenance kit 3, 5, 6, 7 (2 off), 8, 10, 11, 17, 18, 28 (1" only)
Steam lock release unit and air vent assembly (FT14C only) 3, 17, 18, 19, 20, 21
How to order spares
Always order spares by using the description given in the column headed 'Available spares'
and state the size and type of trap.
Example: 1 - Air vent assembly for a Spirax Sarco DN20 FT14-10 (R - L) ball float steam trap.
7. Spare parts
Fig. 6
1
Steam lock
release assembly
19 + 21 20
