Spirax Sarco FT43 User Manual

IM-IBR17-49IN Issue 18
2.2 FT43 - Cast iron

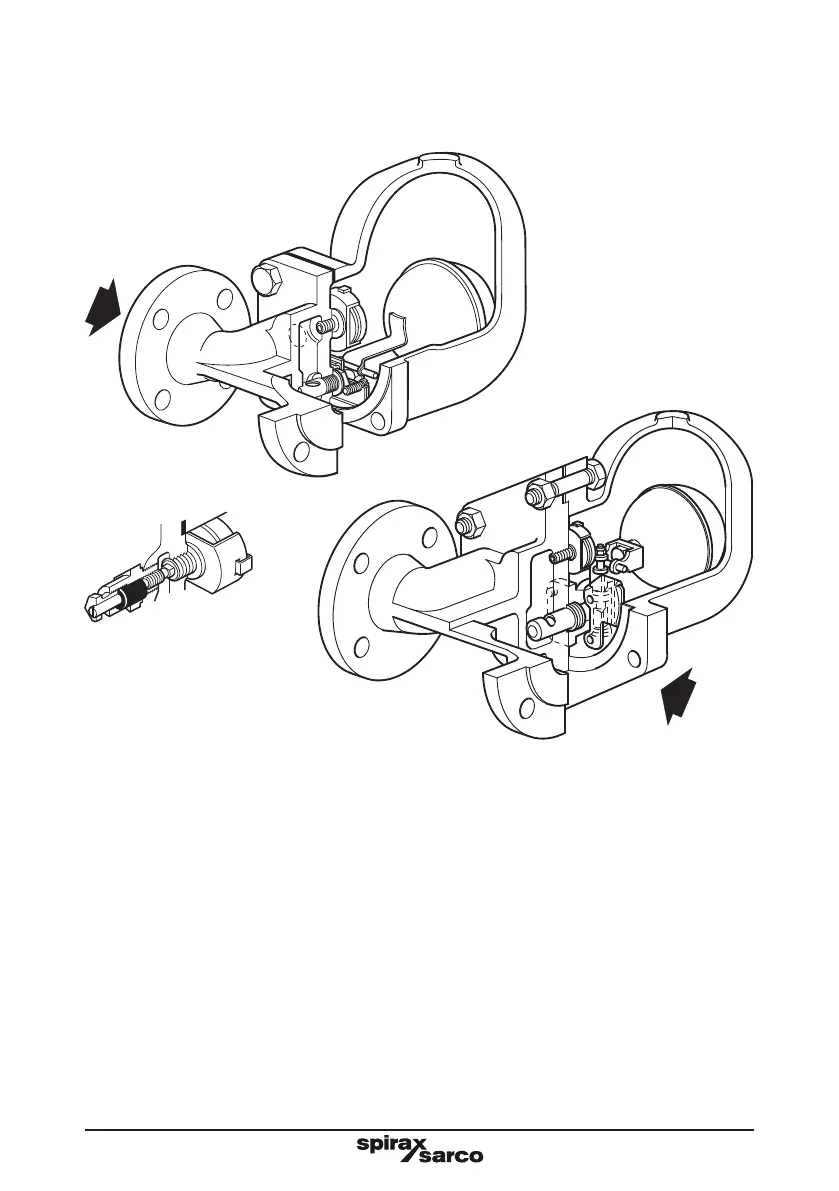

Fig. 1
Sizes and pipe connections
DN25, DN40 and DN50
Note: Flow direction, for FT43 horizontal orientated traps, when facing the body:
-
DN25 is left to right. (R-L versions are available for DN25 FT43TV PN16 only)
-
DN40 and DN50 is right to left.
Flow direction, for FT43V vertically orientated traps is downwards only.
Standard flanges are EN 1092 PN16 with face-to-face dimensions in accordance with EN
26554 (Series 1).
On request - ASME B 16.5 Class 125 anges are also available.
Note: ASME anges are supplied with tapped holes to receive ange bolts. ASME anges
have UNC threads.
FT43 DN40 and DN50
FT43 DN25
FT43- C
