IM-P077-02 ST Issue 612
The spare parts available are shown in heavy outline. Parts shown in broken lines are not
supplied as spares.
Available spares
Valve and seat assembly 3, 4, 5, 6, 7, 12, 13, 14*, 16*, 19, 20*
Bucket assembly 8
Strainer screen 9, 11
Packet of gaskets 7, 11, 12, 13
How to order spares
Always order spares by using the
description given in the column head
'Available spares' and state the size,
model No. and presure rating of the trap.
Example: 1 - Valve and seat assembly
for Spirax Sarco DN20 SFB8 inverted
bucket steam trap for differential
pressures up to 8 bar.
7. Spare parts
12
13
3
4, 19
6
5
20
7
8
9 11 10
14
16
17

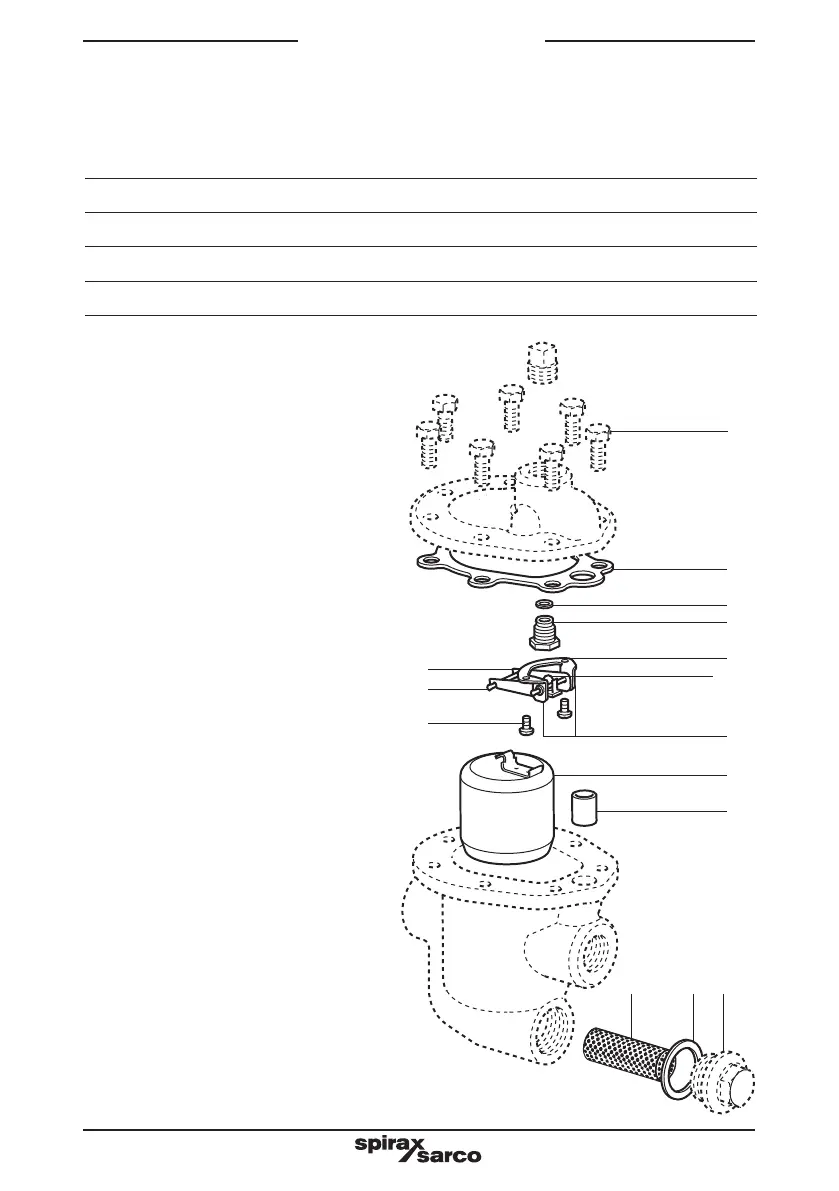

Fig. 4
*(2 off)
