Spirax Sarco SX75 Series User Manual

Withdrawal screw
Face seal IP54
Front cover
Confirm data
Automatic / Manual
Select digit
Increment digit
Set point
Main output Y1 ON
Main output % Y1
Manual operation
Set point W
Measured Vaue X
Active Remote Set
Auto-tune in course
Active serial communication
output Y3 ON
output Y2 ON
Functions (menu)
Set Point Number
Main output Y1
(increases - Heat)
Main output Y1F
(decreases - cool)
275.8
275.8
4
50
3

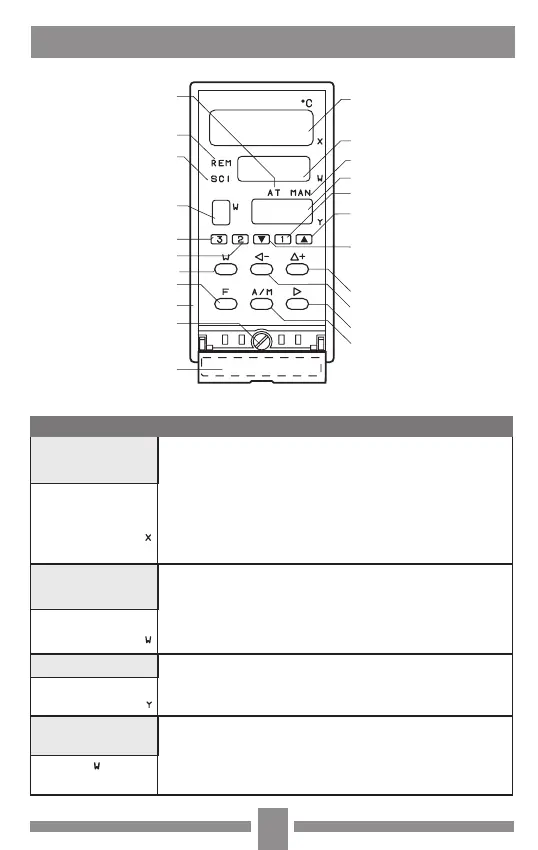

2. FUNCTION OF KEYS AND DISPLAYS
8888____
8888
(green)
The value of measure X is expressed in engineering
units.
If value over range
If value under range
- In parameters: displays parameter values
- In configuration: displays the values of EFGH
configuration code (see enclosed leaflet)
(green)
Displays the operating Set point
(Local or Remote)
- In parameters: displays the parameter codes
- In configuration: displays the values of ILMN
configuration code (see enclosed leaflet)
(green)
Displays the value of main output Y1 from 0...100%
(from - 100 to 100% for Y1 with dual action)
- In configuration: Displays Co
(green)
Dispalys current set point number
----
Set Point Number
Output Y1
Set point W
Measured Value X
NUMERIC INDICATORS X, W, Y, N°
4
275.8
275.8
50
