2.1 General description
The TD3-3 is a medium pressure thermodynamic steam trap fitted between unions for ease of
replacement. Tail pieces are prepared for butt weld ends.
Optional extras
Insulating cover
To prevent the trap being unduly influenced by excessive heat loss
such as when subjected to low outside temperatures, wind, rain etc.
Integral blowdown A BDV1 or BDV2 can be fitted to the strainer cap, alternatively the
valve strainer cap can be drilled, tapped and plugged " BSP or NPT.
Standards
This product fully complies with the requirements of the European Pressure Equipment
Directive 97 / 23 / EC.
Certification
This product is available with certification to EN 10204 3.1. Note: All certification / inspection
requirements must be stated at the time of order placement.
Note: For addtional information see Technical Information Sheet TI-P068-04.
2.2 Sizes and pipe connections
", ½" LC, ½" and ¾" butt weld Schedule 40.
2. General product information

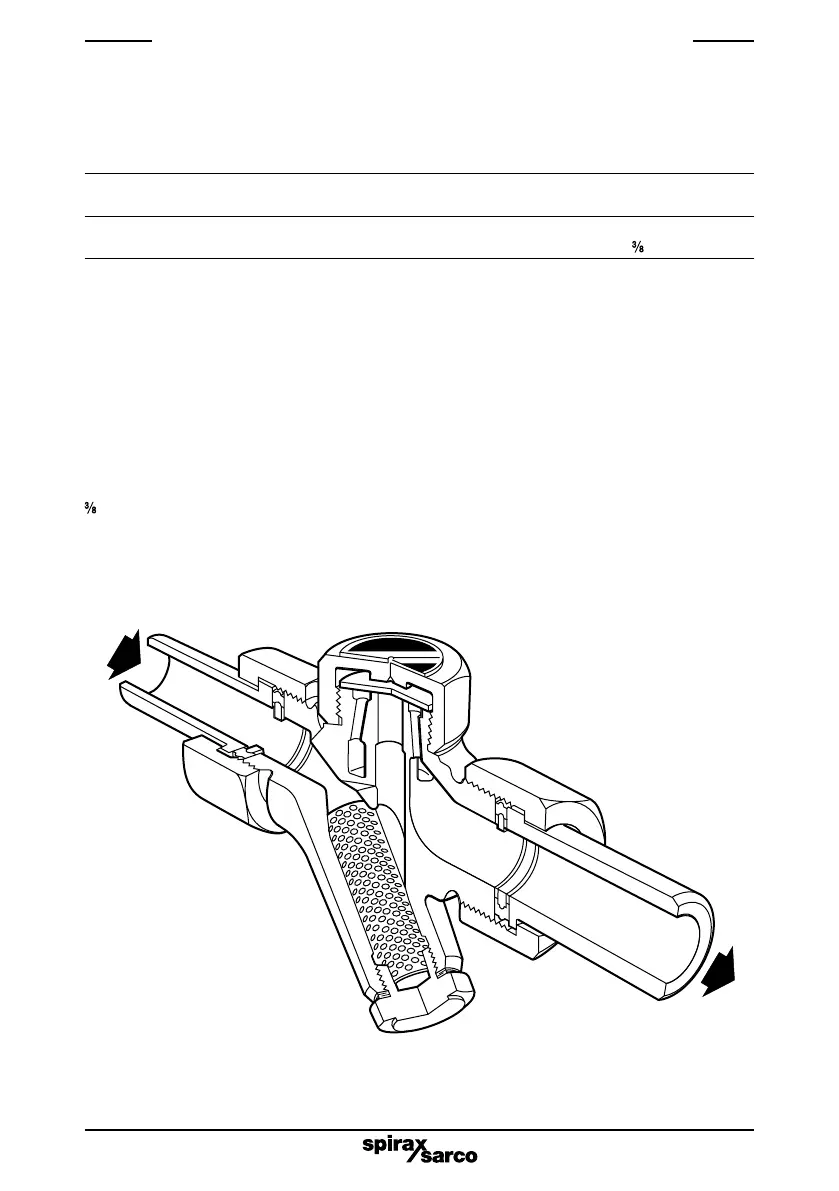

Fig. 1 TD3 - 3
