Spirax Sarco TD3-3 - Spare Parts

IM-P068-25 ST Issue 2 11
The spare parts available are shown in solid outline. Parts drawn in broken line are not
supplied as spares.
Available spares
Trap unit (complete without unions) 4, 3, 1, 10
Disc (packet of 3) 3
Strainer screen and gasket 4, 6
Union gasket and inner ring (packet of 10) 10
Insulating cover 7
Strainer cap gasket (packet of 3) 6
How to order spares
Always order spares by using the description given in the column headed 'Available spares'
and state the size and type of trap.
Example:
1 - Strainer screen and gasket for a Spirax Sarco ½" TD3-3 thermodynamic steam trap.
7. Spare parts
7
2
3
1
10
* 9
4
6
5

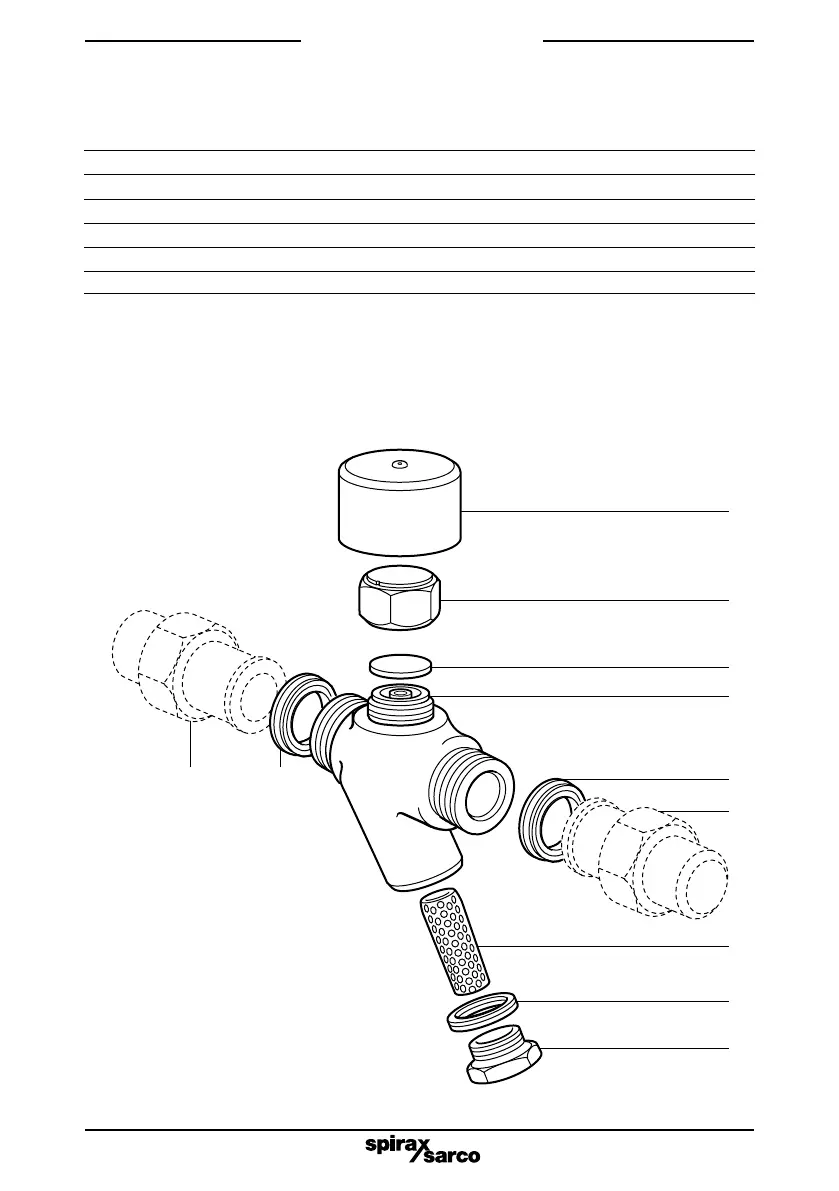

Fig. 3
10
* 9
* Please note:
Item 9 is not an available spare.
