Page 3 of 5
UFT32 Sealed Stainless Steel Ball Float Steam Trap (for use with Pipeline Connectors)
TI-P146-05
CMGT Issue 6

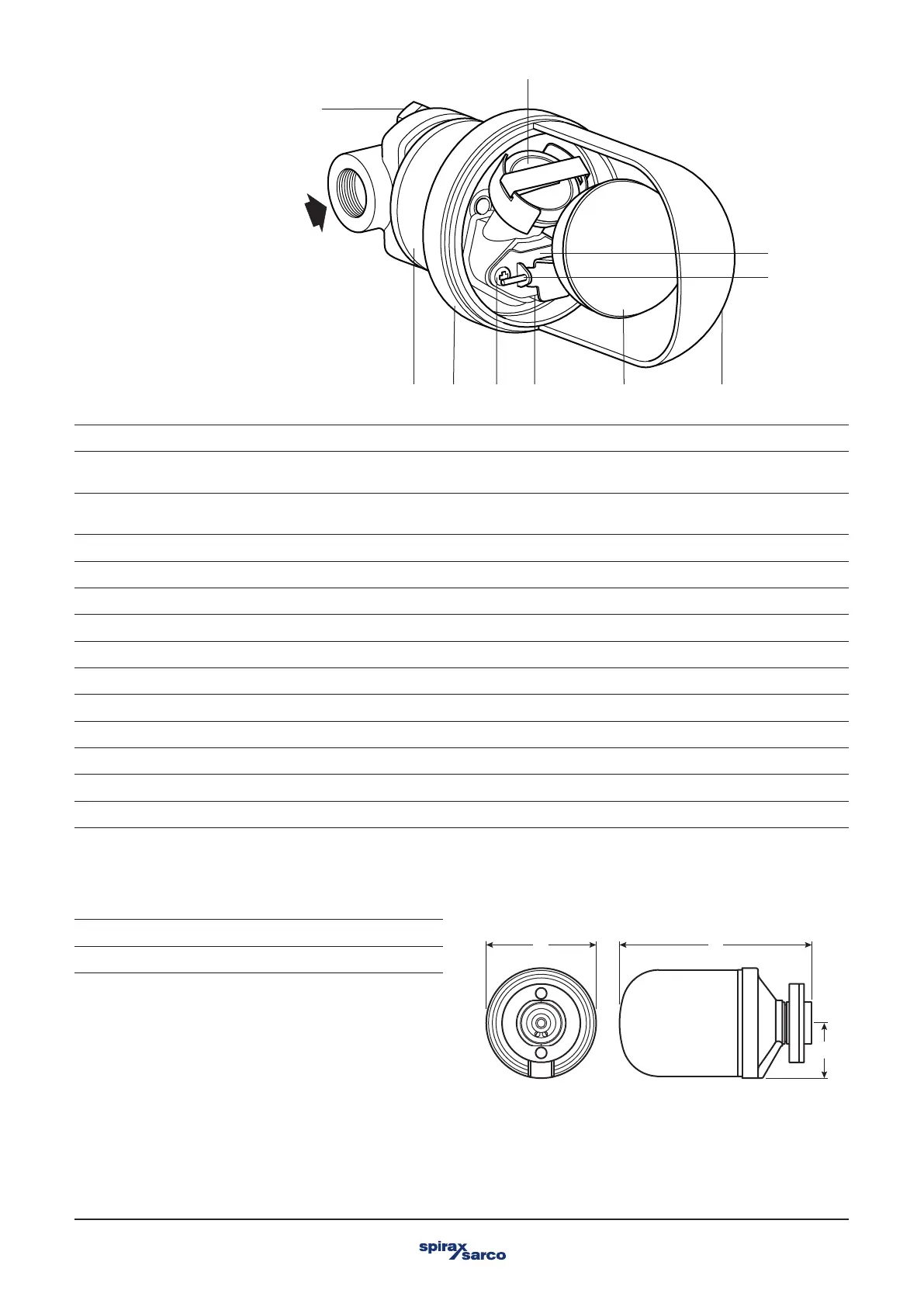

No. Part Material
1 Body Austenitic stainless steel 304
EN 10213-4 1.4308;
ASTM A351 CF8
2 Cover Austenitic stainless steel 304
EN 10028-7 1.4301;
ASTM A240 Gr. 304
3 Connector screws Steel ASTM A193 B7
4 Flange Alloy steel - ELNP ASTM A193 B7
5* Inlet gasket Graphite/Stainless steel laminate
6* Outlet gasket Graphite/Stainless steel laminate
7 Main valve seat Stainless steel EN10088-3 1.4057
8 Main valve/air vent seat gasket Stainless steel EN10088-2 1.4307
9 Main valve assembly screws Stainless steel BS EN ISO3506 Cl A2
10 Ball float and lever Stainless steel EN10088-2 1.4301
11 Air vent assembly Stainless steel
12 Pivot frame Stainless steel EN10088-3 1.4057
13 Pivot pin Stainless steel
* Note: Items 5 and 6 are shown clearly in the spares drawing overleaf.
Dimensions/weight (approximate) in mm and kg
A B C Weight
168.5 94 47 2.02
UFT32 fitted to a PC10HP connector
Materials
3
107 2914
11
12
13
B A
C
