User manual - 1.0 English 9
5.2 Unpack
The unit is delivered in a crate or a box.
1. Open the crate or the box.
2. If applicable, remove the plastic seal bag.
3. Check the unit for transport damage.

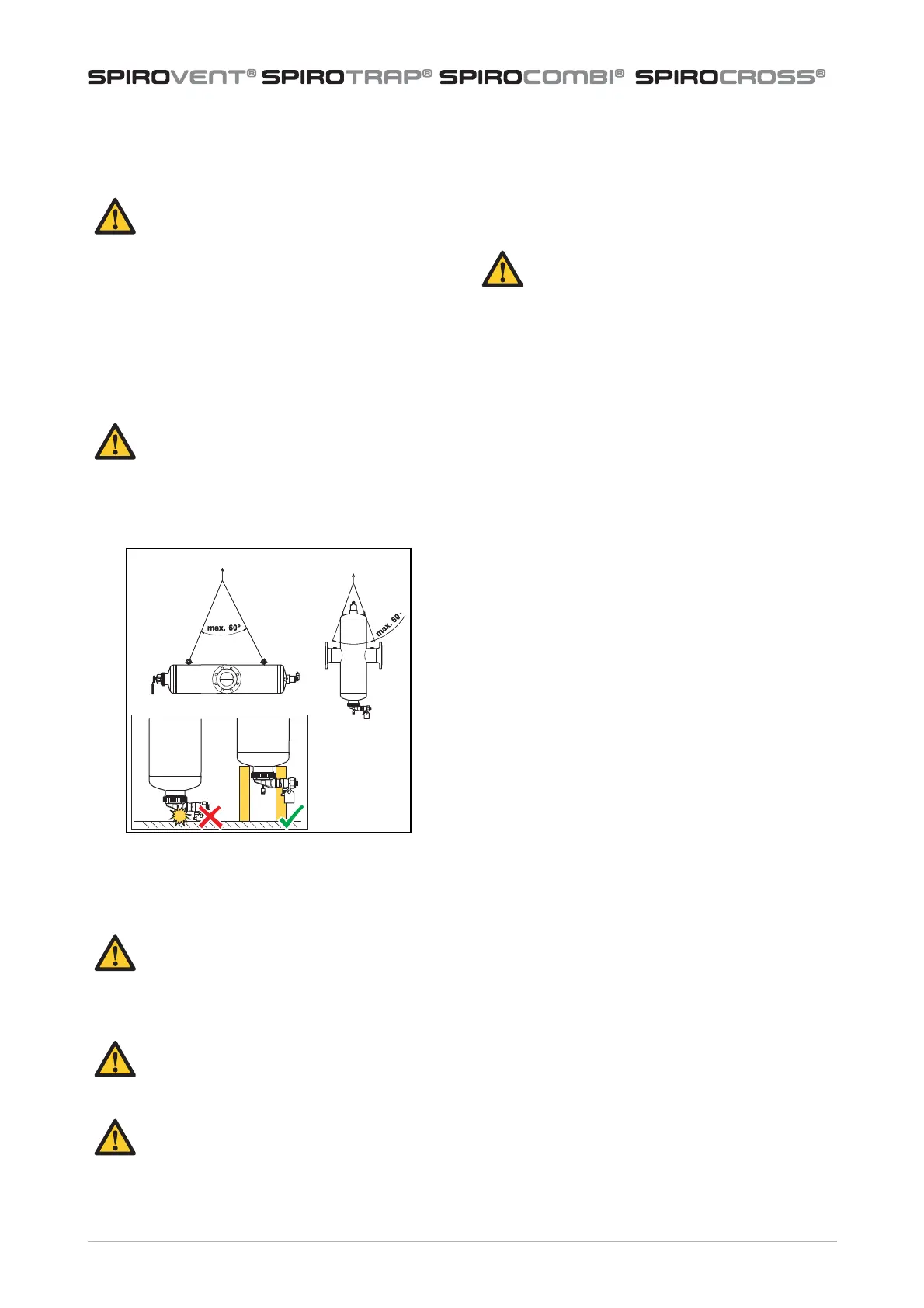

5.3 Lift the unit
Example:
1. Connect the safety hooks to the lifting lugs.
2. Make sure that the lifting chains (or straps) are
tight.
3. Lift the unit.
4. If it is necessary to temporarily put down the unit,
put a support under the unit and make sure the
unit rests with the main body on the supports to
prevent damage to the unit.
5.4 Install the unit
5.4.1 The best position of the unit in the
installation
• For maximum deaeration, both the deaerator and
the combined deaerator / dirt separator should be
installed at the hottest point of the installation. For
instance, in the main flow of a central heating
system or in the main return line of a cooling
system.
• Preferably, the dirt separator must be installed
directly before the components that need to be
protected. For instance in the main return.
• The SpiroCross must be installed as a separator of
the primary side and secondary side of the system.
This way the SpiroCross decouples the primary
pumps from the secondary pumps.
WARNING
To prevent damage to the unit, it is strictly
recommended to hoist the unit as indicated in
section 5.3.
• Use approved lifting chains or straps
with safety hooks.
• Use lifting equipment that can carry the
weight of the unit (WLL). Refer to
section 3.1.
CAUTION
The hoist angle may not exceed 60°.
WARNING
Do not stand under the load.
CAUTION
Make sure that the unit can move freely.
CAUTION
For units with a magnetic dirt separator: Do
not let the unit stand on its bottom. The dry
pocket may get damaged when it rests on the
floor. Use the supports.
