Parts List

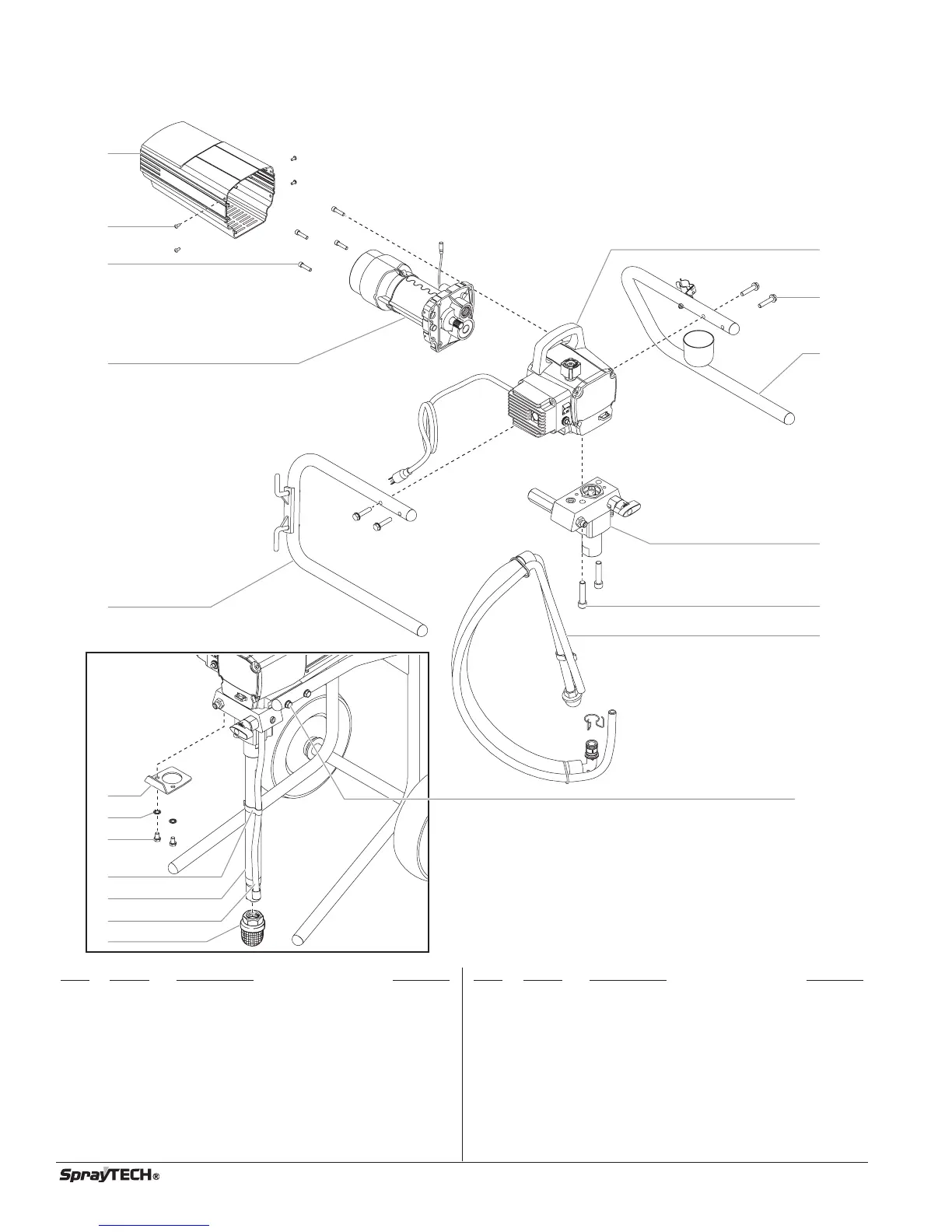

Main Assembly
1
3
4
5
9
6
7
8
10
11
12
2
17
18
16
13
14
14
15
Item Part # Description Quantity
1 0551517 Motor cover.................................................1
2 0551440 Screw..........................................................4
3 9800308 Screw..........................................................4
4 ---------- Motor assembly ..........................................1
5 0551526 Left leg assembly (stand only)....................1
6 0551553 Pail hook (upright cart only)
7 0508549 Washer (upright cart only) ..........................2
8 0508550 Screw (upright cart only).............................2
9 0507783 Hose clip (upright cart only)........................1
10 0508552 Siphon tube (upright cart only) ...................1
11 0551556 Return hose (upright cart only)...................1
12 5006536 Inlet screen (upright cart only) ...................1
Item
Part # Description Quantity
13 ---------- Gear box assembly.....................................1
14 0509550 Screw (stand)..............................................4
0509550 Screw (upright cart)
0508590 Screw (low boy)
15 0551524 Right leg assembly (stand only) .................1
16 0551529 Fluid section assembly
(stand and low boy cart) .............................1
0551549 Fluid section assembly (upright cart)
17 0508553 Screw..........................................................2
18 0551104 Suction set assembly
(stand and low boy cart) .............................1
19 9890212 Return hose clamp (not shown) .................1
