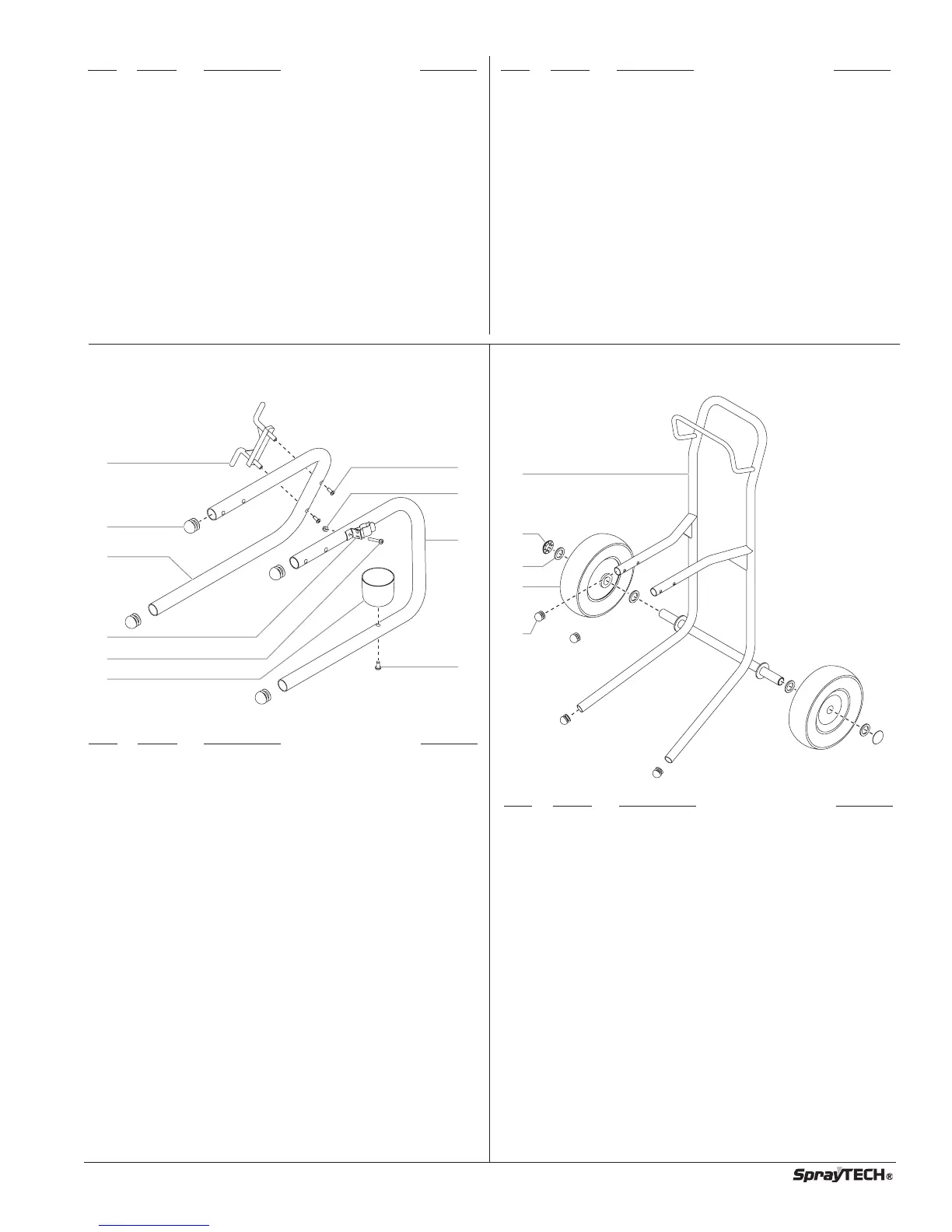

SprayTECH EPX2155 - Stand Assembly; Upright Cart Assembly

© SprayTECH. All rights reserved. 21
Item Part # Description Quantity
1 0509218 Screw..........................................................4
2 0551518 Front cover..................................................1
3 0551541 Slider assembly ..........................................1
4 0507777 Connecting pin............................................1
5 0507768 Retaining ring..............................................1
6 0508572 Crankshaft/gear assembly..........................1
7 0508573 Thrust washer.............................................1
8 0509121 Second stage gear .....................................1
9 0509219 Screw..........................................................1
10 0551513 Pressure control knob.................................1
11 0551522 Knob housing..............................................1
12 02712 Knob spring.................................................1
13 9822522 Washer........................................................1
14 0551521 Plunger .......................................................1
15 0551516 Power cord assembly (stand).....................1
0551432 Power cord assembly
(low boy and upright cart)
Item
Part # Description Quantity
16 9800340 Ground screw .............................................1
17 0551112 Transducer assembly (includes o-ring) ......1
18 0551515 Circuit breaker ............................................1
19 9850936 ON/OFF switch ...........................................1
20 03662 Microswitch insulator ..................................1
21 0295490 Microswitch .................................................1
22 9800604 Screw..........................................................2
23 0295451 Relay, 120V ................................................1
24 0507751 Port plug .....................................................1
25 0509218 Screw..........................................................4
26 0551523 Heat sink assembly
(includes items 24 and 25) .........................1
27 0551499 Flat washer .................................................3
28 0551495 Screw..........................................................3
0551520 Mechanical control assembly
(includes items 11–14)
Stand Assembly
Item Part # Description Quantity
1 0508377 Cord wrap ...................................................1
2 0551525 Plug.............................................................4
3 0551526 Left leg assembly
(includes items 1, 2, and 7) ........................1
4 0551483 Clip assembly .............................................1
5 0551484 Screw..........................................................1
6 0508381 Drip cup ......................................................1
7 0551527 Screw..........................................................2
8 0509856 Nut ..............................................................1
9 0551524 Right leg assembly
(includes items 2, 4, 5, 6, 8, and 10)
10 0507955 Screw..........................................................1
2
1
3
5
4
6
7
8
10
9
Upright Cart Assembly (P/N 0551110)
Item
Part # Description
Quantity
1 0551660 Cart weldment (includes item 5).................1
2 9890104 Cap .............................................................2
3 0294534 Spacer ........................................................4
4 0278373 Wheel..........................................................2
5 0551525 Plug.............................................................4
1
2
3
5
4
