SprayTECH EPX2155 - Fluid Section Assembly

22 © SprayTECH. All rights reserved.

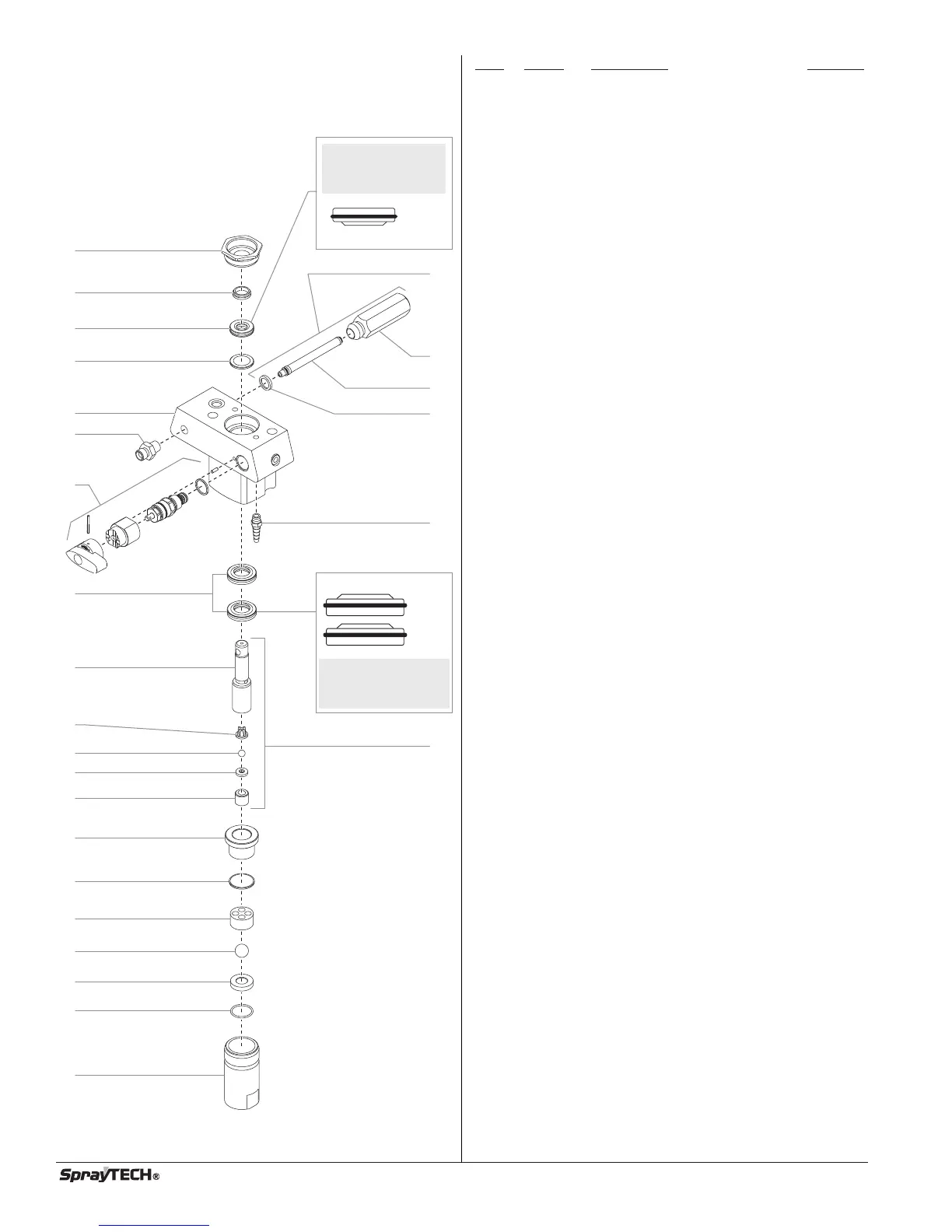

Fluid Section Assembly
(Stand and Low Boy Cart P/N 0551529)
(Upright Cart P/N 0551549)
1
7
8
9
10
11
12
13
14
15
16
17
18
19
20
2
3
4
5
6
22
21
23
24
25
26
Install lower packings
with raised lip and
O-ring facing up.
O-Ring
Raised Lip
Install upper packing
with raised lip and
O-ring facing down.
O-Ring
Raised Lip
Item Part # Description Quantity
1 0508664 Retainer nut ................................................1
2 0508665 Piston guide................................................1
3 0551538 Upper packing assembly ............................1
4 0551535 Spacer ........................................................1
5 0551531 Pump manifold............................................1
6 0509873 Outlet fitting, 1/4” ........................................1
7 0507690 PRIME/SPRAY valve assembly .................1
8 0551539 Lower packing assembly ............................2
9 0551537 Piston rod....................................................1
10 0295307 Outlet valve cage........................................1
11 50164 Outlet valve ball ..........................................1
12 13359 Outlet valve seat.........................................1
13 13481 Outlet valve retainer ...................................1
14 0508676 Piston bushing ............................................1
15 0508739 Nylon washer..............................................1
16 0508677 Inlet valve cage...........................................1
17 0508678 Inlet valve ball.............................................1
18 0551534 Inlet valve seat............................................1
19 0509582 O-ring, PTFE ..............................................1
20 0508680 Inlet valve housing (stand and low boy cart)..1
0508690 Inlet valve housing (upright cart)
21 0551532 Filter assembly (includes items 22–24) ......1
22 0508752 Filter housing ..............................................1
23 0296288 Filter............................................................1
24 0508740 Filter seal ....................................................1
25 0551530 Return hose fittiing, 1/8” .............................1
26 0551536 Piston assembly (includes items 9–13) ......1
0551533 Repacking kit (includes items 2–4, 8
10–11, 15, 17, and 19)
0551509 Lower seal insertion tool
