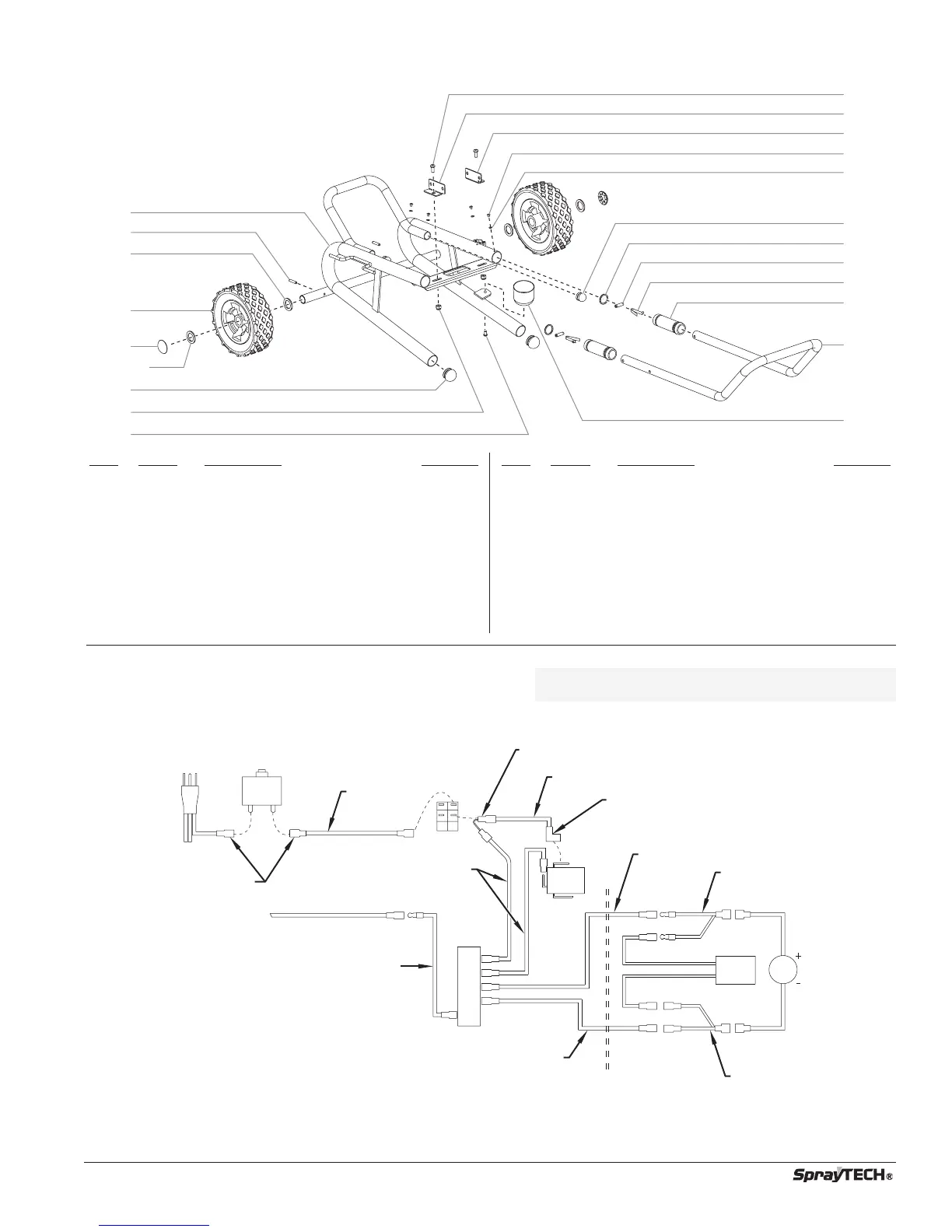

SprayTECH EPX2155 - Low Boy Cart Assembly; Electrical Schematic

© SprayTECH. All rights reserved. 23
Plug
Circuit
Breaker
Micro-
switch
SP1
SP2
SP3
SP4
SP5
Relay
Capacitor
Motor
WHITE
BLACK
BLACK BLACK
REDRED
90º Female
Quick Connect
Male/Female Piggyback
Female Quick
Connect
P/N 0551496
P/N 0551497
P/N 0507974
P/N 0551498
P/N 0508650
P/N 0295418
P/N 0507974
P/N 0508644
Motor Compartment
Electrical Schematic
Low Boy Cart Assembly (P/N 0551547)
9
10
11
12
13
14
15
16
17
18
20
19
1
2
3
4
6
7
8
3
5
Item Part # Description Quantity
1 0551608 Cart weldment (includes items 6 and 14)...1
2 0507956 Roll pin........................................................2
3 0294534 Wheel spacer..............................................4
4 0270394 Wheel..........................................................2
5 9890104 Cap .............................................................2
6 0551548 Plug.............................................................2
7 0295615 Lock nut ......................................................2
8 0507955 Screw..........................................................1
9 0295618 Screw..........................................................2
10 0551551 Mounting bracket, left .................................1
11 0551552 Mounting bracket, right ...............................1
Item
Part # Description Quantity
12 0295608 Screw..........................................................4
13 0295606 Washer........................................................4
14 0551525 Plug.............................................................2
15 0295609 Handle washer............................................2
16 0295610 Roll pin........................................................2
17 9841504 Snap button ................................................2
18 0295607 Sleeve.........................................................2
19 0551609 Handle asssembly
(includes items 12, 13, and 15–18 .............1
20 0508381 Drip cup ......................................................1
NOTE: All electrical work should be performed by
a SprayTECH authorized service center.
