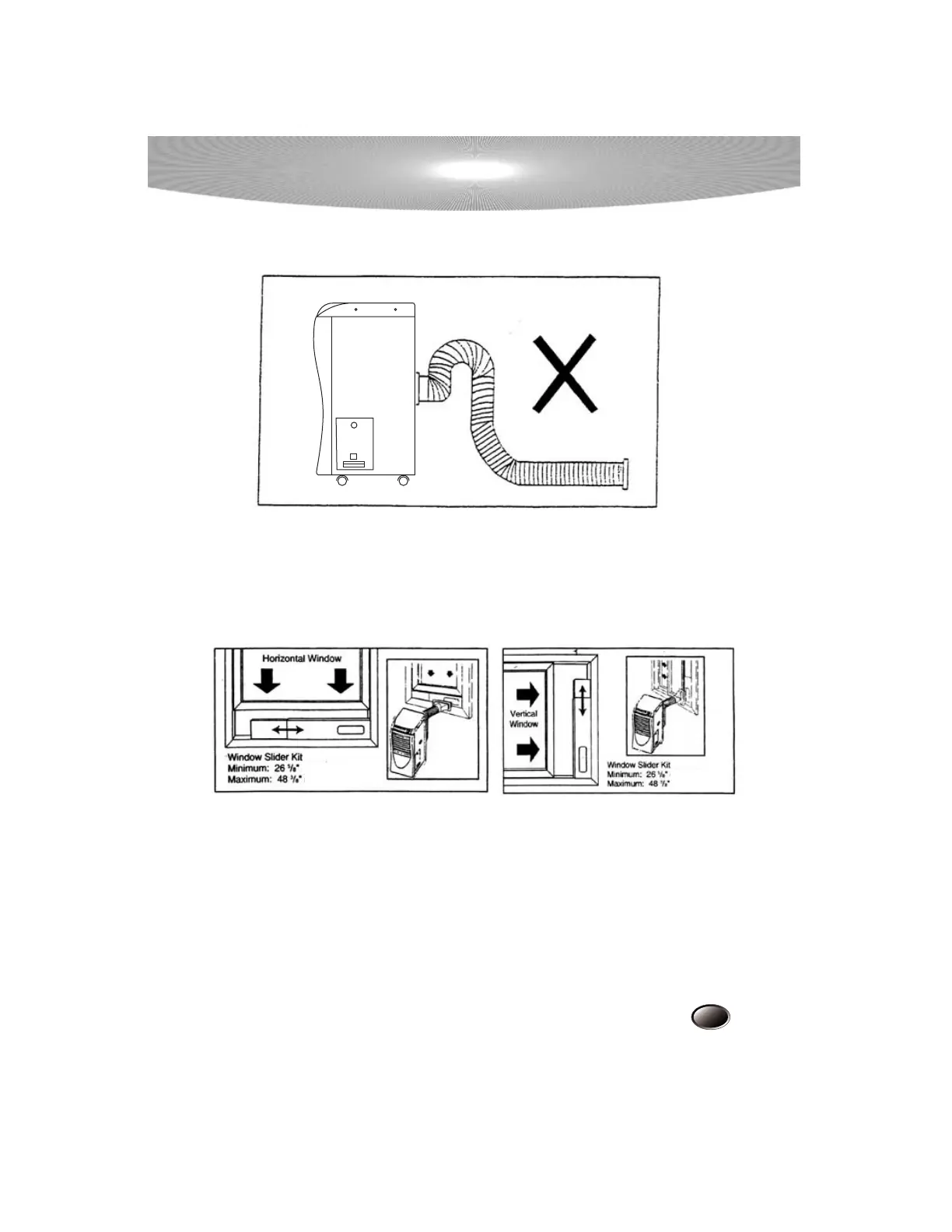

Example WRONG mounting diagram (Air exhaust bend is too large, will cause overheating.)
INSTALLATION
Window Kit Installation
Your window kit has been designed to fit most standard "vertical" and "horizontal" window
applications. However, it may be necessary for you to improvise/modify some aspects
of the installation procedures for certain types of windows. Please refer to Fig. 24 &
Fig. 24a for minimum and maximum window openings.
Fig.24a
Fig.24
inches
inches
inches
inches
Water Tank Safety Feature
This unit is equipped with a fail-safe switch mechanism which prevents the unit from
condensing water in the event the water tank is accidentally displaced and/or FULL with
water. If this situation occurs, the WATER FULL indicator light will flash red continuously
until the water tank is correctly positioned and/or emptied
NOTE: The fan motor will continue to operate under this condition. This is normal, but no
cooling or dehumidifying will occur until the tank is emptied and/or correctly installed. (It
may take several minutes before the compressor resumes normal operation
