6
INSTALLATION
Fig. 25
I

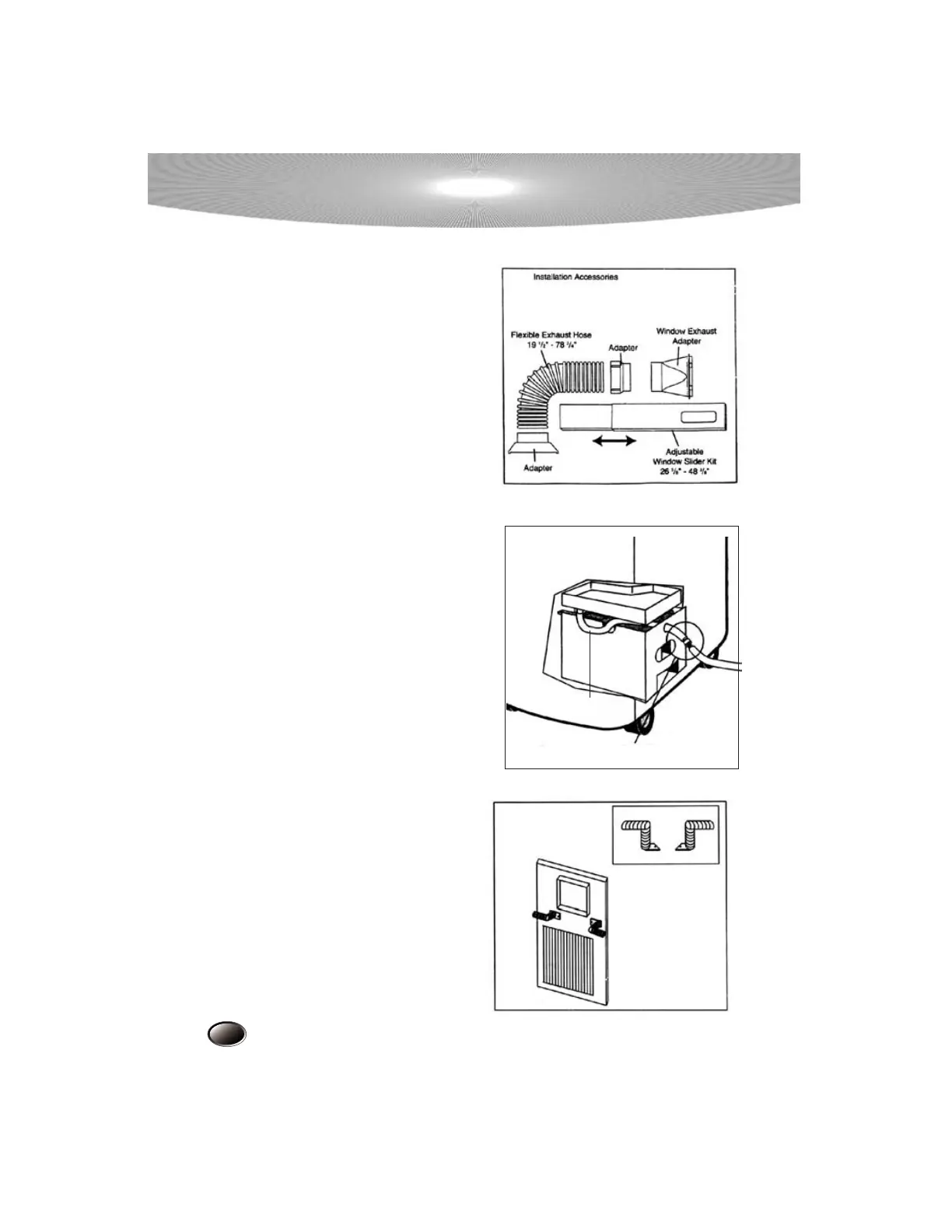

Installation Accessories (Fig. 25)
Flexible exhaust hose with adapters........3/set
stretches from 19 1/2" to 78 3/4"
Window exhaust adapter (flat mouth ).........1pc
Unit exhaust adapter (round) .....................1pc
Adjustable window slider kit.....................2/set
from 26 5/8" to 48 3/8"
Drain hose connector..................................1pc
continuous drain option (hose not included)
NOTE: Exterior drain hose extension is not
included with this unit but can be purchased
through any local Hardware Store.
Continuous Drainage
1.Remove the seal of drainage tube (as shown in
image).
2.Extend the tube outside the unit for drainage,
as shown.
3.Pay attention to place the tube in a proper
situation to avoid causing the electric controls
to not work properly.
Power cord storage
Fix the roll wire at the back of the air guide plate
with the clasp. Wrap the power cord around the
clasp when unit is not in operation.
To Next Page
