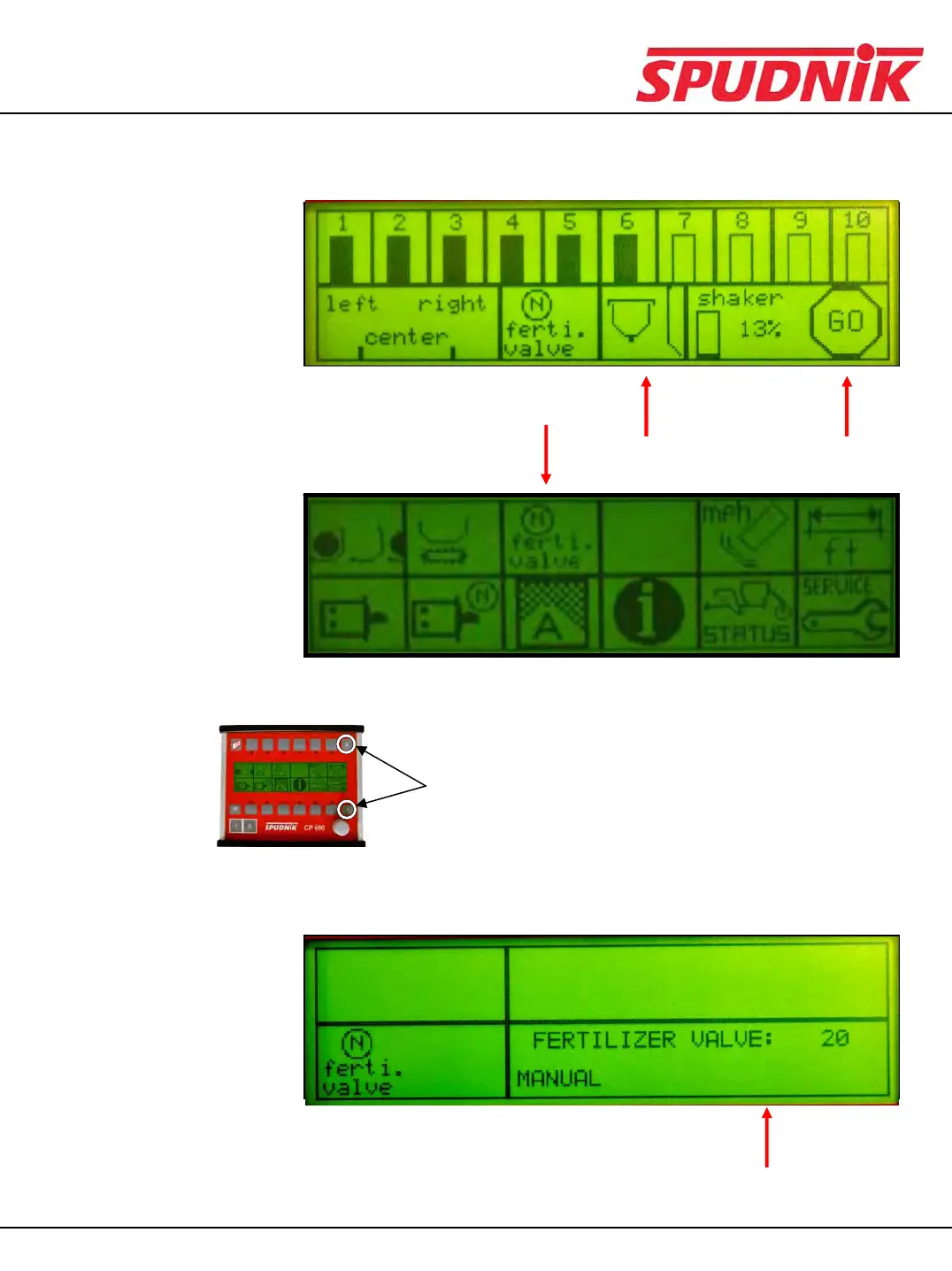

Fertilizer Valve Calibration
1) To set the fertilizer
valves you must make
sure that the fertilizer
valves are turned OFF
and the stop sign
symbol says, ‘STOP’.
The symbol defaults to
‘GO’.
2) Select the, ‘Fertilizer
Valves’ icon.
To set Fertilizer Valves, follow the steps below:
3) Fertilizer Value
Note: use scroll buttons to navigate
through screens
CP600 CONTROL BOX
