SPX FLOW FLEX Series User Manual

12

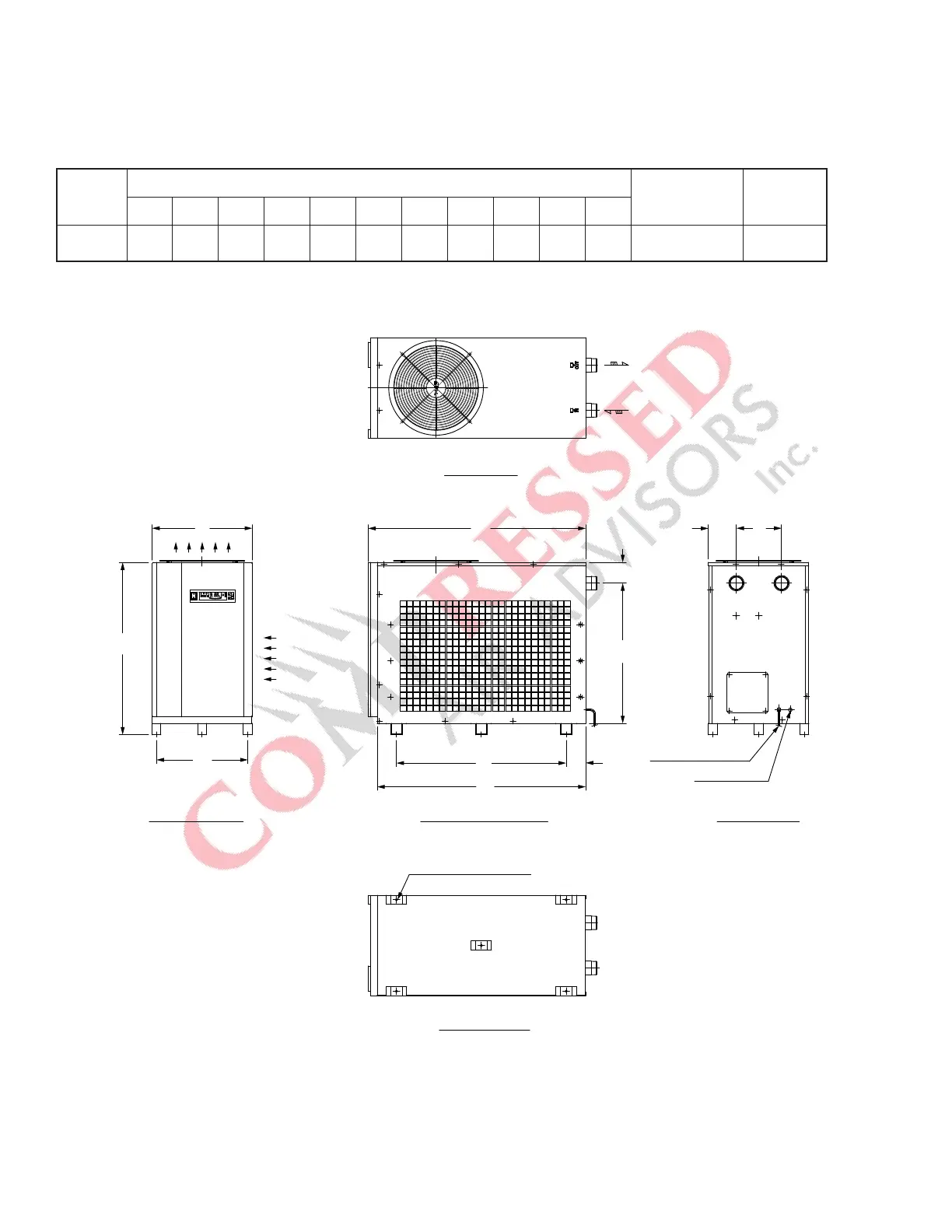

SPECIFICATIONS: General Arrangement Drawing
Figure 5C
Model: FLX 2.1
MODEL
DIMENSIONS, INCHES (MM)
INLET/OUTLET
CONNECTIONS
WEIGHT
Lb. (kg)
A B C D E F G H I J K
FLX 2.1
4.86
(123.5)
7.86
(199.6)
3.63
(92)
24.38
(619.2)
17.44
(443)
29.97
(761.2)
15.91
(404)
37.85
(961.3)
3.39
(86.2)
29.53
(750)
36.27
(921.2)
2" NPT
217
(98.5)
DRIED AIR OUTLET
WETTED AIR INLET
AIR FLOW
COOLING
C
D
E
F
G
MAIN POWER CABLE
A B
5-Ø10 MOUNTING HOLES
DRAIN OUTLET
FOOT PRINT
FRONT VIEW REAR VIEW
RIGHT SIDE VIEW
TOP VIEW
J
K
I
H

SPX FLOW FLEX Series Specifications

General

Brand	SPX FLOW
Model	FLEX Series
Category	Dehumidifier
Language	English
