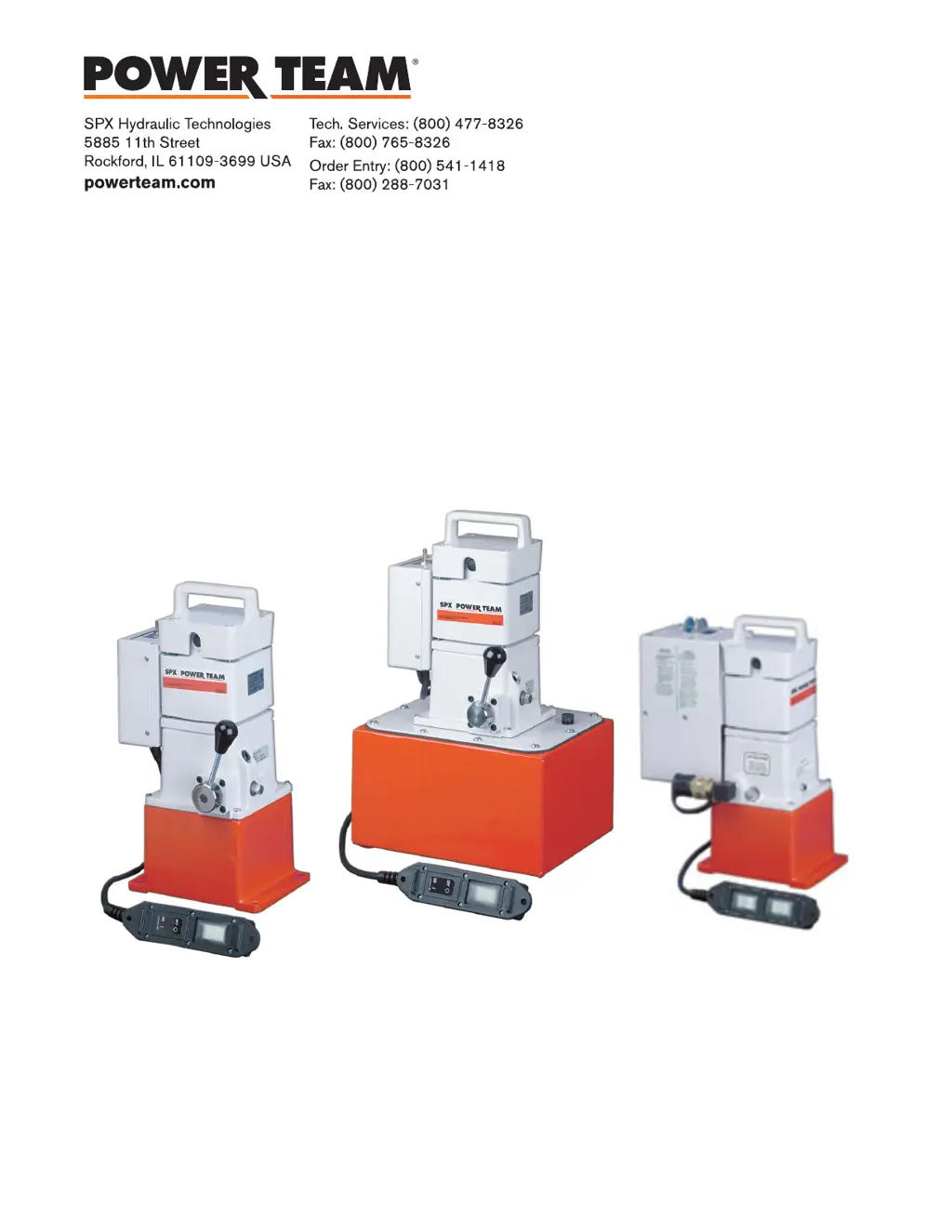

Operating Instructions for:
PE18 Series
Electric-Powered
18 Series
Hydraulic Pump
© SPX
Form No. 1000572
Rev. 0 February 8, 2012

Table of Contents

Questions and Answers

  • E
    elizabethdunnAug 14, 2025
    Why my SPX Power Team PE183-2 Water Pump electric motor does not run?
    • T
      Tamara WagnerAug 14, 2025
      If the SPX Water Pump's electric motor isn't running, make sure the switch is in the RUN position and that the unit is properly plugged in. Check the line voltage and the reset button on the power panel. If these steps don't solve the issue, the brushes may be worn and need replacement. Also, the circuit breaker might have tripped due to high amperage; try an alternative circuit or consult an electrician for an additional one. The motor could be overheated (for single-phase motors) or the magnetic starter disengaged (for three-phase motors); let the motor cool and reset the thermal protector. If the thermal protector or magnetic starter is faulty, replace them.
  • T
    Timothy WarnerAug 17, 2025
    What to do if SPX Water Pump is not delivering fluid?
    • A
      Ann BentleyAug 18, 2025
      If your SPX Water Pump isn't delivering fluid properly, start by checking the fluid level and adding more if it's low. Ensure the quick-disconnect couplings to cylinders are fully connected and replace them if worn. Bleed air from the system. Inspect the suction line for air leaks and tighten it if necessary. Clean the pump filter for debris. If using a double-acting cylinder, cap the hoses to check for leaks in the pump and valve. For cold or heavy fluid, drain, flush, and refill the reservoir with a lighter fluid. If the power unit/reservoir capacity is too small, consider using smaller cylinders or a larger reservoir. Also, check for a vacuum in the reservoir by cleaning the vent in the filler plug.
  • M
    michellewallerAug 21, 2025
    Why SPX Power Team PE183-2 builds pressure but cannot maintain it?
    • S
      Steven MartinAug 21, 2025
      If your SPX Water Pump builds pressure but can't maintain it, check for external fluid leaks and seal any leaking pipe fittings. If no external leaks are visible, the problem is internal. If you're using a double-acting cylinder, remove it to ensure the leak isn't in the cylinder. Also, inspect the pressure switch seal for leaks and replace the pressure switch if necessary.
  • D
    Diane MatthewsAug 25, 2025
    How to troubleshoot SPX Power Team PE183-2 Water Pump that does not build to full pressure?
    • L
      Laurie RichardsAug 26, 2025
      If your SPX Water Pump doesn't build to full pressure, begin by replacing the pressure gauge, as it may be faulty. Check for any external leakage and seal faulty pipe fittings. If using double-acting cylinders, remove the cylinder from the pump to check for internal leakage. If the pump then builds full pressure, the cylinder is defective.
  • A
    Alec AdamsAug 28, 2025
    Why SPX Power Team PE183-2 Water Pump motor stalls or overheats?
    • K
      Kristin AlvarezAug 28, 2025
      If the electric motor of your SPX Water Pump stalls, surges, overheats, or won't start under load, the issue might be low voltage or an electrical cord that's too small. Refer to the electric motor information and electrical cord chart in the Initial Setup section of this manual for guidance.
  • T
    Tracy BeckSep 1, 2025
    What causes erratic action in SPX Power Team PE183-2?
    • P
      pagecrystalSep 1, 2025
      If your SPX Water Pump is showing erratic action, check for leaks and air in the system and refer to the bleeding procedure. If the issue persists, it may be due to a malfunctioning valve; verify connections and contact an authorized Power Team Service Center.
  • M
    Mark CastilloSep 5, 2025
    What to do if electrical overload protector keeps tripping on SPX Power Team PE183-2?
    • S
      Shawn ZimmermanSep 5, 2025
      If the electrical overload protector of your SPX Water Pump keeps tripping, disconnect the unit from the power supply and have a qualified electrician review the motor and circuit wiring, as it may be wired incorrectly.
  • D
    davidramosSep 8, 2025
    What causes excess fluid pressure in SPX Water Pump?
    • P
      Patrick LongSep 9, 2025
      If the SPX Water Pump delivers excess fluid pressure, replace the faulty pressure gauge.

Summary

Description of PE18 Series Hydraulic Pumps

PE18-Series Hydraulic Pumps Overview

General description of the 18 Series Electric/Hydraulic Pumps, their design and capabilities.

Electric Motor Details

Specifications and operational characteristics of the electric motor used in the pumps.

Safety Precautions and Guidance

General Safety Precautions

Covers essential safety guidelines for operators, environment, PPE, and equipment integrity.

Electric Motor Safety

Highlights critical safety measures related to electrical connections, wiring, and power supply.

Hose Safety

Provides safety instructions for hose connections, usage, inspection, and fluid compatibility.

Cylinder Safety

Details safety procedures for cylinder usage, load handling, pinch points, and stability.

Operating Instructions

Priming the Pump

Electric Motor Control Operation

How to operate the electric motor using control switches or a remote push-button control.

Adjusting the Pressure Regulating Valve

Guide on how to adjust the pressure regulating valve to the desired system pressure setting.

Adjusting the Pressure Switch

Procedure for adjusting the pressure switch to automatically shut off the pump motor.

General Maintenance Guidelines

System Evaluation for Maintenance

Equipment Inspection Checklist

Periodic Cleaning Procedures

Hydraulic Fluid Level Management

Draining and Flushing the Reservoir

Adding Hydraulic Fluid

Checking Electric Motor Brushes

Troubleshooting Guide

SPX Power Team PE183-2 Specifications

General IconGeneral
PhaseSingle
TypeElectric Water Pump
Maximum Operating Pressure10000 psi
MotorElectric
Max Pressure10000 psi
