Operating Instructions Form No. 102875
PUMP OPERATION CONTINUED -
GAS PUMP
Gasoline-Powered: Consult the instruction manual for the gasoline engine to determine its specifications.
1. Place the valve in the neutral or hold position.
2. Start the gas engine according to the operating instruction manual provided.
3. When the engine is running properly, shift the valve as necessary.
4. Turn the pump off when not in use.
AIR PUMP
Rotary Air Motor: Remove the thread protectors from the air inlet, and install the air supply fittings (not
supplied) as shown in Figure 1. Air supply must be minimum 50 CFM (1,4 M
3
/min.) and 80
PSI (5,5 BAR), with 100 PSI (7 BAR) maximum.
1. Place the valve in the neutral or hold position.
2. Couple the air pump to the air supply and turn on the supply valve (if provided).
3. Open (or turn on) the air supply control valve at the pump (hold-to-run hand control is provided).
4. Shift the pump as necessary.
5. Turn the pump off when not in use.
6. Use of an air filter/lubricator is recommended.

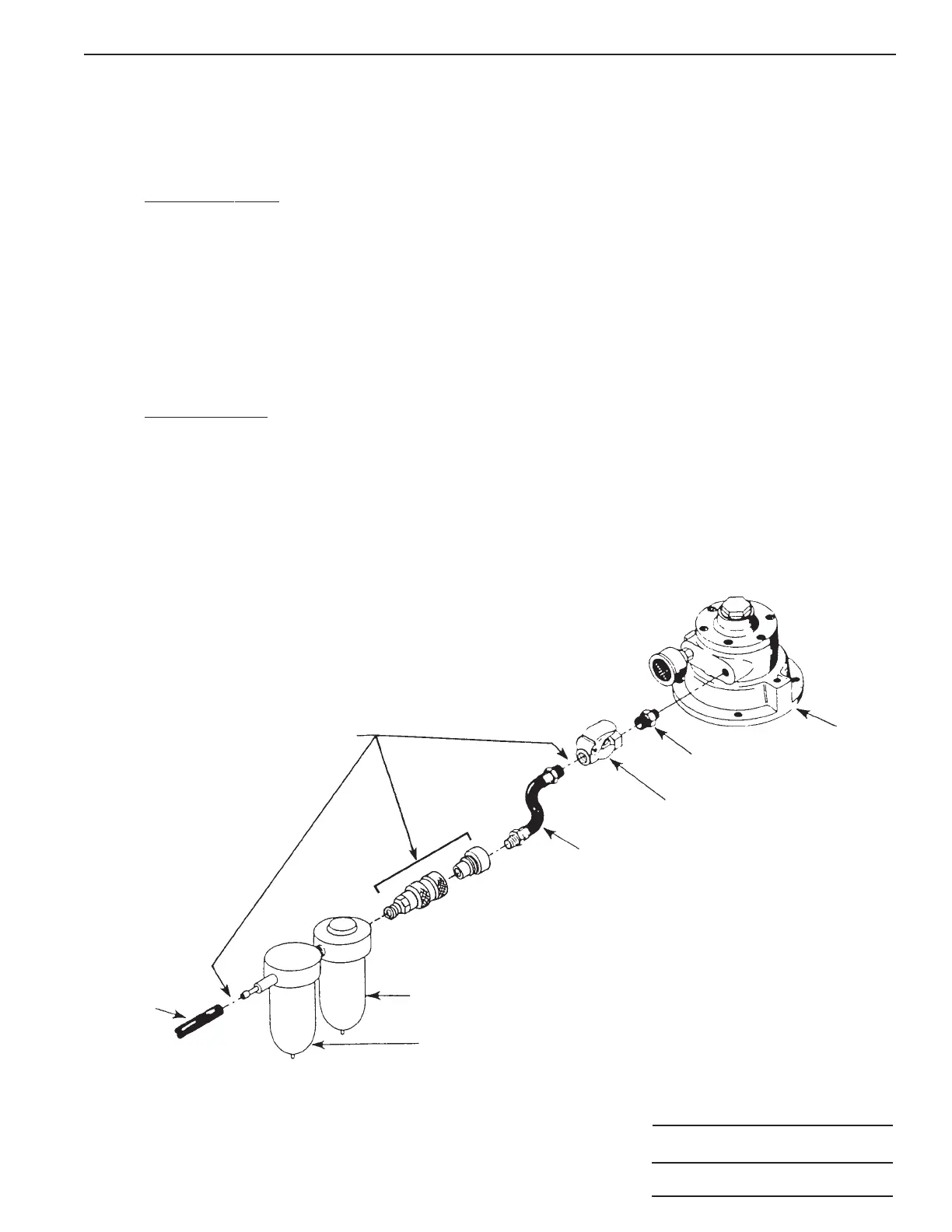

Figure 1
Recommended Air Line Hook-up
Reducing Bushing
Hose
Lubricator
Filter
To air
source
or
supply
Quick Coupler
locate in
system
here or ...
here
here
Hold-to-run
Hand Control
(provided)
Air
Motor
Sheet No. 4 of 8
Rev 10 Date: 02 Mar 2005
To Next Page
