SPX Power Team PG120 Series User Manual

Operating Instructions, Form No. 102875, Back sheet 4 of 8

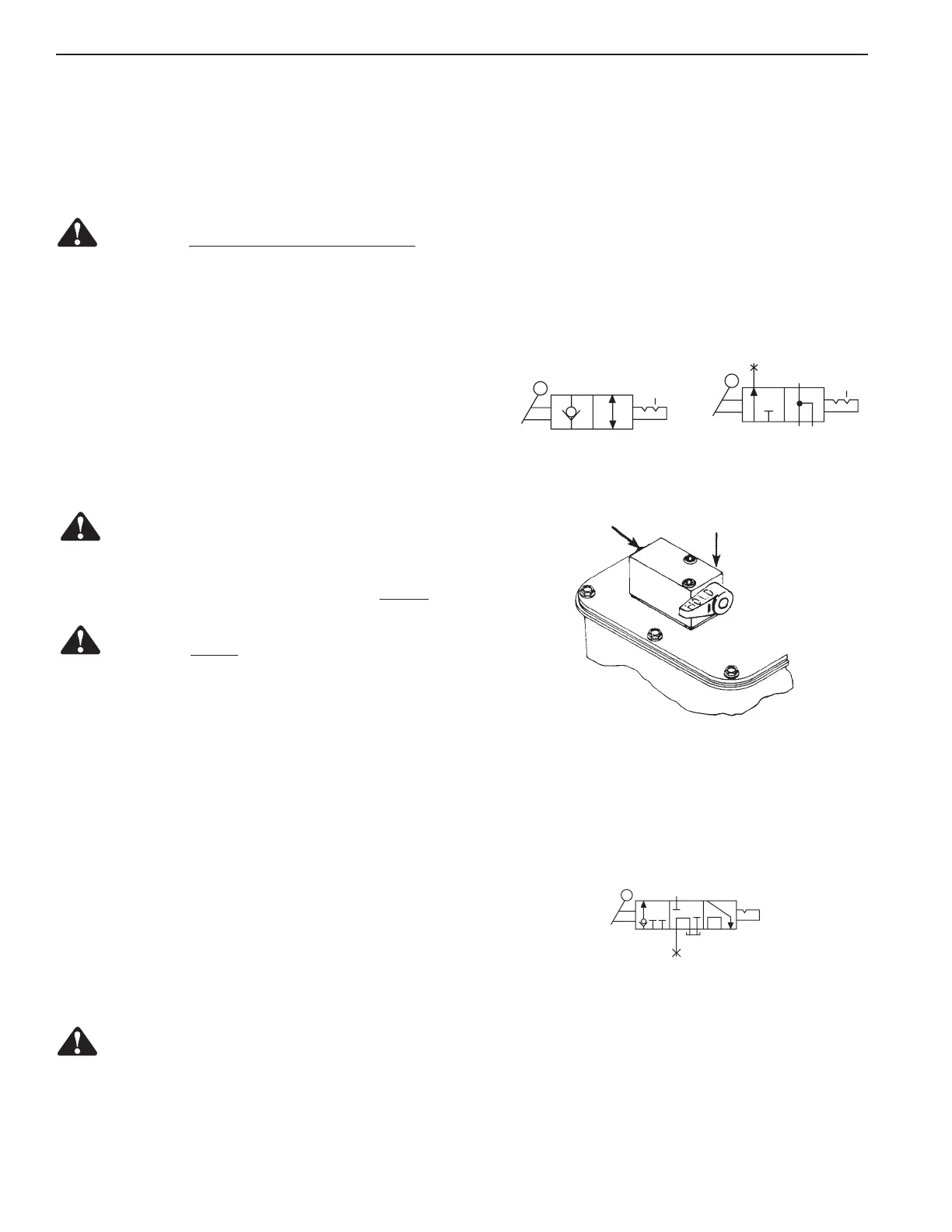

DIRECTIONAL CONTROL VALVE OPTIONS
NOTE: • Some valves return fluid to the reservoir or bladder when the pump stops or when the valve is
shifted. The correct valve must be used, especially when lifting a load.
• "Hold-to-run" controls are recommended and must be used with correct valves for certain
applications, especially when lifting a load.
• Not all valves fit on all pumps.
DANGER: When lifting or lo
wering a load
, the load must be under operator control at all times and
others must be clear of the load. Use blocking and cribbing to guard against a falling load.
Do not drop the load. The use of a load lowering or metering valve is recommended in
addition to the pump directional control valve.
2-Position, 2-Way Manual Valve Used With Single-acting Cylinder
FOR PE17 SERIES (9517)
FOR PE30, PE46, AND
FOR PR10 SERIES (9561) PE55 SERIES (9584)
Figure 1
3-Position, 3-Way Manual Valve Used With
Single-acting Cylinders
9520
1. To hold pressure, turn the valve control handle
clockwise (CW).
2. Activate the pump unit to advance the cylinder.
3. When the cylinder has advanced to the desired
position, deactivate the switch or remote switch, or turn
the pump unit OFF, or shift the valve to the center
position. The cylinder will HOLD pressure.
4. To retract the cylinder, turn the valve control handle
counterclockwise (CCW) slowly.
1. To HOLD pressure, turn the valve control handle
counterclockwise (CCW).
2. Activate the pump unit to advance the cylinder.
3. When the cylinder has advanced to the desired position,
deactivate the switch or remote switch, or turn the pump unit
OFF. The cylinder will HOLD pressure.
4. To retract the cylinder, turn the valve control handle
clockwise (CW) slowly.
WARNING: Valve 9517 and 9561 work the same as a
manifold if the pump is operated with the valve in the
RELEASE position. In this position, the cylinder will
advance when the pump is running and
retract when the
pump is stopped.
DANGER: Never
use valve 9517 and 9561 in the
RELEASE position when lifting a load!
PT
A
Gauge
PT
A
Gauge
WARNING: When the valve is in the ADVANCE position, the cylinder will advance when the pump is
running, and hold when the pump is stopped or the valve is in the CENTER position. The cylinder can be
retracted by moving the valve to the RETRACT position.
2-position, 2-way
Manual Valve
Port
Gauge
Gauge
