Repair Procedures continued
See Figure 6. Remove the piston plug from the 5.
end of the piston by screwing an M6 or M8 screw
(depending on the wrench model) into the hole in
the back of the piston plug, and pulling to remove.
See Figure 7. Remove the shoulder screw from 6.
inside the piston.
See Figure 8. Remove the guard, unscrewing the 7.
guard screws.

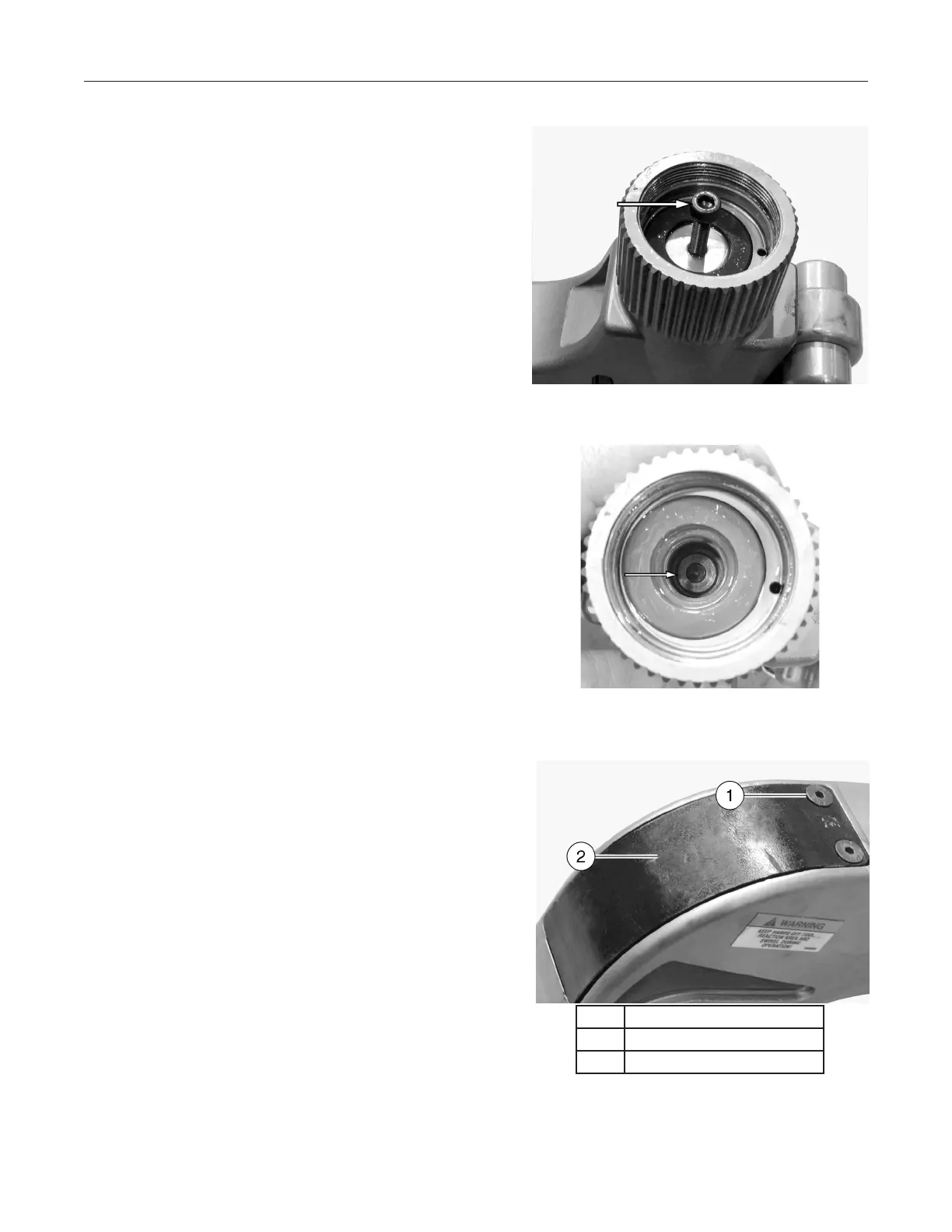

Figure 6. Piston Plug Removal
Figure 7. Shoulder Screw Removal
Item Description
1 Guard screw
2 Guard
Figure 8. Guard Removal
To Next Page
