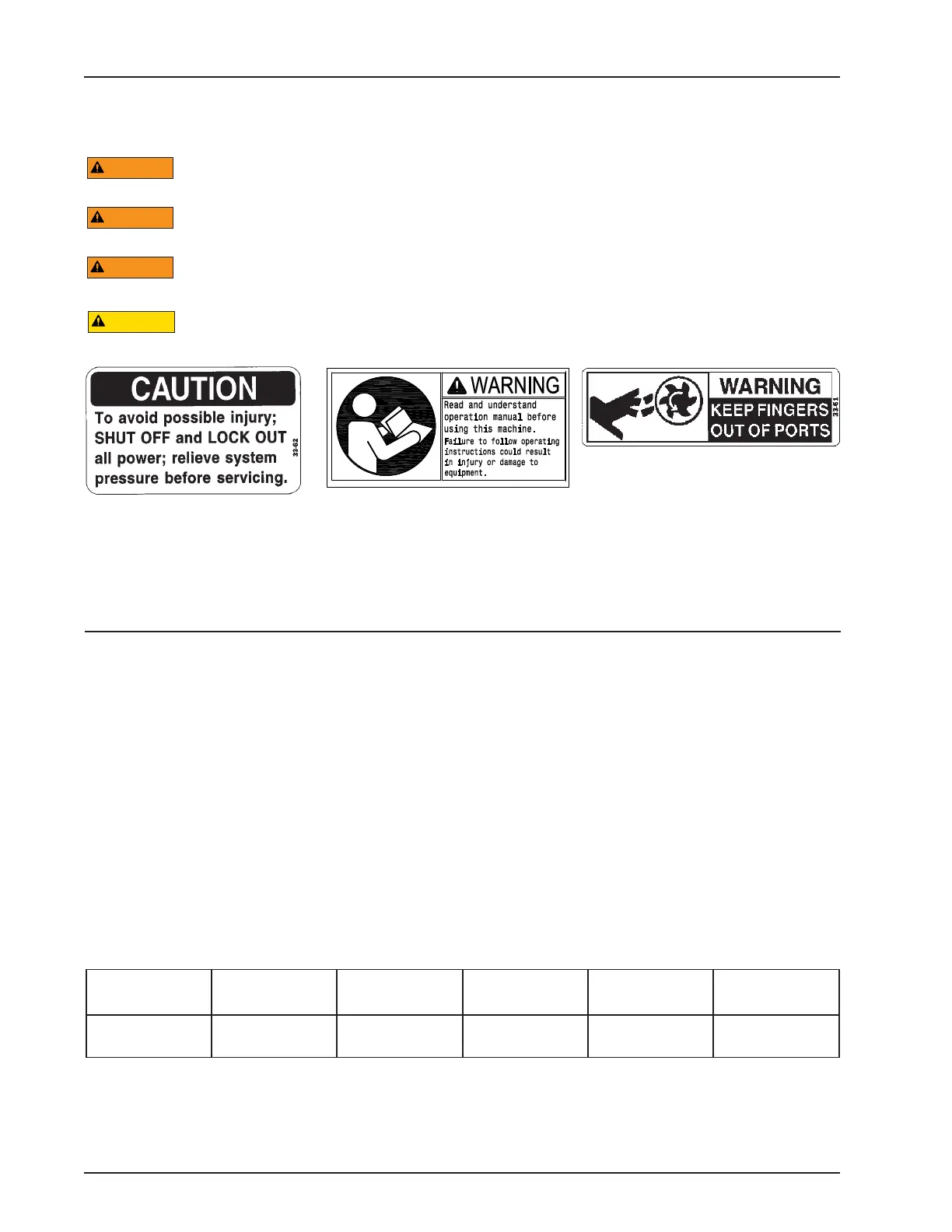

SPXFLOW Colloid Mill - Warnings and Replacement Labels; Introduction;Specifications; Specifications

95-03028
09/20196
Waukesha Cherry-Burrell
®
Brand Colloid MillIntroduction/Specications
Replacement Label 33-62
Replacement label 33-61
Warnings and Replacement Labels
The Waukesha Cherry-Burrell brand Colloid Mill produces controlled, highly sheared, uniform dispersions and
stable emulsions made up of uniform globules of moderate neness.
A serrated conical stator and a serrated rotating cone make up the emulsifying head.
Operating clearance can be adjusted in .001-inch increments between .010 and .240 inches.
Capacities range from 6.7 to 33.3 gpm (25 to 126 l/m).
Viscosity range is limited only by the maximum 150 psi feed pressure.
Specications
Model
Nominal
Speed Pressure
Nominal
Capacity To
Inlet
Outlet
Nominal
Temp. Range
CM 3600 RPM to 150 psi
(10 bar)
6.7 to 33.3 GPM
(25 to 126 l/m)
2” San. IMDA to 200° (93° C)
WARNING
Stop Machinery to Clean, Service or Repair. To avoid serious injury, do not install or service the
mill unless all power is o and locked out.
WARNING
To avoid electrocution, ALL electrical should be done by a registered Electrician, following
Industry Safety Standards. All power must be OFF and LOCKED OUT.
WARNING
To avoid possible serious injury, shut o and drain product from mill prior to disconnecting the
piping.
CAUTION
Mill parts have sharp edges. To avoid a cutting injury, wear gloves and handle parts carefully.
Replacement Label 121694+
Introduction/Specications
