Waukesha Cherry-Burrell
®
Brand Colloid MillMaintenance
Maintenance
4. Remove the cover capscrews and pull o the cover, then
remove the O-ring.
5. Pull the stator o the studs and remove the O-ring.
In some instances the unit can be cleaned by ushing water through it
while the mill is in operation. However, some of the water will remain
in the bottom of the cone-shaped stator. If this is not acceptable,
dismantle the unit for cleaning.
1. Remove the “T” handles.
2. Back out the knurled lock screw.
CAUTION
Handle all parts carefully to avoid nicks and
scratches which will be detrimental to the operation
of the mill.
Cleaning
O-ring
Adjusting ring

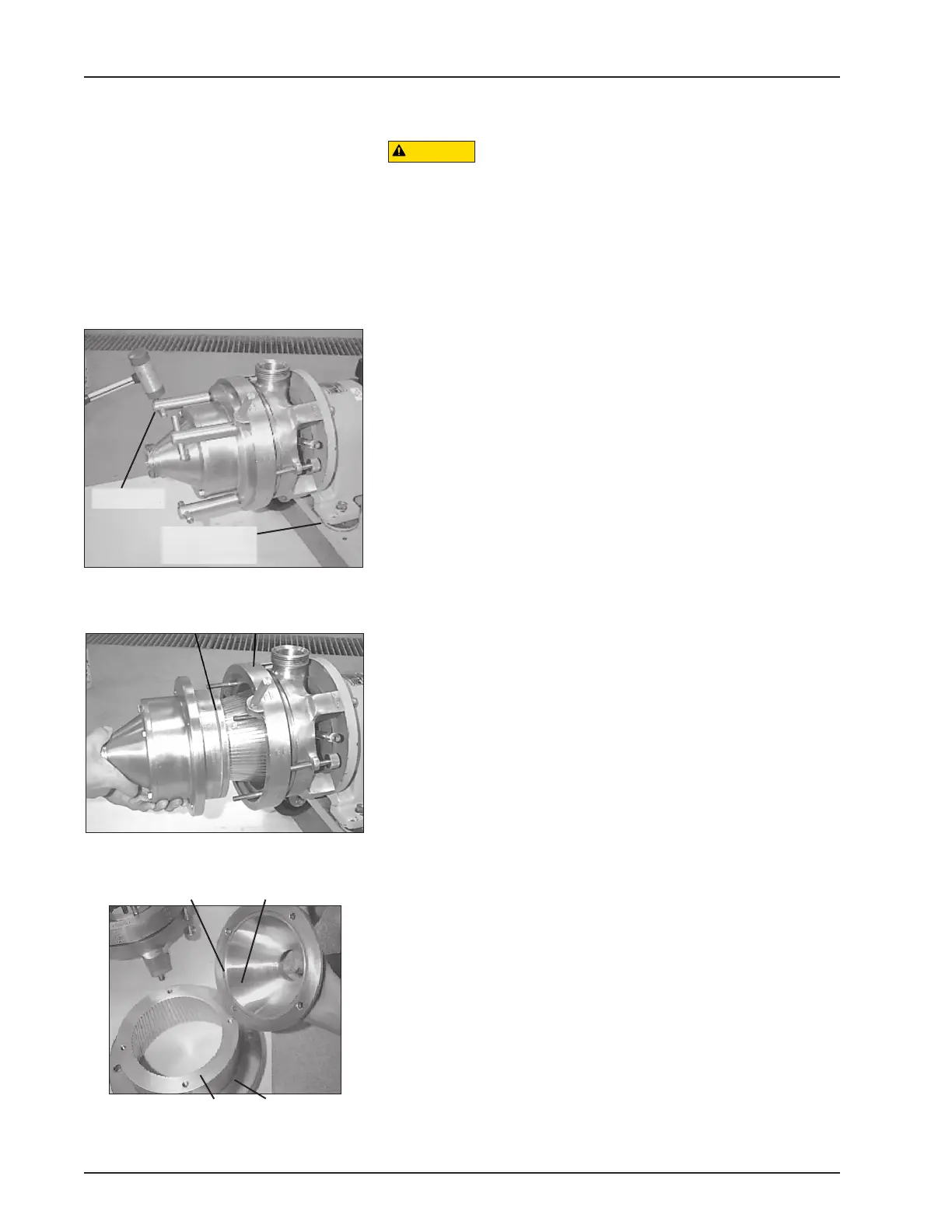

Figure 8
Cover
Stator O-ring
O-ring
Figure 9
Figure 7
T-handle
Knurled lock
screw
Flushing
Disassembly
3. Pull the cover/stator assembly outward.
NOTE: You will experience some resistance to the stator
movement due to friction from the O-ring.
As soon as the O-ring is free, the cover and stator assembly can
be easily removed. It is not necessary to remove the adjusting
ring. Disassembly to this point allows complete drainage.
NOTE: To prevent wearing of the faces between the adjusting
ring and stator, lubricate these surfaces occasionally with an
approved silicone-type lubricant.
