English BB7 and BB5 Installation & Set-Up Guide
12 955-310589-000 Rev. B
PAD REPLACEMENT (BB7 ONLY)
A pad should be replaced when its total thickness (backing plate and friction material) is less than 3mm.
1. REMOVE THE OLD PADS
Back both adjuster knobs all the way out (counterclockwise,) then squeeze the pad tabs together and pull both pads straight out
of the caliper.

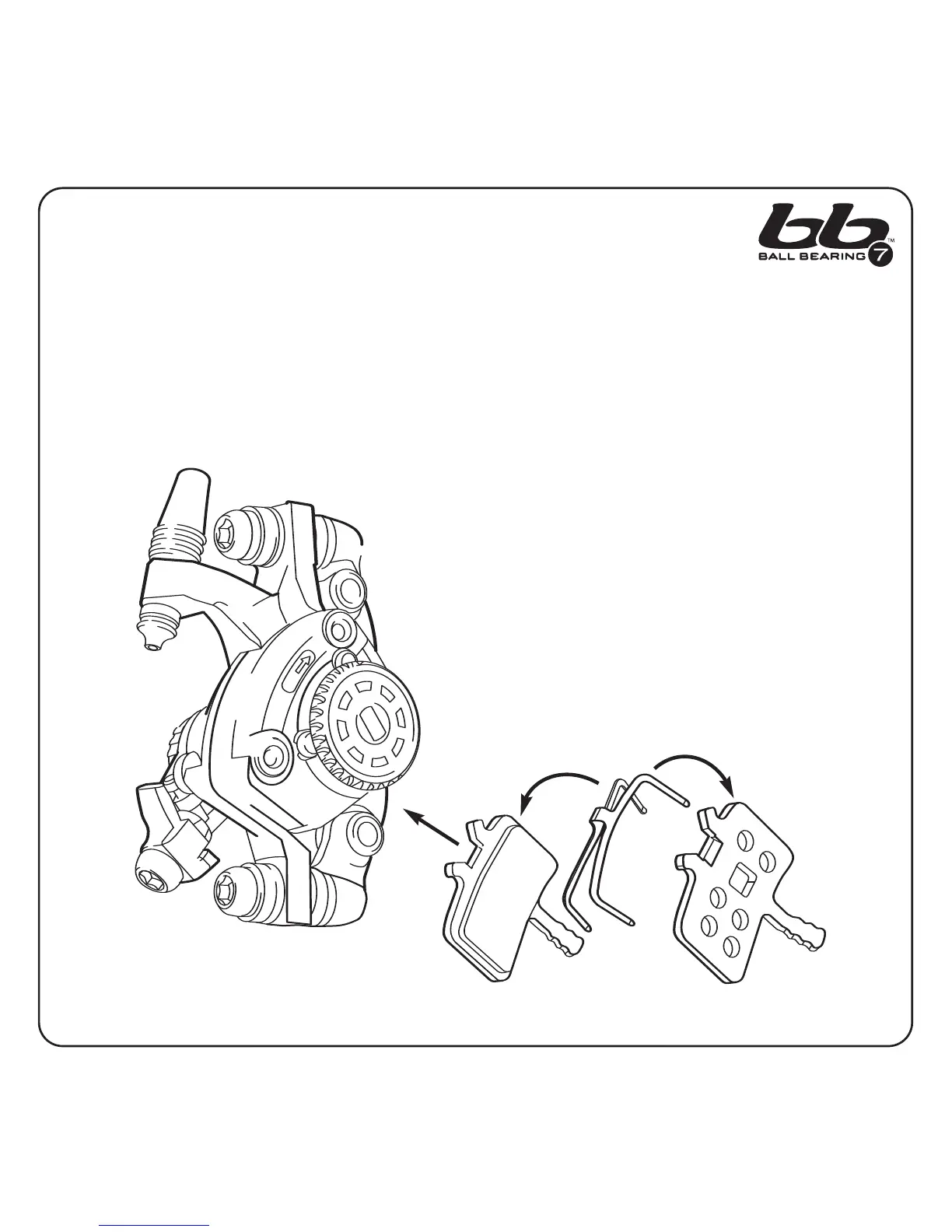

2. INSTALL THE NEW PADS AND SPRING
Assemble the spring between the new left and right pads. Align the spring to the pad as shown.
Squeeze the brake pad/spring clip assembly together then press firmly into the caliper until it “clicks” into place.
The pad marked "R" goes on the spoke side of the brake.
The spring clip sandwiches
between the pads
Inner
(spoke side)
