9SRAM Corporation July 2005
BB7 and BB5 Installation & Set-Up Guide English

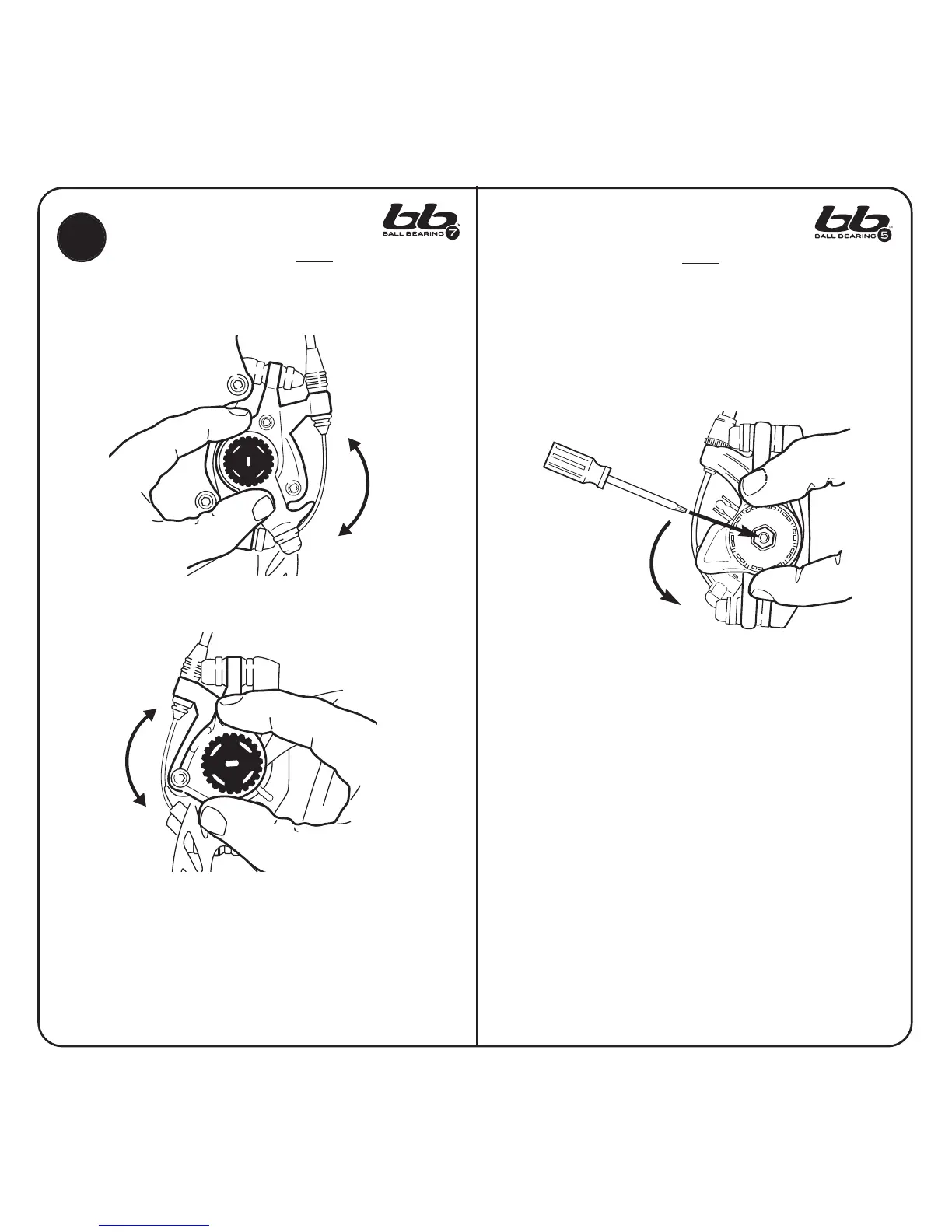

ADJUST THE PADS (BB7 ONLY)
Turn both pad adjustment knobs counterclockwise until
desired pad/rotor clearance is achieved (approx. 2 or 3
clicks each).
IMPORTANT:
Only use the barrel adjuster at the brake lever to adjust for
cable slack. For lever throw, use the outboard adjustment
knob. For brake pad wear adjustment, use both the inboard
AND outboard knobs.
6
Inboard pad adjustment knob
Outboard pad adjustment knob
ADJUST THE PADS (BB5 ONLY)
Back the adjustment knob off (counterclockwise) until the
rotor spins freely. Now you can dial the pad in or out until
you find the brake action you prefer (make sure, of course,
that there’s no drag on the rotor). If you can’t seem to get
the feel you like, or the rotor is dragging, repeat step 5.
T-25 TORX
®
To Next Page
