BB7 and BB5 Installation & Set-Up Guide English
5SRAM Corporation July 2005

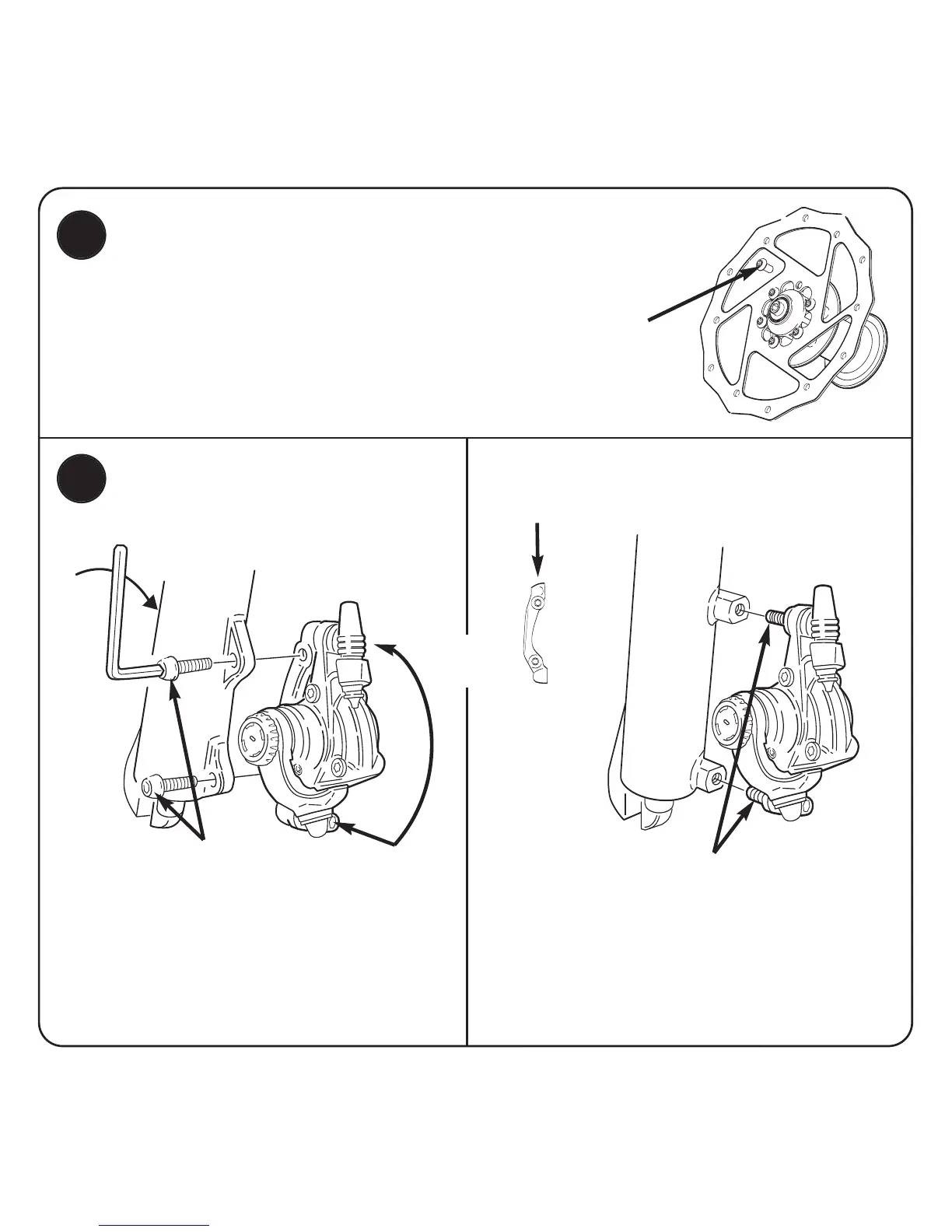

INSTALL ROTOR
Mount the rotor to the hub using the supplied T-25 TORX
®
bolts and tighten to the specified
torque. Avid logo MUST face out. Install the wheel into the fork or frame.
WARNING:
IF YOU ARE USING A HUB WITH A REMOVABLE SHIM, YOU MAY NEED LONGER ROTOR MOUNTING
BOLTS
. CONTACT THE HUB MANUFACTURER FOR THE RECOMMENDED BOLTS.
MOUNT FRONT CALIPER
Mount the front caliper to the fork.
2
1
TORQUE TO:
6.2 Nm (55 in-lb)
TORQUE TO:
9-10 Nm (80-90 in-lb)
Remove...
OR
I.S. MOUNT
Loosen the CPS bolts, then bolt the caliper to the mounting
tabs. Tighten the mounting bolts to the specified torque.
Check that the caliper moves freely on the CPS hardware.
POST MOUNT
Remove the mounting bracket but leave the CPS bolts and
washer stacks intact. Bolt the caliper directly to the fork. Snug
the bolts, then back them out 1/8th to 1/4th turn. Check that
the caliper moves freely on the CPS hardware.
...then mount direct
Snug, then back off
1/8th to 1/4th turn
Loosen before
mounting
To Next Page
