BB7 and BB5 Installation & Set-Up Guide English
3SRAM Corporation July 2005
CONGRATULATIONS!
You have selected the best mechanical disc brakes your money can buy! This manual contains important information for
installing, setting up and adjusting your new brakes. To ensure that your Avid brakes perform properly, we recommend that you
have them installed by a qualified bicycle mechanic. We also urge you to follow all of our recommendations to help make your
riding experience safe, enjoyable and trouble free.
First, here is some information to get you started:

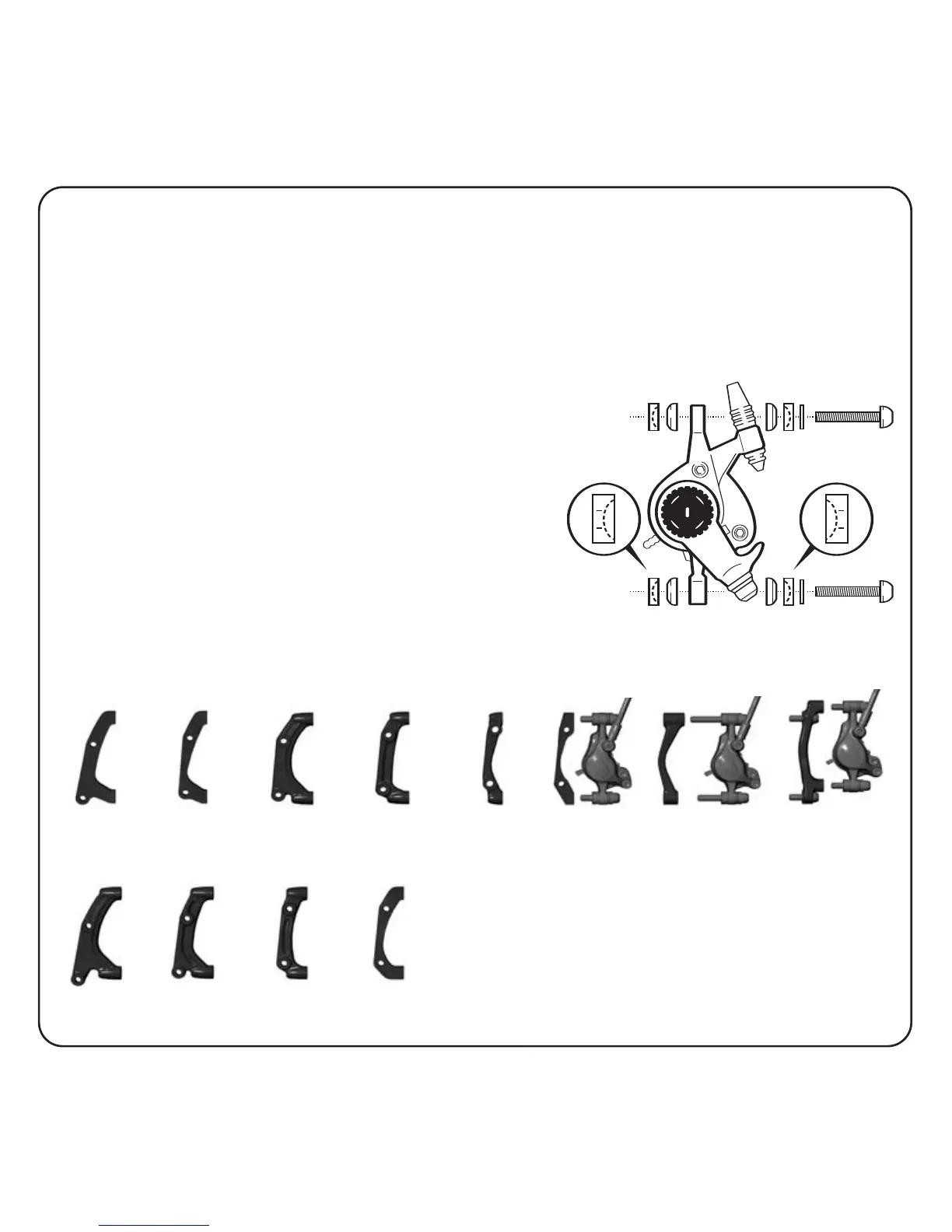

TRI-ALIGN CALIPER POSITIONING SYSTEM
Avid disc brakes use a unique alignment system called Caliper Positioning
System (CPS). These stacks of concave and convex washers allow the
caliper to be perfectly aligned with the rotor, regardless of imperfections in
the mounting tabs on the fork or frame, giving you full, square pad contact.
TOOLS NEEDED
• 2.5 and 5mm hex wrenches
• T-25 TORX® wrench
• Cable cutters
• Adjustable torque wrench: 2.8-10Nm (25-90 in-lb) range
• Safety Glasses
MAKE SURE YOU HAVE THE RIGHT BRACKETS
fronts:
rears:
CPS
Hardware
CPS Bolt
115-373202-500
203 Rear Forged
115-372202-600
185 Rear Forged
115-376202-200
160 Rear Forged
115-376402-600
160 Rear Extruded
115-373602-300
203 Front QR20
115-373502-600
203 Front Boxxer
11.5373.102.800
203 Front Forged
115-372102-900
185 Front Forged
11.5376.102.500
160 Front Forged
11.5376.302.900
160 Front Extruded
11.5372.302.300
185 Front
Post Mount
11.5373.302.200
203 Front
Post Mount
