BB7 and BB5 Installation & Set-Up Guide English
13SRAM Corporation July 2005
PAD REPLACEMENT (BB5 ONLY)
A pad should be replaced when its total thickness (backing plate and friction material) is less than 3mm.
1. REMOVE THE OLD PADS
Back the inner adjustment knob all the way out (counterclockwise). Pull the pad spreader clip from between the pads, then pull
the pads out of the caliper one at a time.
2. INSTALL THE NEW PADS AND SPREADER
Insert the new pads one at a time into the caliper.
V
ERY IMPORTANT: MAKE SURE YOU PLACE THE BLACK PAD ON THE INNER SIDE (TOWARDS THE WHEEL) AND THE BLUE PAD ON THE OUTSIDE
(AWAY FROM THE WHEEL.) ONCE THE PADS ARE IN THE CALIPER YOU CAN SLIDE THE SPREADER CLIP BACK INTO POSITION – BETWEEN THE PADS.

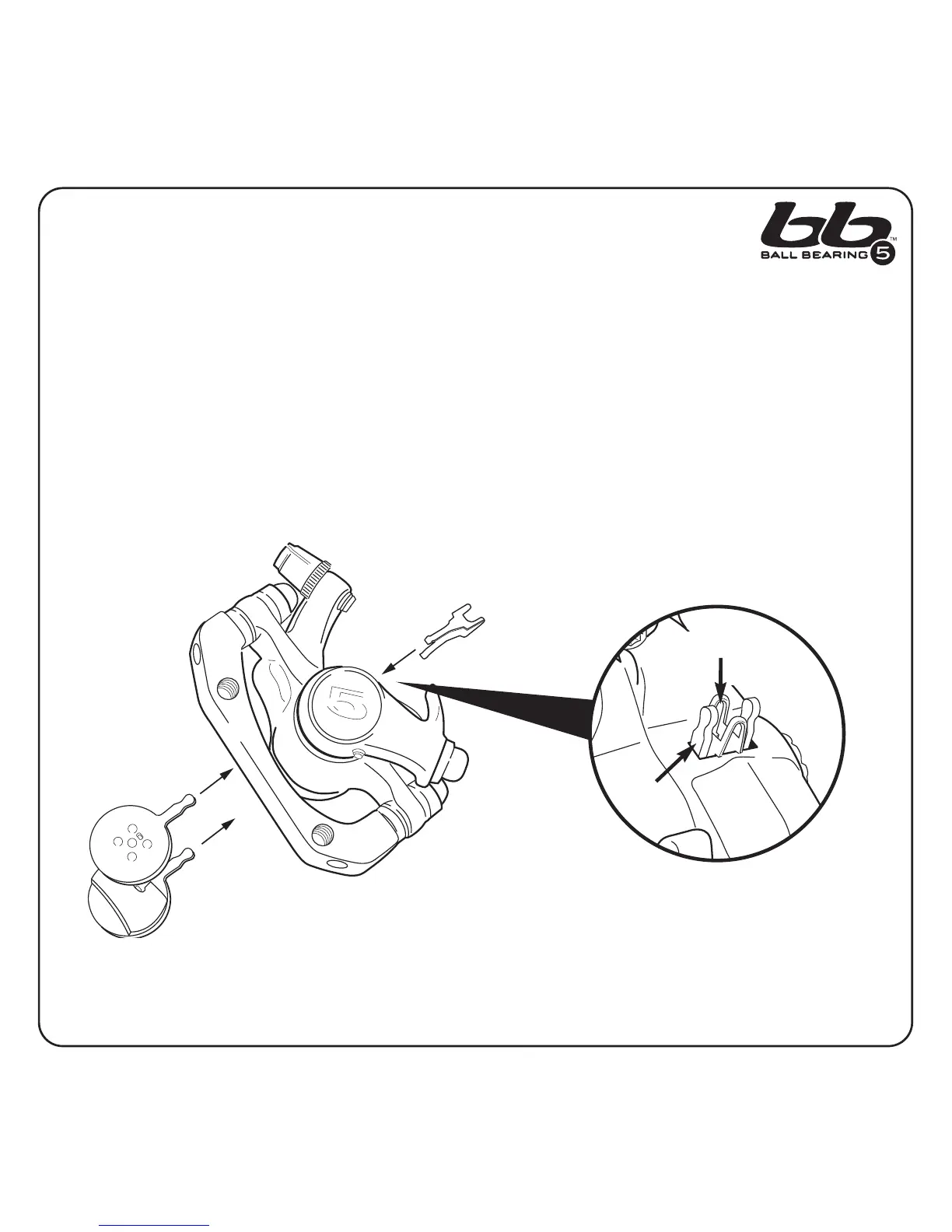

Pad spreader clip in place
Black pad “Left”
Blue pad “Right”
Pad spreader
Pads
