elixir 5 brake lever overhaul
18

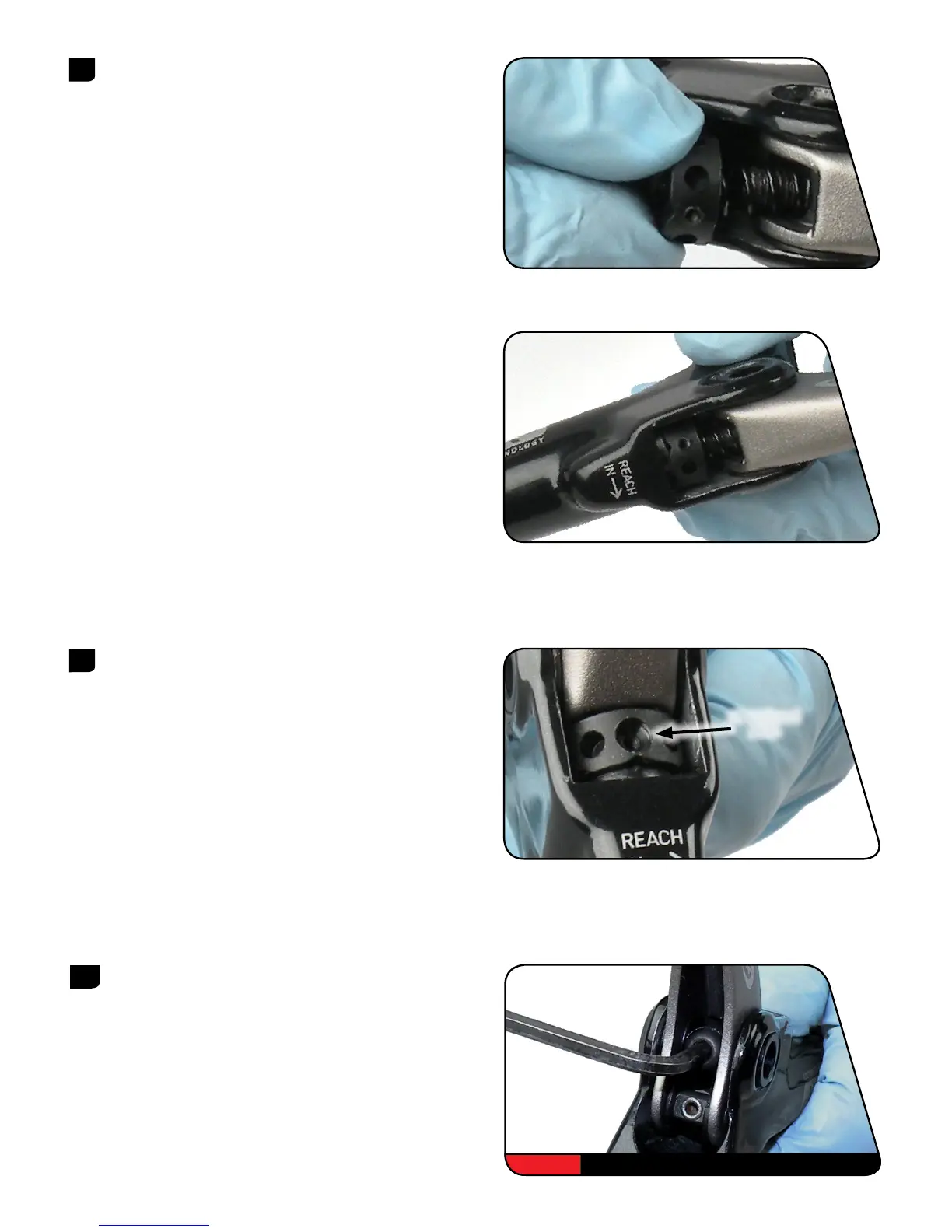

Place the flat side of the reach adjust knob onto the spring,
compress the spring, and slide the reach adjust knob into place
in the lever body as you slowly release the lever blade.
19
Rotate the reach adjust knob so that the chamfered hole is
visible.
20
Use a 3 mm hex to turn the lever bolt clockwise until it is snug.
Then turn the bolt counter-clockwise 1/4 turn until the slot in
the bolt is aligned with the chamfered hole in the reach adjust
knob.
chamfered
hole
3 mm
