14
elixir 5 brake lever overhaul
21

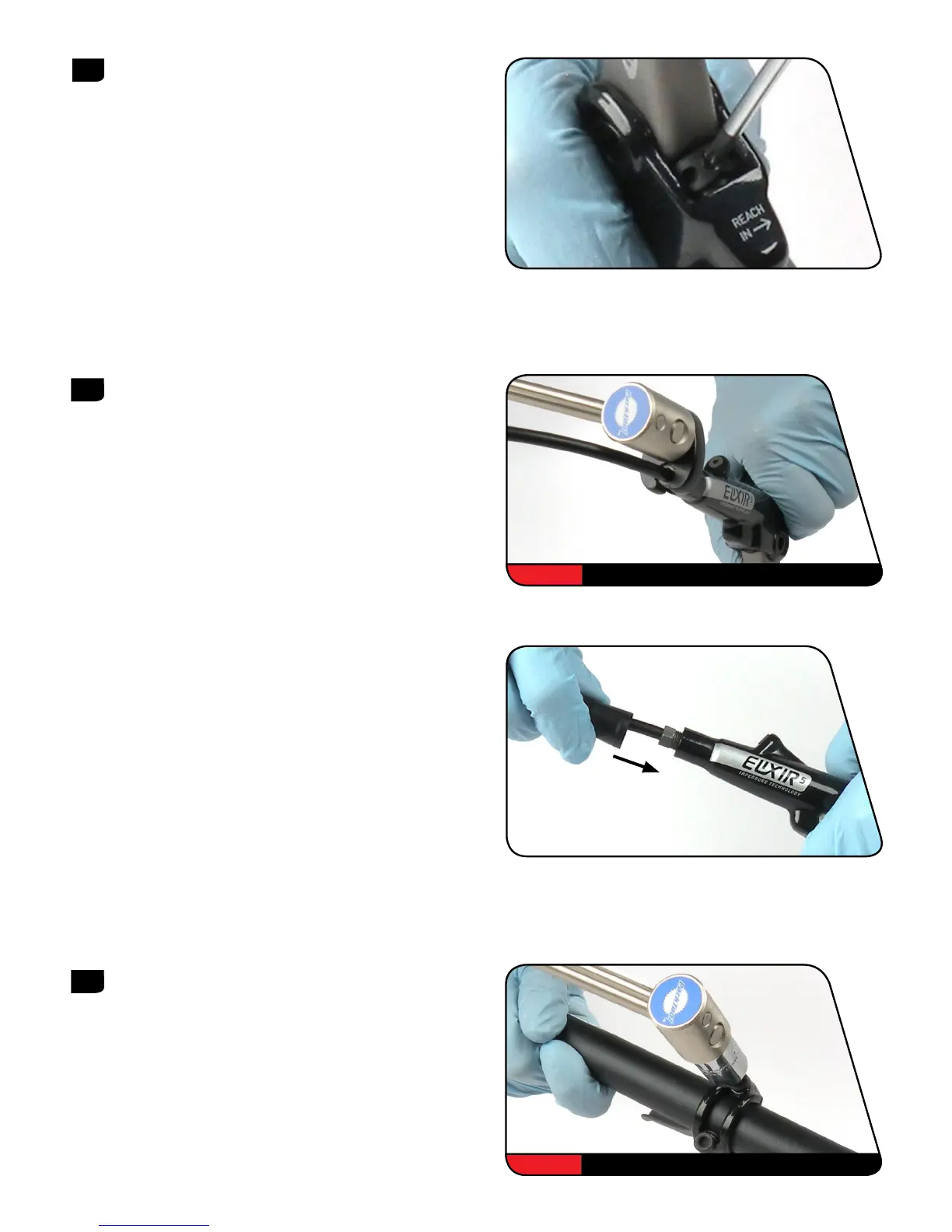

Use a small Phillips head screwdriver to re-install the screw
for the reach adjust knob into the chamfered hole and tighten
until it is snug.
If the screw does not thread into the knob, check that
the chamfered hole and the slot in the bolt are aligned.
22
Thread the compression nut into the lever body by hand. Use
a torque wrench with an 8 mm flare nut crowfoot to tighten
the compression nut to 4.9-5.4 N·m (43-48 in-lb). Slide the
hose boot over the compression nut.
23
Re-install the brake lever onto the handlebar. Arrows on the
clamp must point up. Use a torque wrench with a 4 mm hex
bit socket to re-install the brake clamp bolt and tighten the
top bolt completely to 2.8-3.4 N·m (25-30 in-lb) so there is no
gap. Then tighten the bottom bolt to the same torque.
8 mm
4.9-5.4 N·m (43-48 in-lb)
4 mm 2.8-3.4 N·m (25-30 in-lb)
