SRAM Elixir 5 User Manual

16
elixir 5 brake caliper overhaul
1
Use a 5 mm hex to remove the brake caliper from the fork or
frame and remove the caliper mounting bracket and hardware
from the caliper. Set aside in the correct order (not pictured).
2

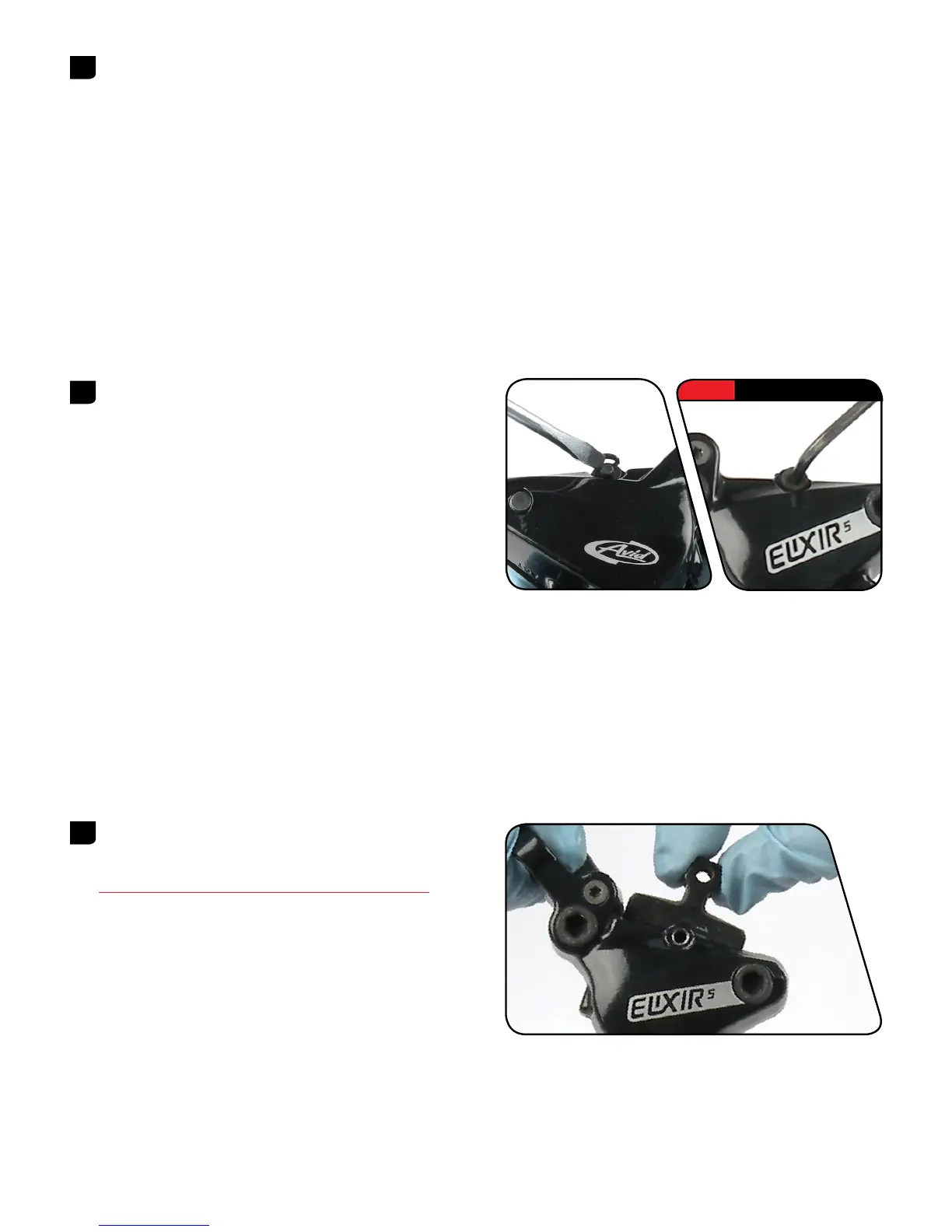

Remove the e-clip from the guide pin groove on top of the
caliper. Use a 2.5 mm hex to remove the guide pin from the
caliper.
3
Pull and remove both brake pads and h-spring.
If the total thickness of the backing plate and pad friction
material is less than 3 mm, the brake pads need to be replaced.
Click here for detailed brake pad removal instructions
2.5 mm
