SRAM i-motion 3 User Manual

i-MOTION 3 · June 2006
14
ASSEMBLY
OF COMPONENTS
ASSEMBLY SHIFTER
24

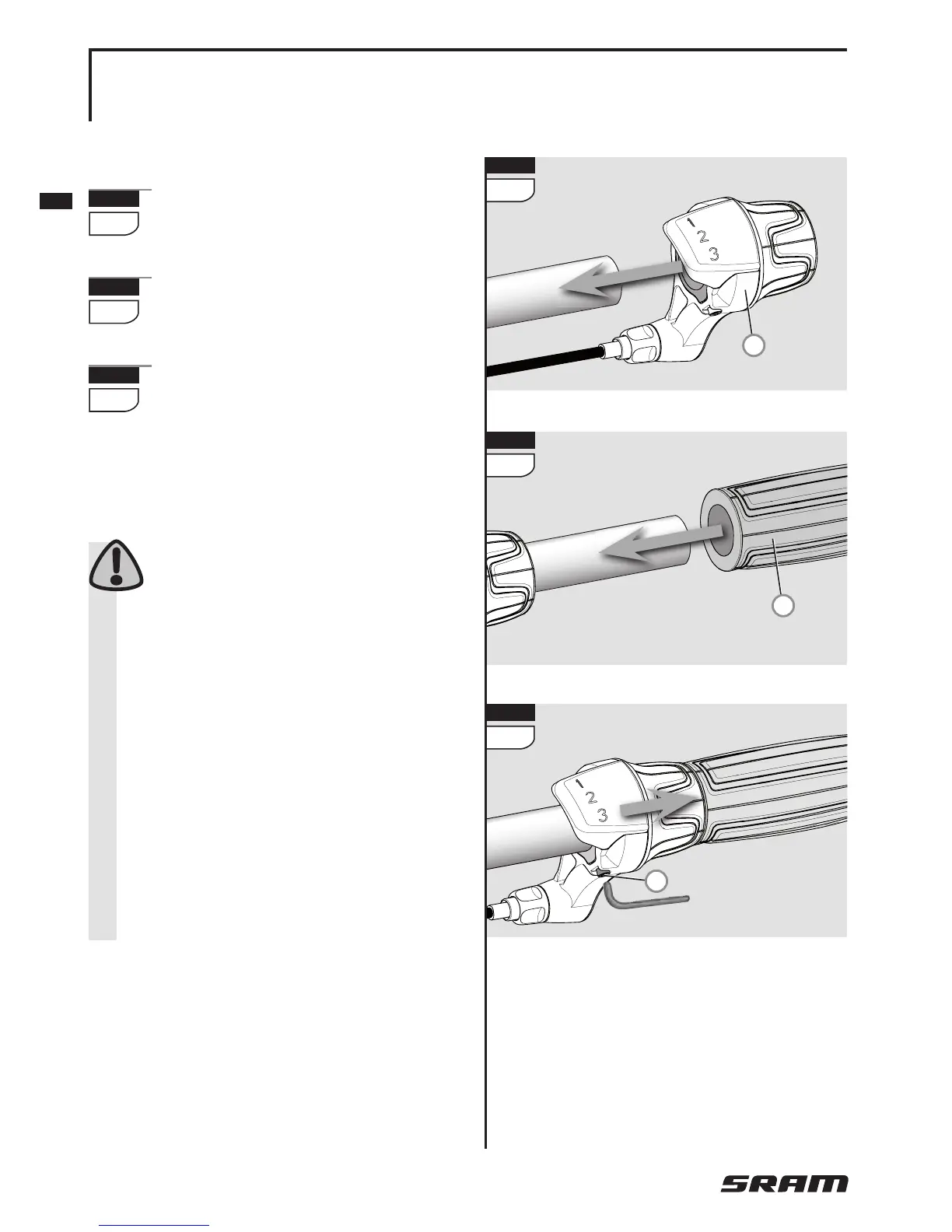

Slide the shifter (1) onto the
handlebar.
25
Slide the handlebar grip (2)
onto the handlebar.
26
Align the shifter on the han-
dlebar grip and position the
shifter according to your needs.
Tighten the clamp bolt (3).
2.5 mm Allen wrench, torque 1.7 Nm
(15 in.lbs.).
Never use lubricants or sol-
vents to install handlebar
grips. Handlebar grips provide an
axial safety function and may not
become separated from the hand-
lebar.
» Make sure that the shifter and
brake lever function properly and
are unobstructed (re-adjust if
needed).
» Never ride without the handlebar
grips. The turning grip of the twist
shifter could become loose. This
can result in severe injury.
3
2
1
24
25
26
2.5 mm
1.7 Nm
(15 in.lbs.)
