SRAM i-motion 3 User Manual

i-MOTION 3 · June 2006
15
E
28
ASSEMBLY
OF COMPONENTS

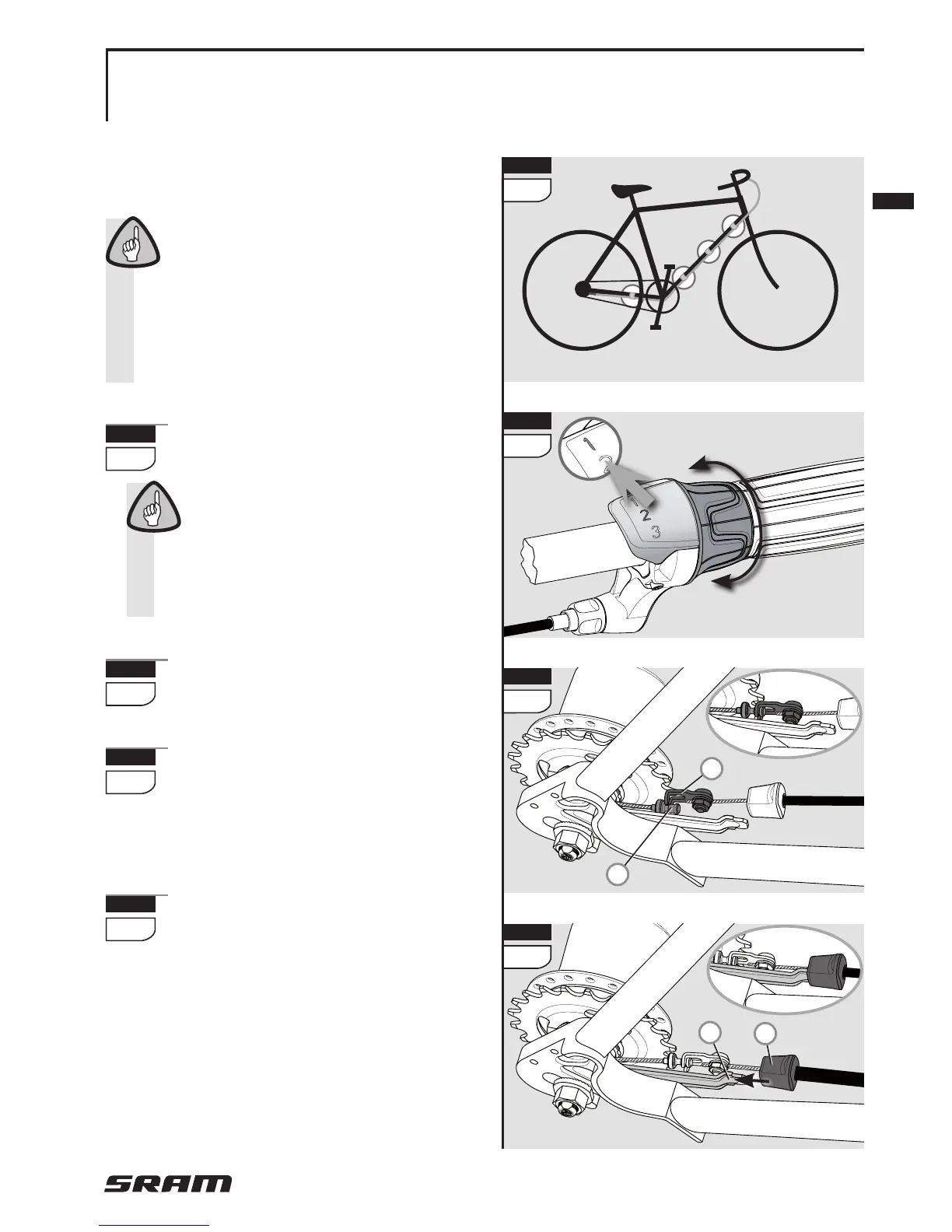

ASSEMBLY SHIFT
CABLE
Make sure that the cable
housing length is sufficient to
allow an extreme turning angle.
» Also consider the influence of
adjustable handlebars and stems
on the cable housing length.
27
Fasten the cable housing on
the frame.
The cable housing must be
movable at the fastening
points.
» Avoid tight bends when install-
ing the shift cable.
28
Make sure that the shifter is
set to the 1st gear.
29
Make the cable connection by
hooking in the link (1) of the
shift cable to the cable nipple (2)
on the hub.
30
Slide the plastic retainer (3)
completely onto the cable stop
bracket (4).
27
1
2
29
3
4
30
