SRAM RSC - Lever Service; Lever Service Parts and Tools; Lever Exploded View

15Lever Service
Lever Service
Parts and Tools Needed for Service
Parts
• Lever Internals Guide™ - RSC/Ultimate
Safety and Protection Supplies
• Safety glasses
• Nitrile gloves
• Oil pan
• Clean, lint-free rag
SRAM Tools
• SRAM Guide Level Internals Assembly Tool
• Needle nose pliers
Common Tools
• Pick with a 90 degree bent tip
• T8, T10, & T25 TORX® wrench
• T8 & T10 TORX® bit socket
• 8 mm flare nut crowfoot wrench
• 2 mm & 4 mm hex wrench
• Torque wrench
Lubricants and Fluids
• Isopropyl alcohol
• Loctite® Threadlocker Blue 242®
• SRAM High-Performance DOT 5.1 fluid. If SRAM fluid is not available,
only use DOT 5.1 or 4 fluid.
• SRAM or AVID DOT grease. If SRAM or AVID DOT grease is not
available only use a DOT compatible grease.

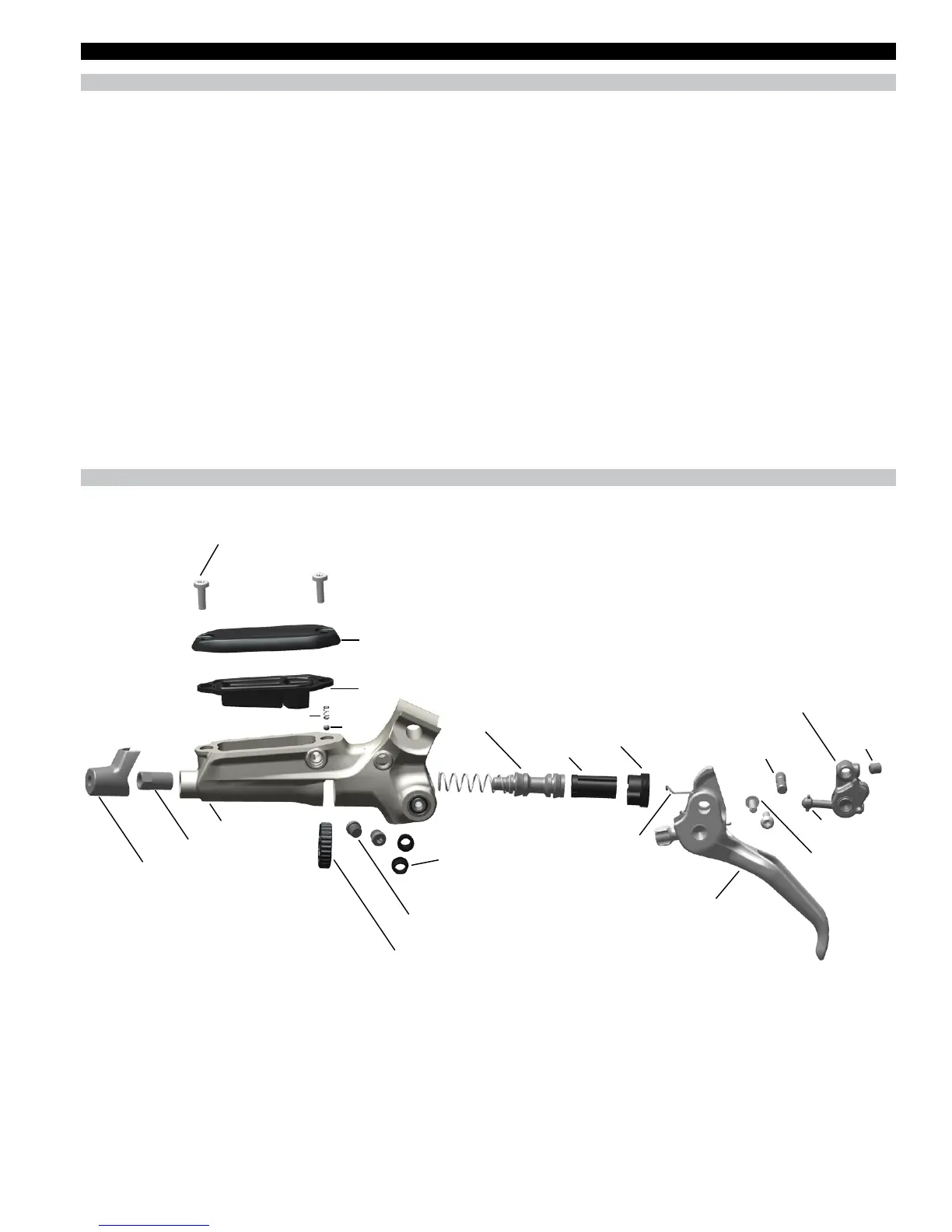

Guide RSC Exploded View
Reservoir cap
Bladder
Detent
ball
Detent spring
Piston assembly
Sleeve
Coupler
Lever body
Lever return spring
Contact adjust knob
Reservoir bolt
Lever blade
SwingLink™
SwingLink bushings
Bleed port screws
SwingLink
push rod
Pivot pin
Pinch
bolt
Lever pivot
bolts
Compression nut
Hose boot
