23Piston Assembly Installation

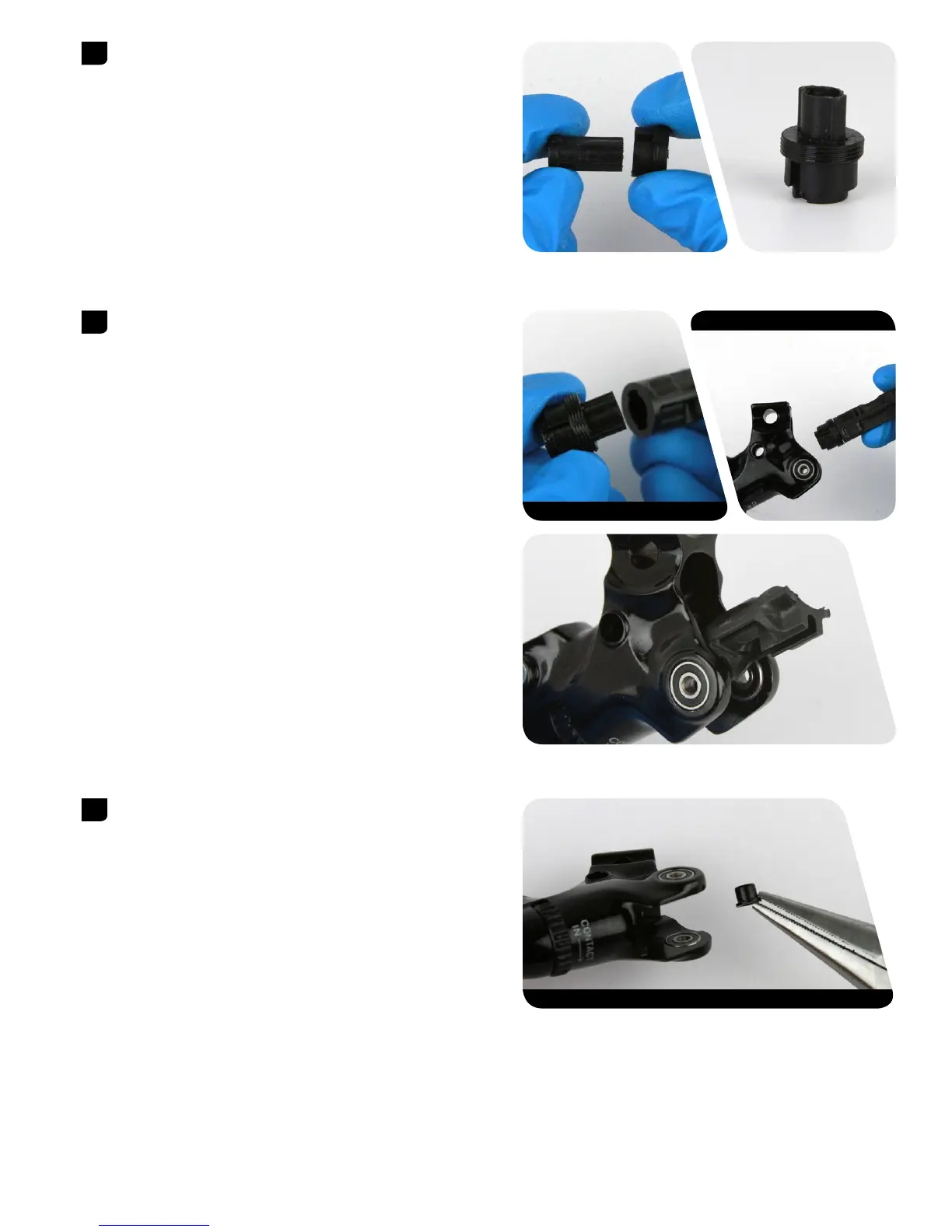

Place the sleeve on the coupler.
The sleeve threads must be oriented away from the base of the
coupler.
Use the SRAM Guide™ Lever Internals Assembly Tool tool to engage
and thread the sleeve and coupler onto the piston assembly.
Engage the slots on the sleeve with the contact adjust knob and
continue to thread the SRAM Guide Lever Internals Assembly Tool tool
in a clockwise rotation until it stops.
Use needle nose pliers to install the SwingLink™ bushings.
If the SwingLink bushings fall out easily, apply a small amount of
grease to the bushings to help hold them in place.
4
5
Guide Lever Internals Assembly Tool 20 mm or 15 mm Thru Axle
T8 TORX wrench QR
6
Needle nose pliers Avid High-Performance 5.1 DOT Fluid 22 mm
